Inside Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

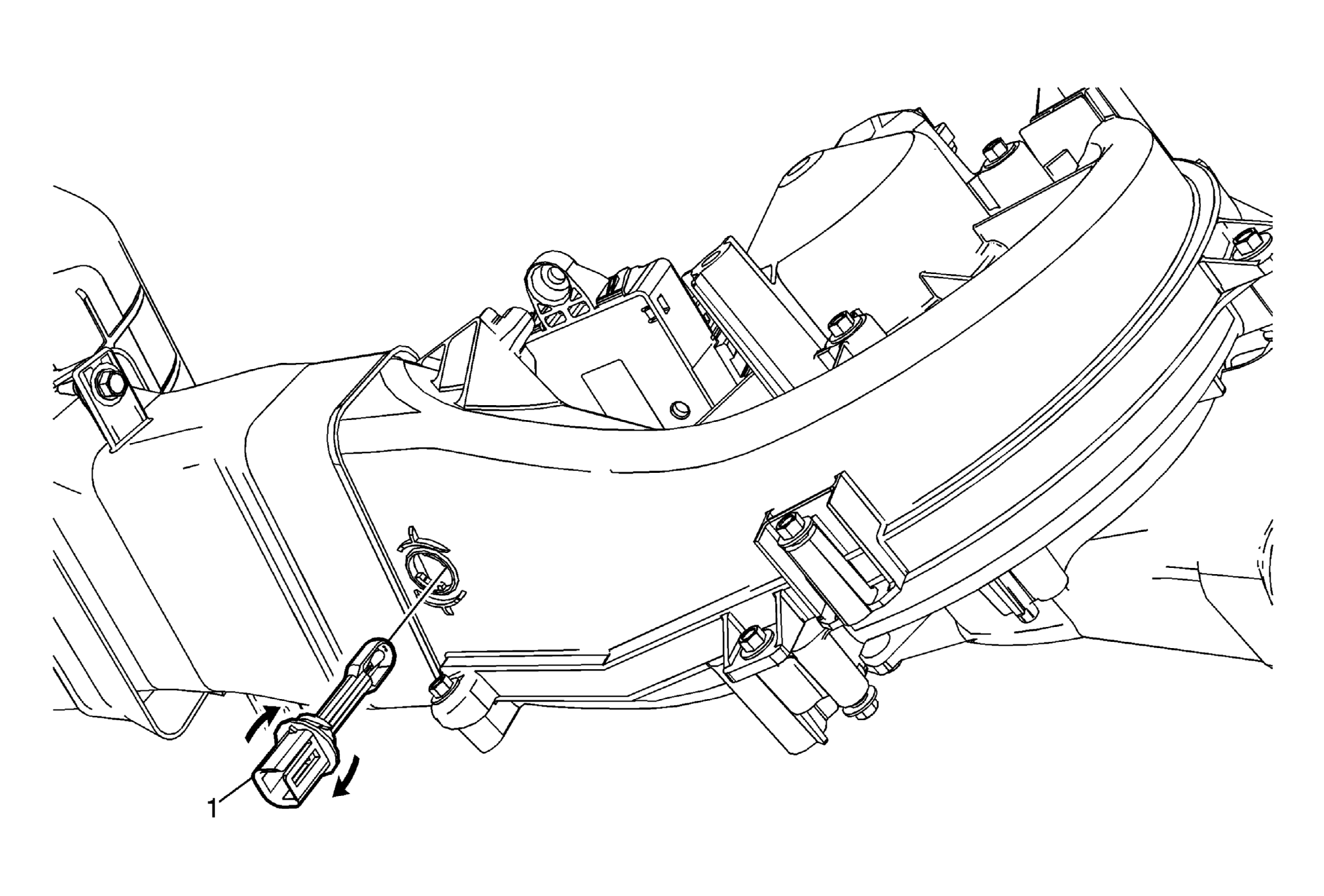

Fig 1: Identifying Inside Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove auxiliary blower motor. Refer to Auxiliary Blower Motor Replacement . Disconnect the inside air temperature sensor electrical connectors.
1	Inside Air Temperature Sensor Procedure Disconnect the duct air temperature sensor electrical connector. Twist and pull the duct air temperature sensor from the HVAC module assembly.

Callout

Component Name

Preliminary Procedure

Remove auxiliary blower motor. Refer to Auxiliary Blower Motor Replacement .
Disconnect the inside air temperature sensor electrical connectors.

Inside Air Temperature Sensor

Procedure

Disconnect the duct air temperature sensor electrical connector.
Twist and pull the duct air temperature sensor from the HVAC module assembly.
