Driver Seat Lumbar Control Switch Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the driver seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement . |
|

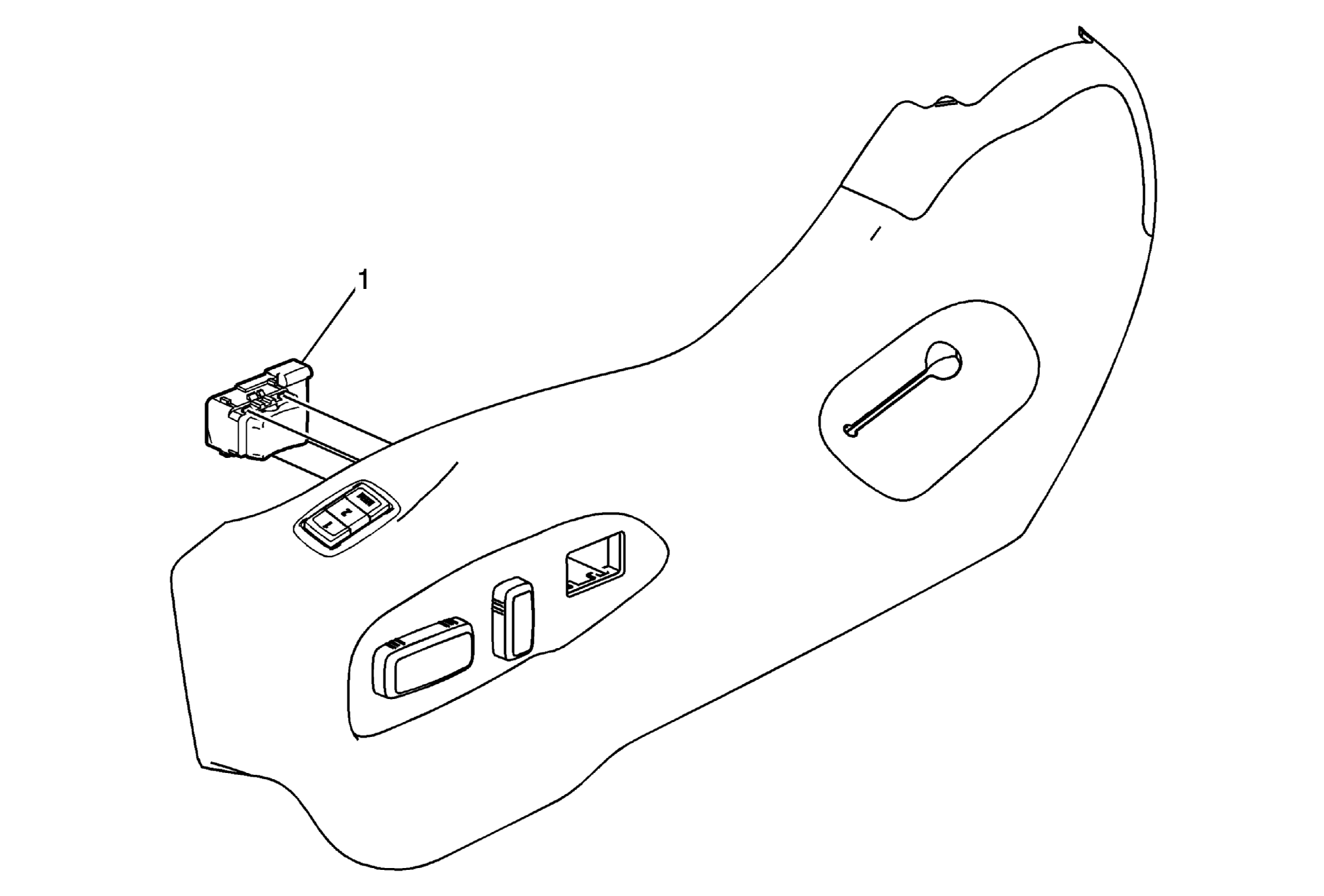

| 1 | Driver Seat Lumbar Switch Tip: Use a flat-bladed tool to release the switch from the finish cover. |
