Sunroof Switch Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

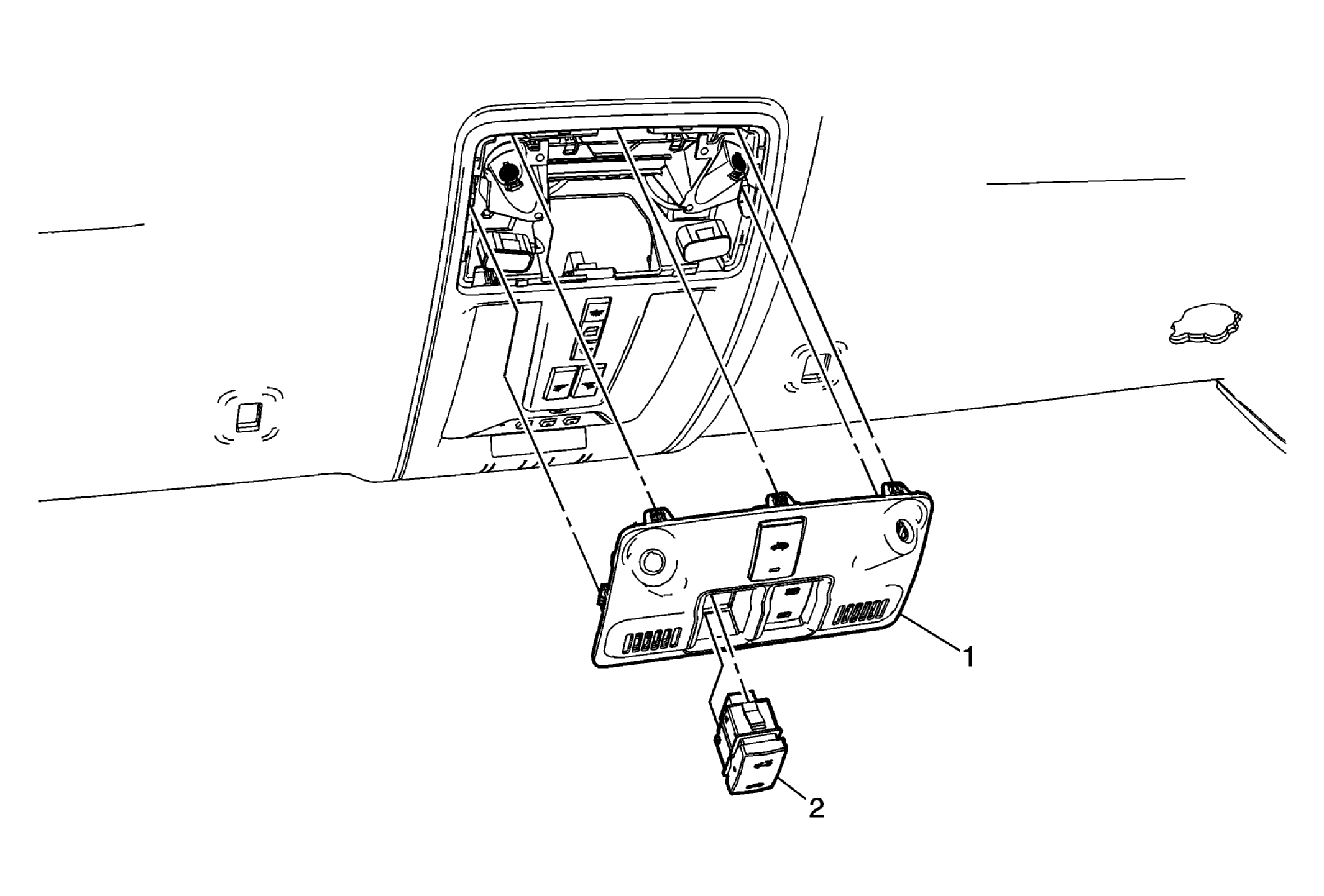

| Callout |
Component Name |
| 1 |
Roof Console Opening Cover
Procedure:
Disconnect the electrical connectors. |
| 2 |
Sunroof Switch
Procedure:
Push in two tabs from the back of the cover and push forward through opening. |
