Dome and Reading Lamp Switch Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

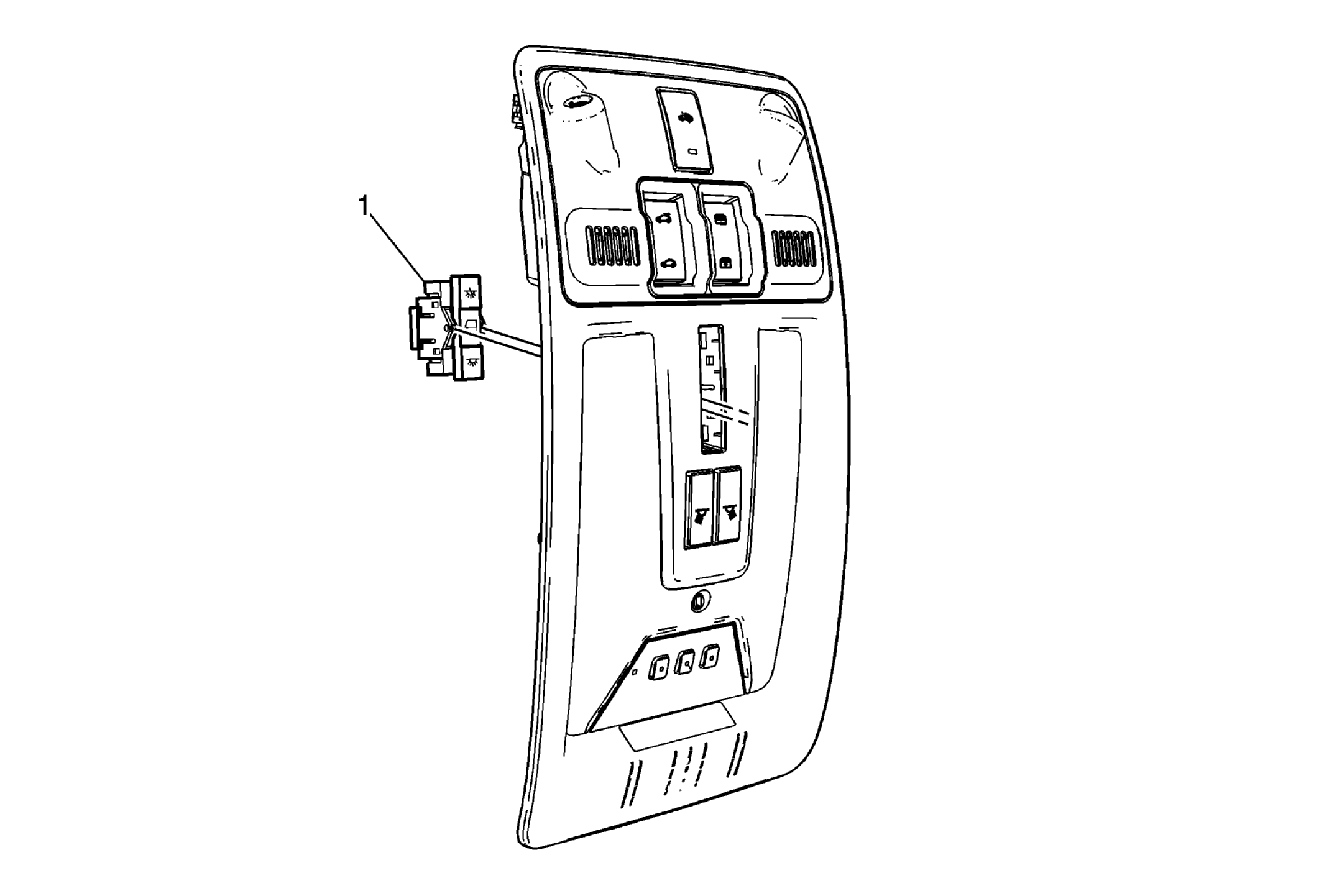

Fig 1: Identifying Dome and Reading Lamp Switch
GM2226962Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the roof console. Refer to Roof Console Replacement .
1 Dome and Reading Lamp Switch
  1. Disconnect the electrical connector.
  2. Release the tabs and remove the switch.
