Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

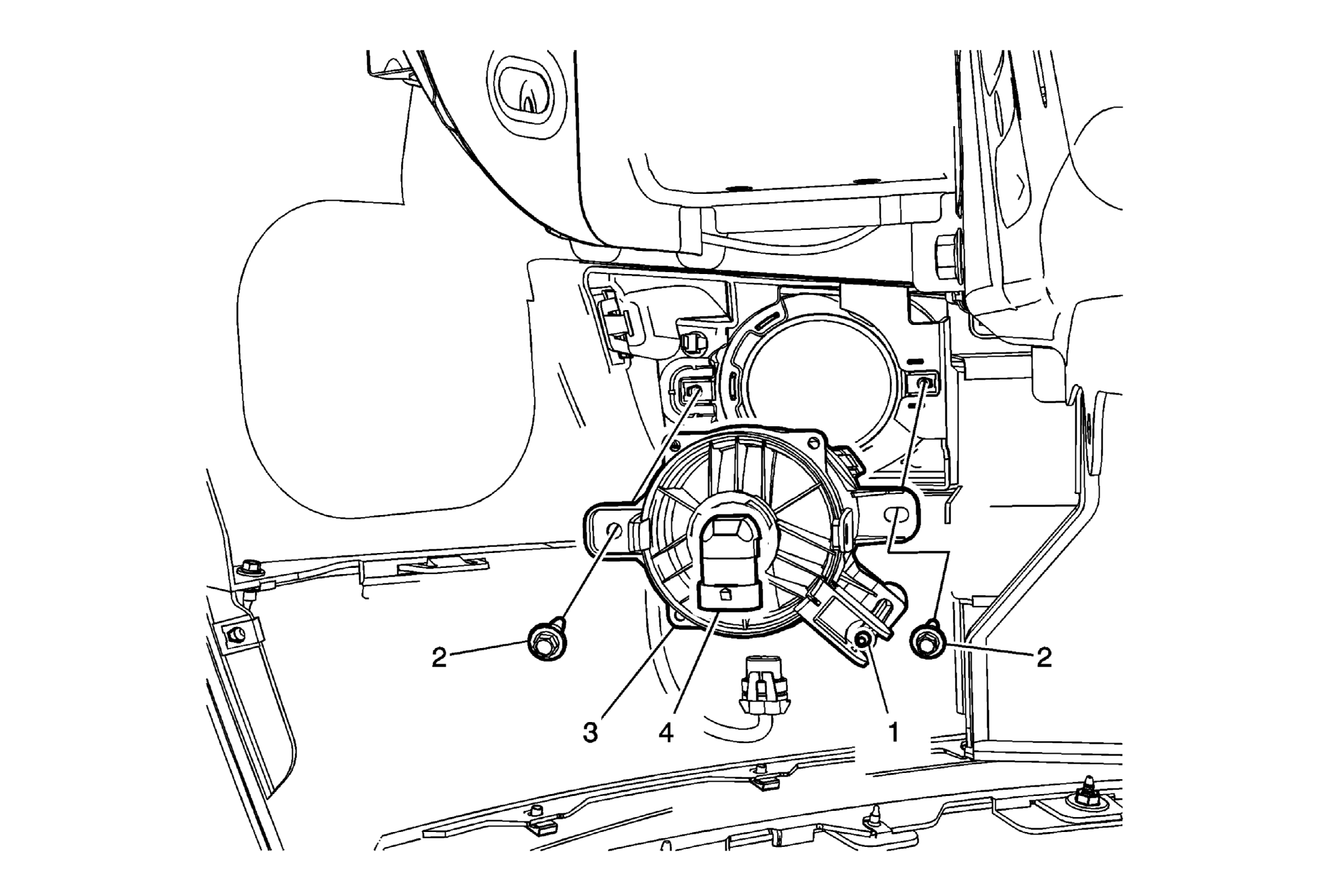

Fig 1: View Of Front Fog Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the fog lamp bulb socket electrical connector.
1	Front Fog Lamp Adjuster Screw
2	Front Fog Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Front Fog Lamp Assembly Procedure: Aim the fog lamps after installation. Refer to Fog Lamp Aiming .
4	Front Fog Lamp Bulb Socket WARNING: Refer to Halogen Bulb Warning . Tip: Turn the bulb socket counterclockwise and remove from the lamp assembly.
