Headlamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

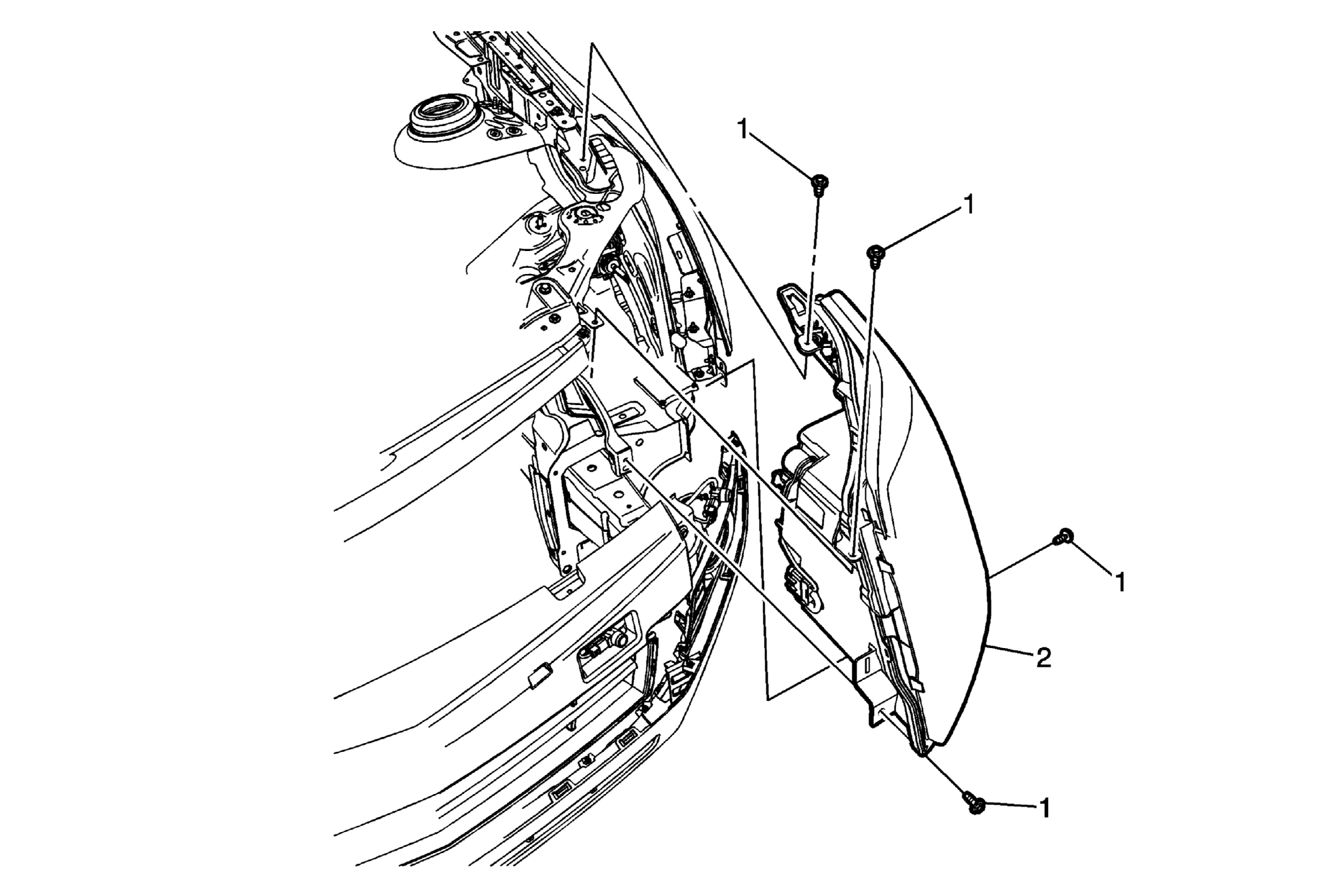

Fig 1: Identifying Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open and support the hood. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the front compartment side sight shields. Refer to Front Compartment Side Sight Shield Replacement . Disconnect the headlamp electrical connector at the base of the headlamp assembly.
1	Headlamp Assembly Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Headlamp Assembly WARNING: Refer to Halogen Bulb Warning . Procedure Remove both accessory bulb covers and transfer. Disconnect the electrical connectors from the headlamp bulbs. Remove the low beam bulb and transfer. Remove the high beam bulb and transfer. Disengage the park turn signal bulb socket and transfer the bulb.

Callout

Component Name

Preliminary Procedure

Open and support the hood.
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the front compartment side sight shields. Refer to Front Compartment Side Sight Shield Replacement .
Disconnect the headlamp electrical connector at the base of the headlamp assembly.

Headlamp Assembly Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 6 N.m (53 lb in)

Headlamp Assembly

WARNING: Refer to Halogen Bulb Warning .

Procedure

Remove both accessory bulb covers and transfer.
Disconnect the electrical connectors from the headlamp bulbs.
Remove the low beam bulb and transfer.
Remove the high beam bulb and transfer.
Disengage the park turn signal bulb socket and transfer the bulb.
