Headlamp Switch Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

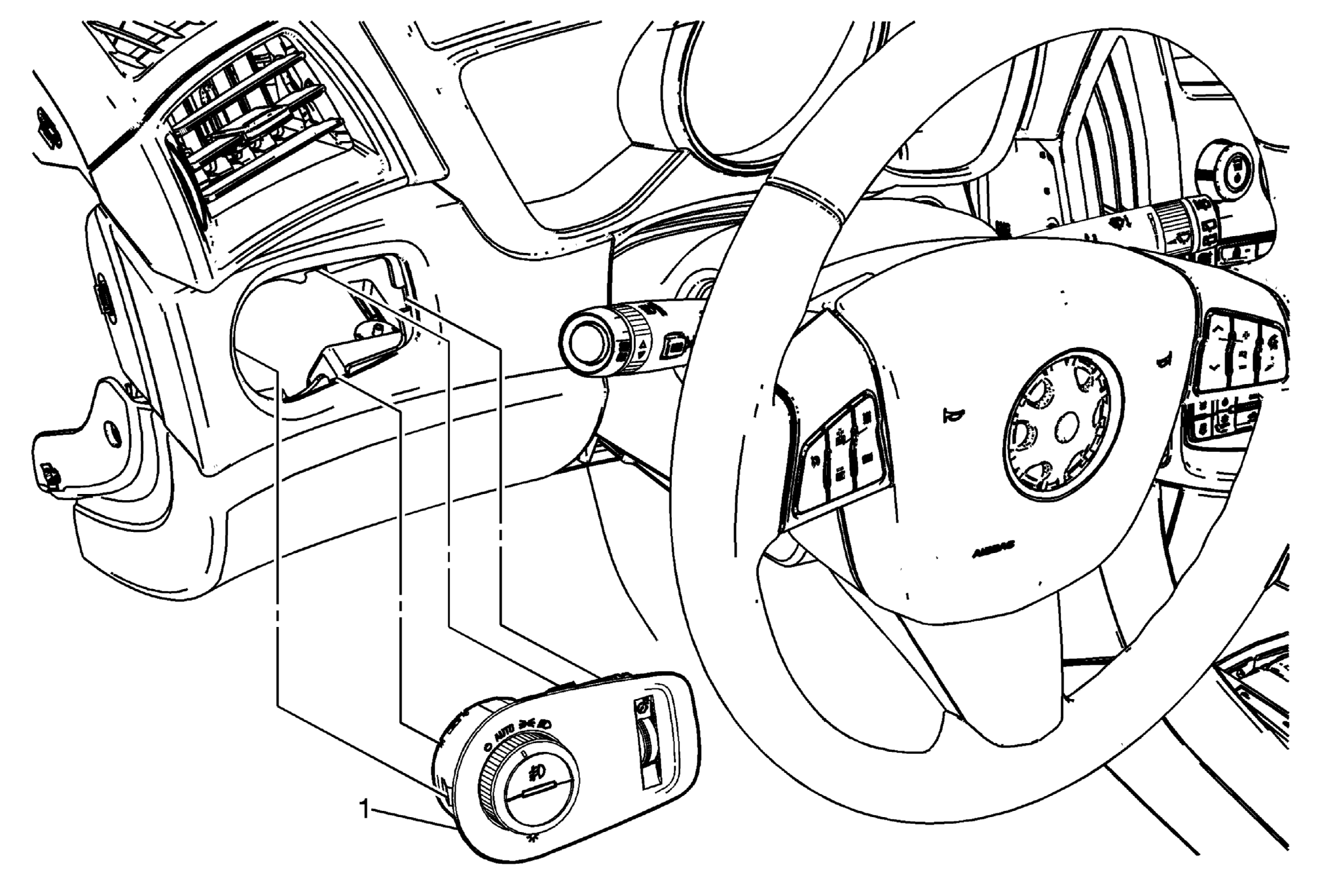

Fig 1: Locating Headlamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .
1	Headlamp Switch Procedure Depress tabs to remove the switch assembly from the instrument panel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .

Headlamp Switch

Procedure

Depress tabs to remove the switch assembly from the instrument panel.
Disconnect the electrical connector.
