High Mount Stop Lamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

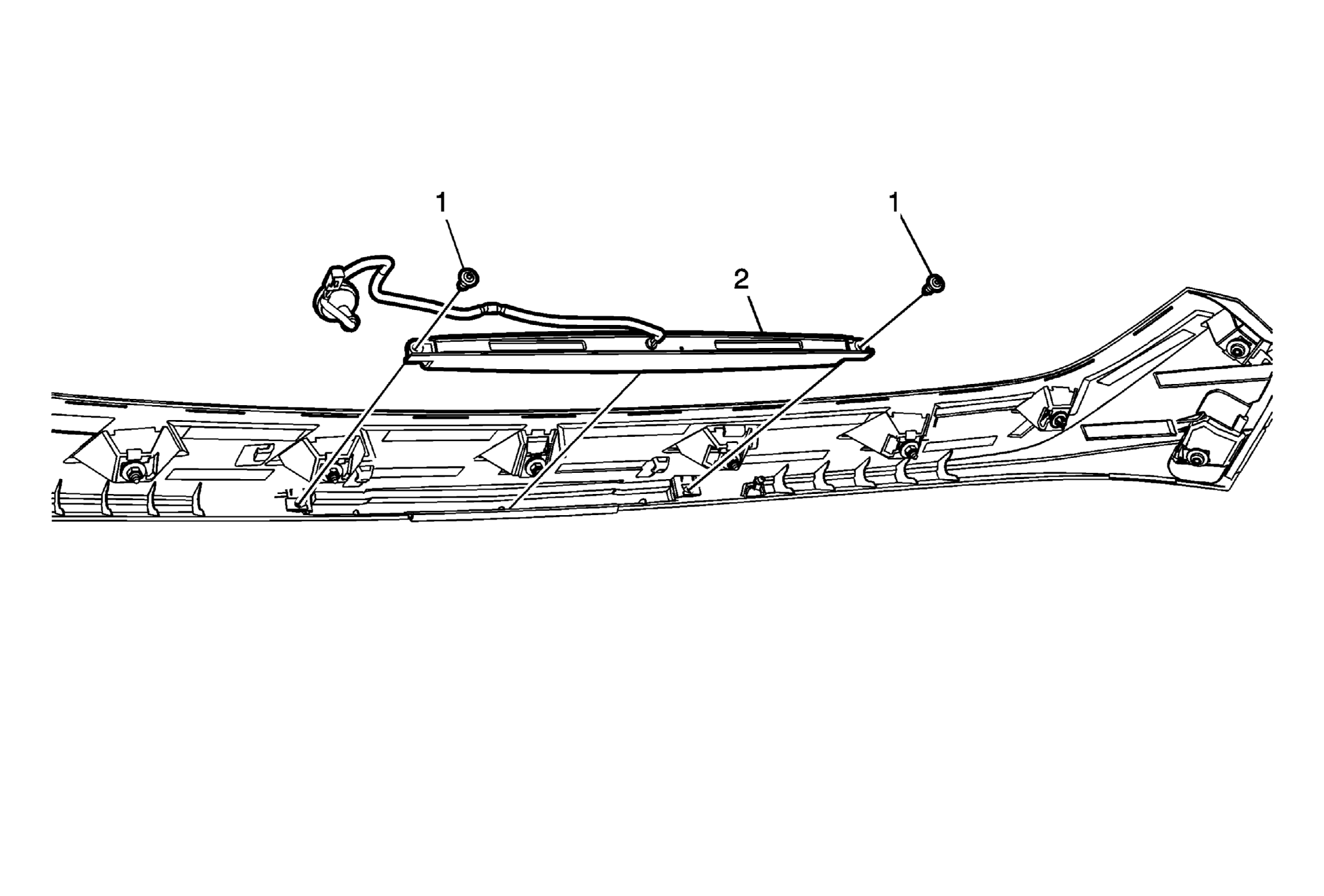

Fig 1: Identifying High Mount Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the liftgate. Remove the rear End spoiler. Refer to Rear End Spoiler Replacement . Place the rear spoiler on a clean protected surface in order to remove the Light Emitted Diode (LED) high mounted stop lamp.
1	High Mount Stop Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	High Mount Stop Lamp Assembly Procedure: Remove the high mount (LED) stop lamp from the back side of the rear spoiler.

Callout

Component Name

Preliminary Procedures

Open the liftgate.
Remove the rear End spoiler. Refer to Rear End Spoiler Replacement .
Place the rear spoiler on a clean protected surface in order to remove the Light Emitted Diode (LED) high mounted stop lamp.

High Mount Stop Lamp Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

High Mount Stop Lamp Assembly
Procedure:
Remove the high mount (LED) stop lamp from the back side of the rear spoiler.
