Instrument Panel Compartment Lamp Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

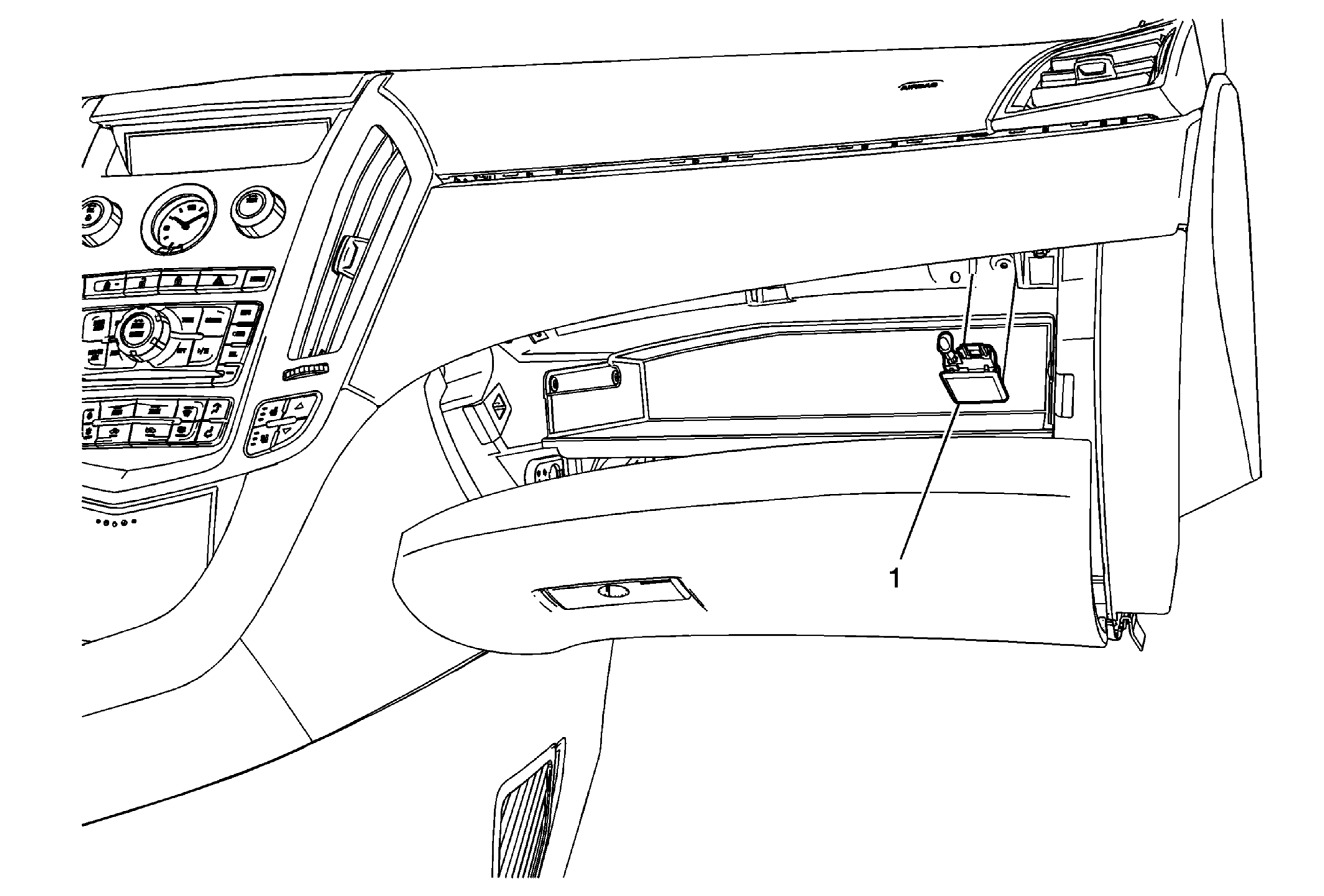

| Callout |
Component Name |
| 1 |
Instrument Panel Compartment Lamp Procedure
- Use a plastic flat bladed trim tool in order to release the lamp assembly from the instrument panel compartment housing.
- Disconnect the electrical connection.
|
