Tail Lamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

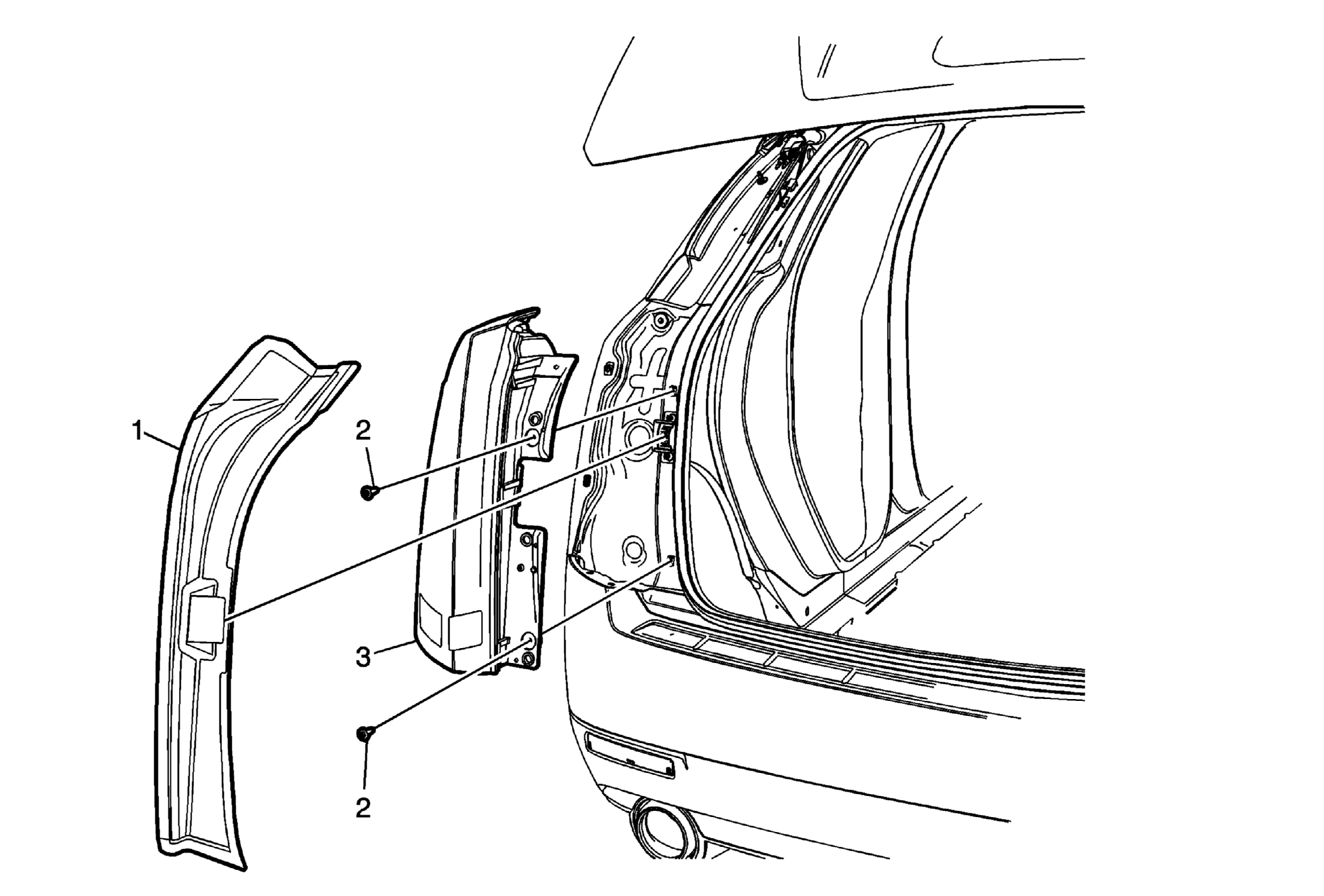

Fig 1: Identifying Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Open the rear liftgate in order to access and remove the tail lamp screws.
1	Tail Lamp Filler Panel Procedure: Using a suitable flat bladed tool, remove the push-pin and tail lamp filler panel.
2	Tail Lamp Screw (Qty 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Tail Lamp Assembly Procedure Pull on the outer edge of the tail lamp assembly in order to release the tail lamp locator pins from the rear bodyside panel. Disconnect the electrical connectors.
