Passenger Compartment Components

Passenger Compartment Components

Component Name Callout
F112D Seat Belt Retractor Pretensioner - Driver 1
F105L Roof Rail Air Bag - Left 2
K36 Inflatable Restraint Sensing and Diagnostic Module 3
B119 Multi-axis Acceleration Sensor 4
F105R Roof Rail Air Bag - Right 5
F112P Seat Belt Retractor Pretensioner - Passenger 6
T4G Cellular Phone, Navigation, and Digital Radio Antenna 7

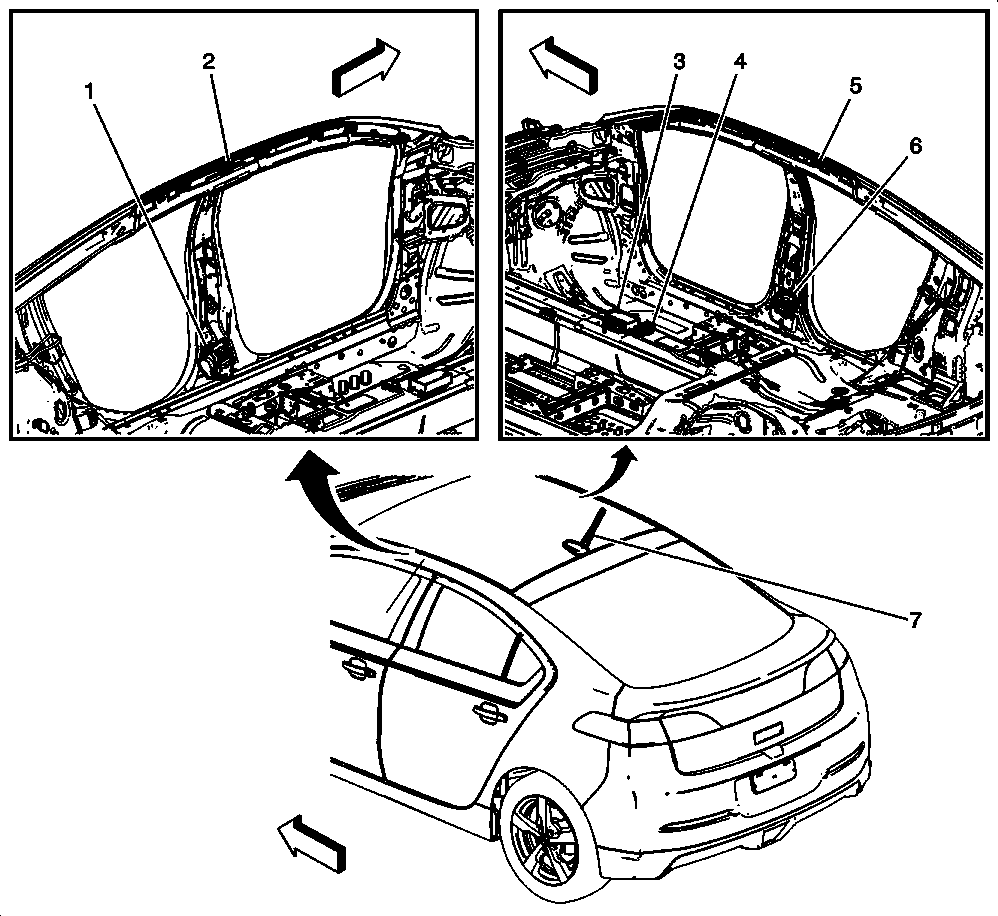

Fig 1: Passenger Compartment Components
GM2486351Courtesy of GENERAL MOTORS COMPANY
