Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

Clean the sealing surfaces.

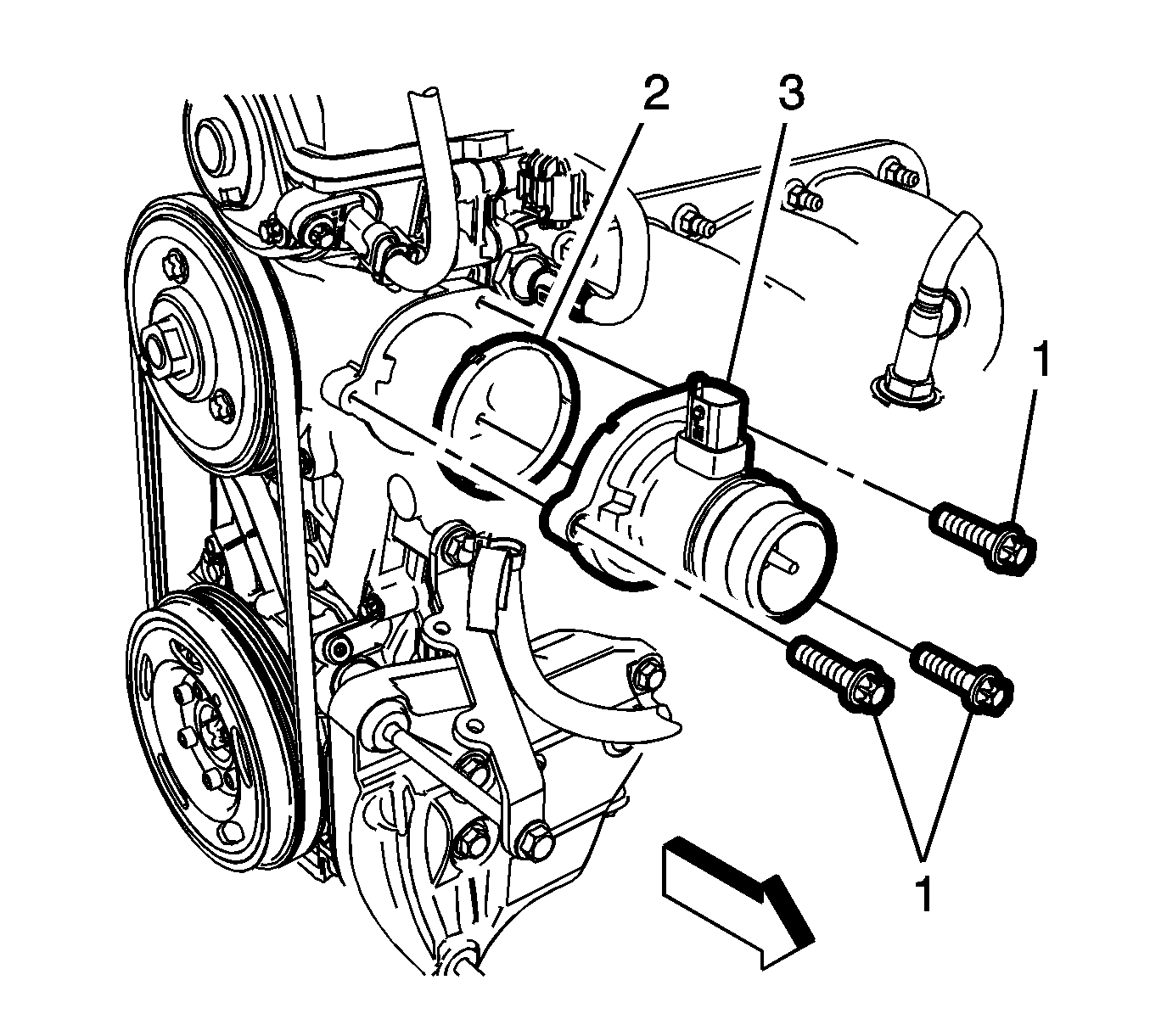

Fig 1: Water Inlet Pipe And Bolts

Courtesy of GENERAL MOTORS CORP.

Install the water inlet pipe (3) and seal (2).

CAUTION: Refer to Fastener Caution .

Tighten the water inlet pipe bolts (1) to 8 N.m (71 lb in).

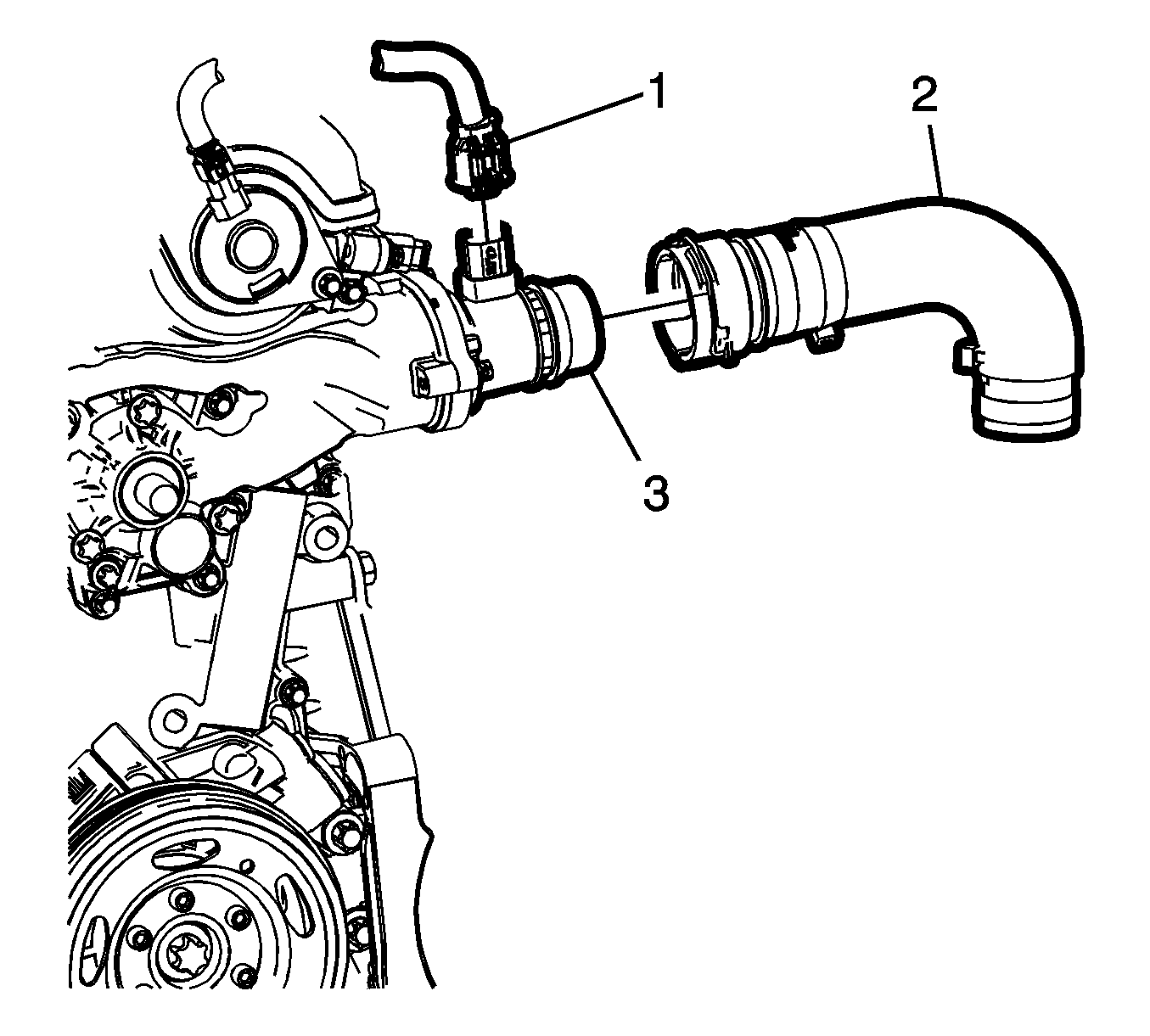

Fig 2: Radiator Inlet Hose, Engine Coolant Temperature Sensor Connector And Water Inlet Pipe

Courtesy of GENERAL MOTORS CORP.

Connect the engine coolant temperature sensor (1) and the radiator inlet hose (2).
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Fill up the coolant fluid. Refer to Cooling System Draining and Filling .
Start the engine and check for coolant leaks.
