Liftgate Latch Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

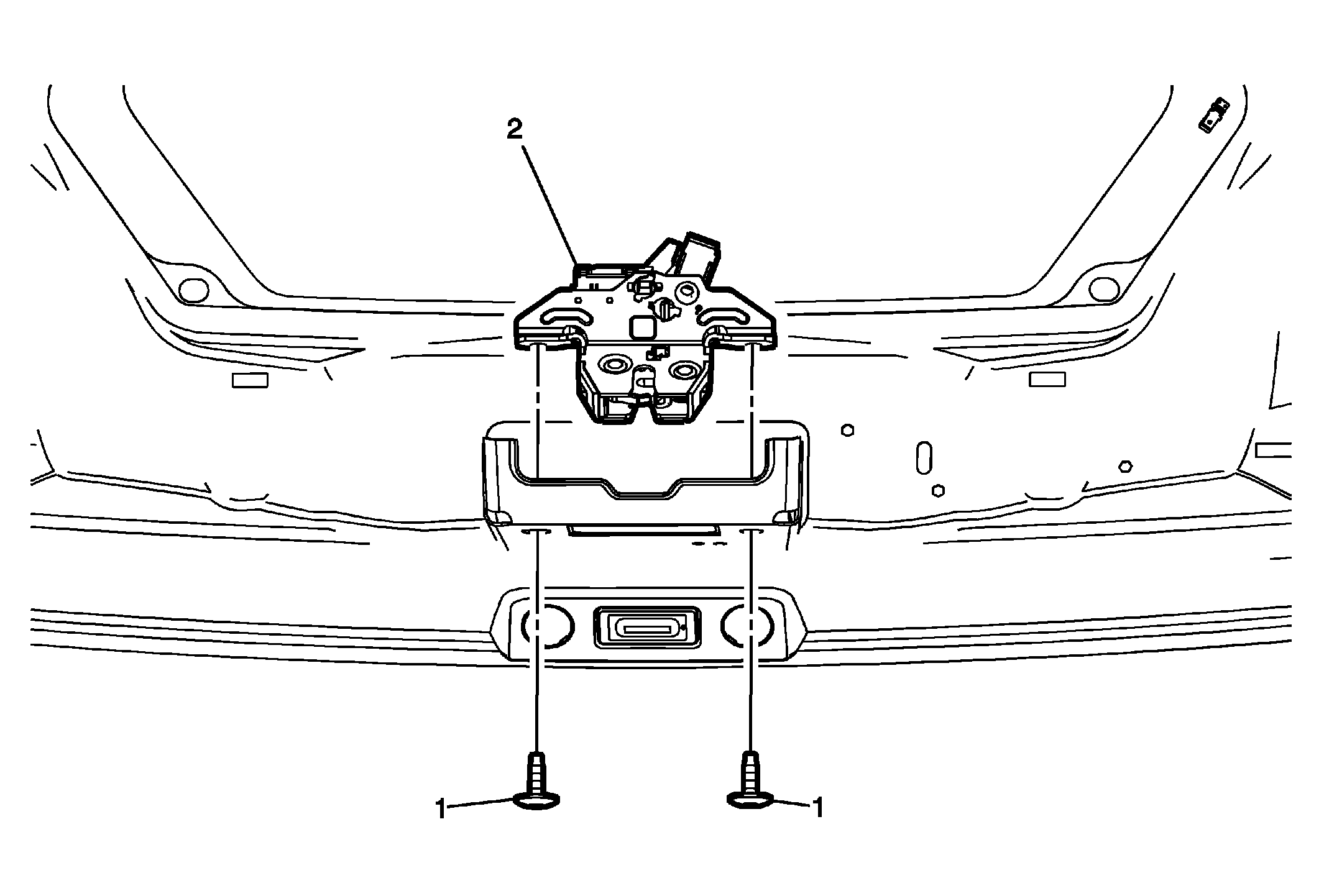

Fig 1: Liftgate Latch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate lower trim panel. Refer to Liftgate Lower Trim Finish Panel Replacement .
1	Liftgate Latch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Liftgate Latch Assembly Procedure Disconnect the electrical connector. Adjust the liftgate if needed. Refer to Liftgate Adjustment .

Callout

Component Name

Preliminary Procedure:
Remove the liftgate lower trim panel. Refer to Liftgate Lower Trim Finish Panel Replacement .

Liftgate Latch Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Liftgate Latch Assembly

Procedure

Disconnect the electrical connector.
Adjust the liftgate if needed. Refer to Liftgate Adjustment .
