Cruise Control Wiring Schematics
WARNING:
This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

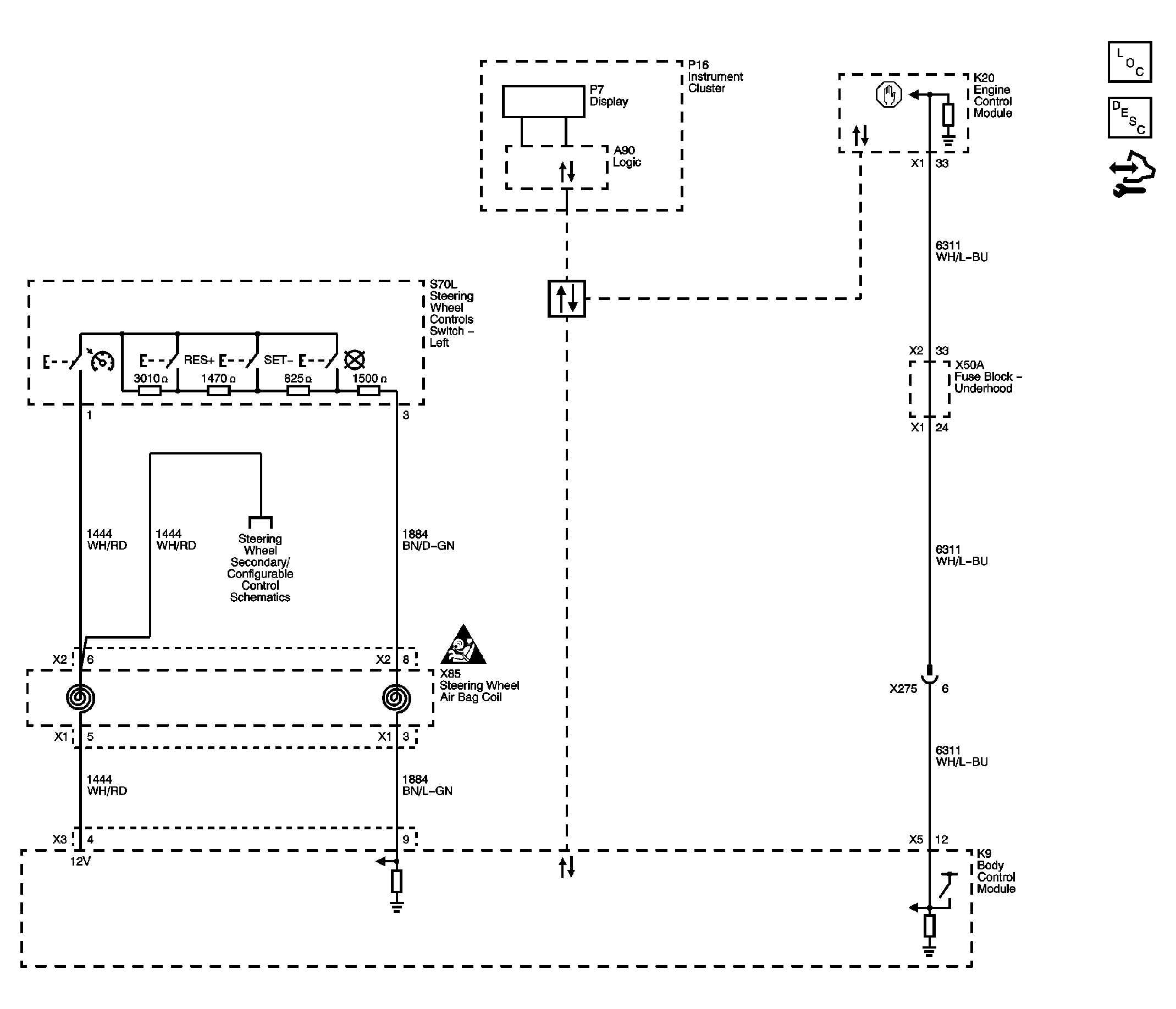

Fig 1: Cruise Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
