Installation Procedure

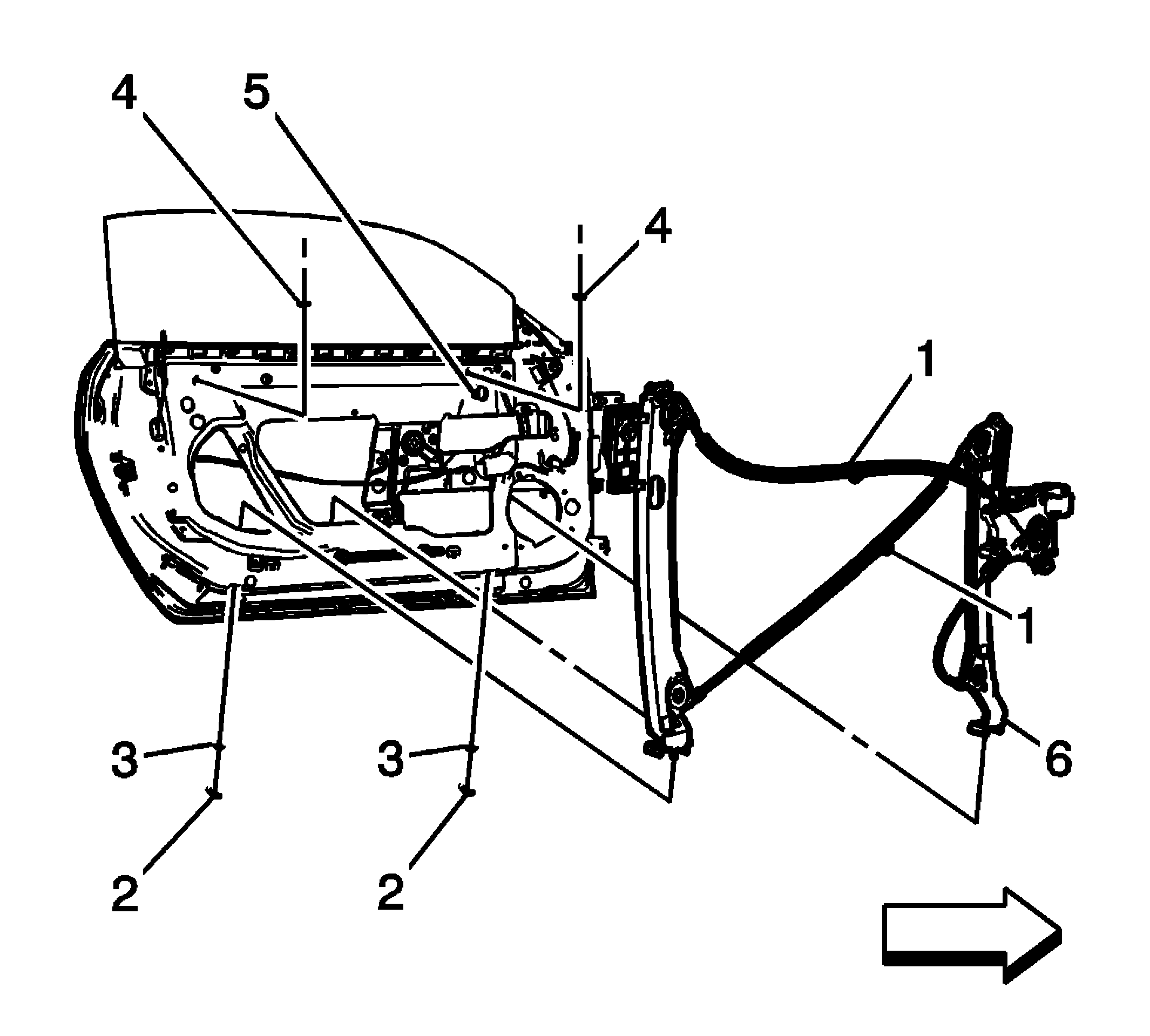

- Install the window regulator to the door as follows:
- Rear rail lower nut
- Front rail lower nut
- Place the window regulator bolts/nuts with the align up marks in step 4 of the removal, to ensure proper alignment.
- Install the front side door window regulator upper nuts (4) and tighten to 10 N.m (89 lb in).
- Install the front side door window regulator lower nuts (3) to the marks 4 located at the bottom of the door and tighten to 10 N.m (89 lb in).
- Install the front side door window regulator motor bolt (5) and tighten to 10 N.m (89 lb in).
- Install the front side door window regulator cable retainers (1).
- Install the front side door window regulator nut covers (2) located at the bottom of the door.
- Connect the electrical to the motor.

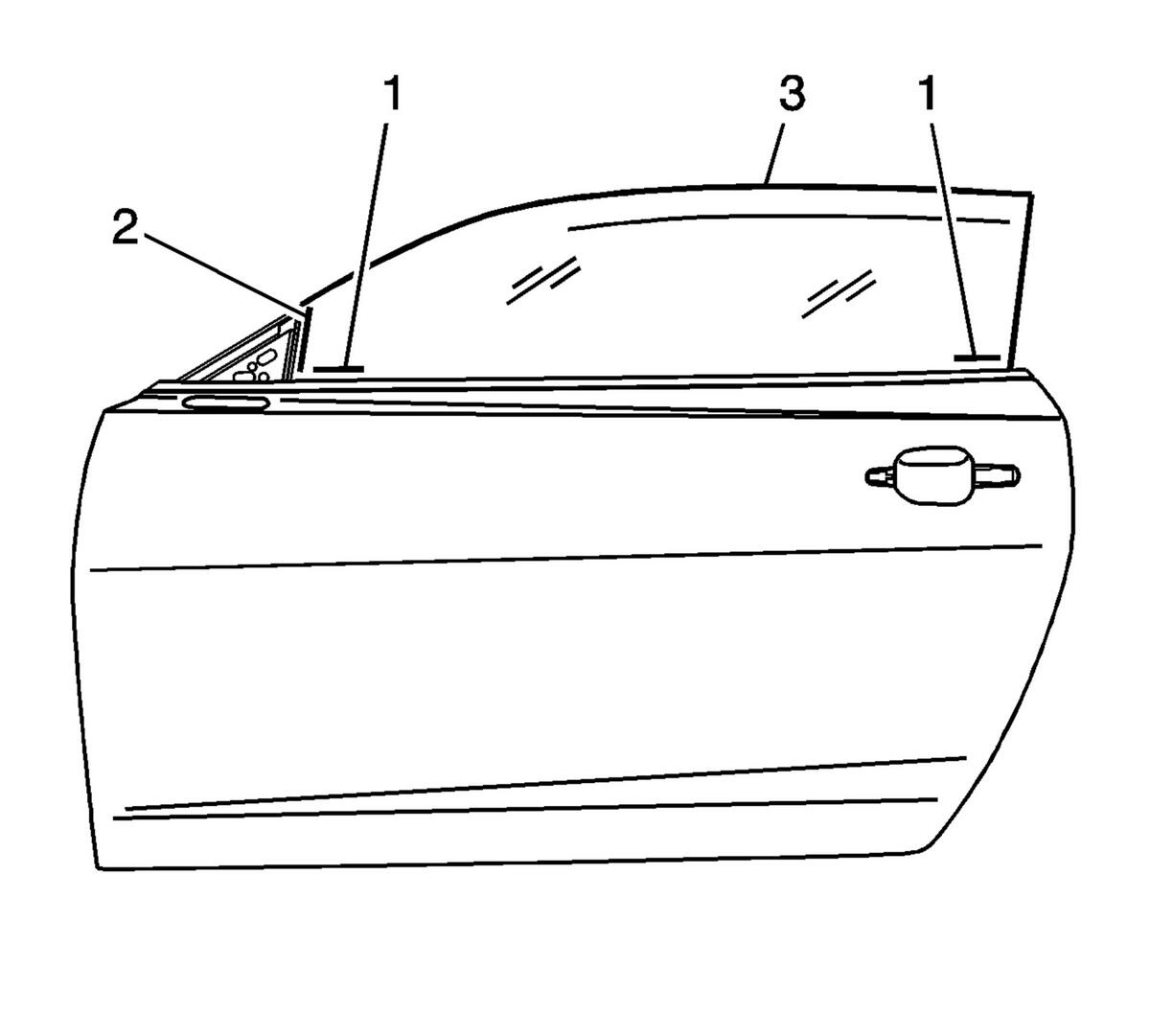

- Align the front side door window (3) using the marks taken in step 6 of the removal. Refer to Front Side Door Window Replacement .
- Tighten the regulator clamps to the window when the marks align.
- After all adjustment are completed, the regulator clamps bolts are tightened, pull the outside handle to release the door latch bolt before closing the door.
- Inspect the window for proper operation in the open and closed position before installing the door trim panel.
- Install the water deflector.
- Install the window switch to the door trim panel. Refer to Front Side Door Window Switch Replacement .
- Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
- Clean the door window.
- After replacing the window regulator assembly, it may be necessary to reprogram. Refer to Window Motor Programming - Express Function .
CAUTION:
Refer to Fastener Caution .
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
