Installation Procedure
- Open the front side door latch bolt, by pulling the outside door handle releasing the latch bolt.
- Lower the window regulator clamps to the halfway down position by using the switch.

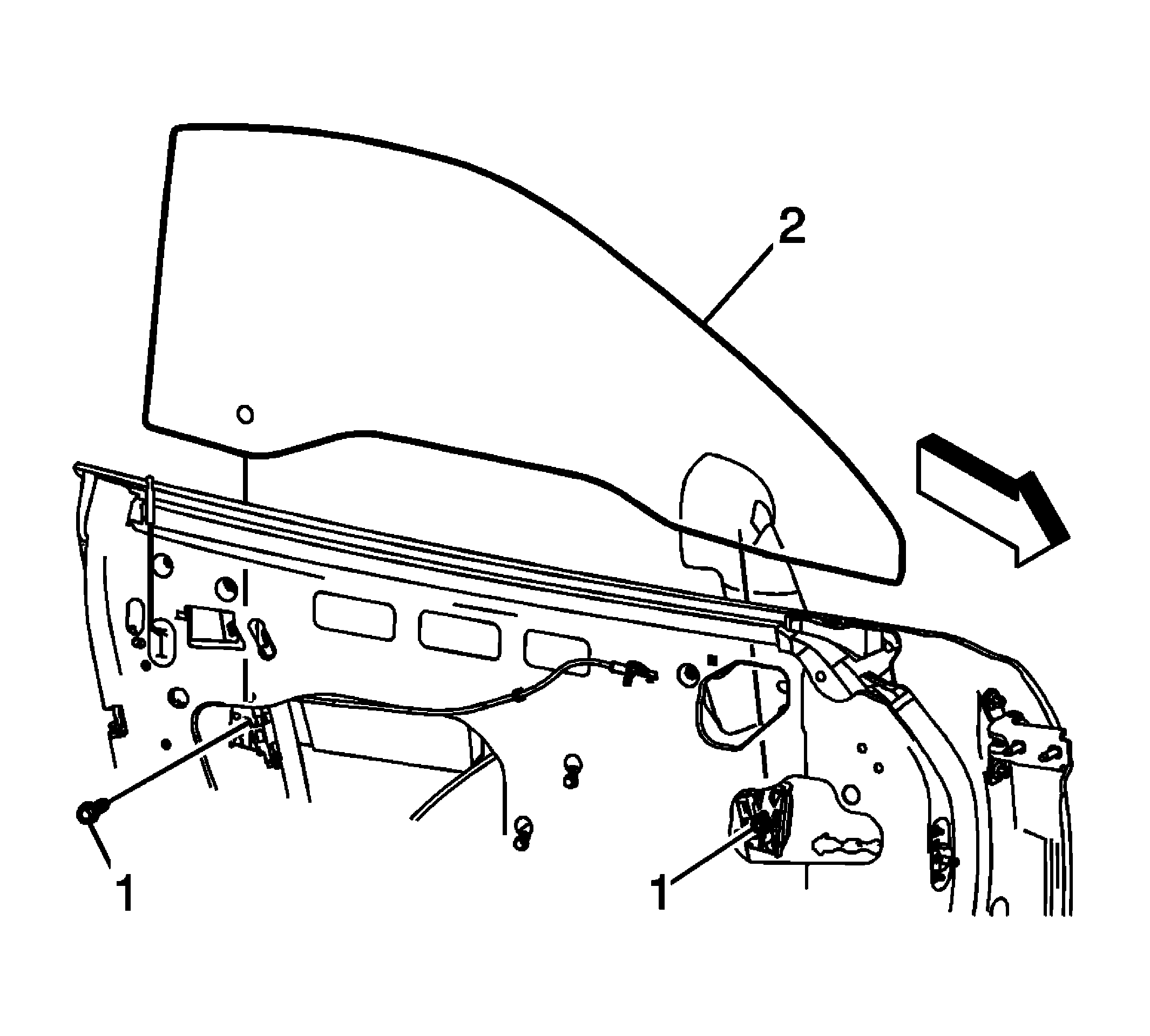

- Install the window (2) to the window clamps.
- Install the front window clamp bolt (1), Do Not tighten completely.
- Install the rear window clamp bolt (1), Do not tighten completely.
- With the door open, run the window (2) up to a hard stop.
- Place the door window in the full up position. Do the following:

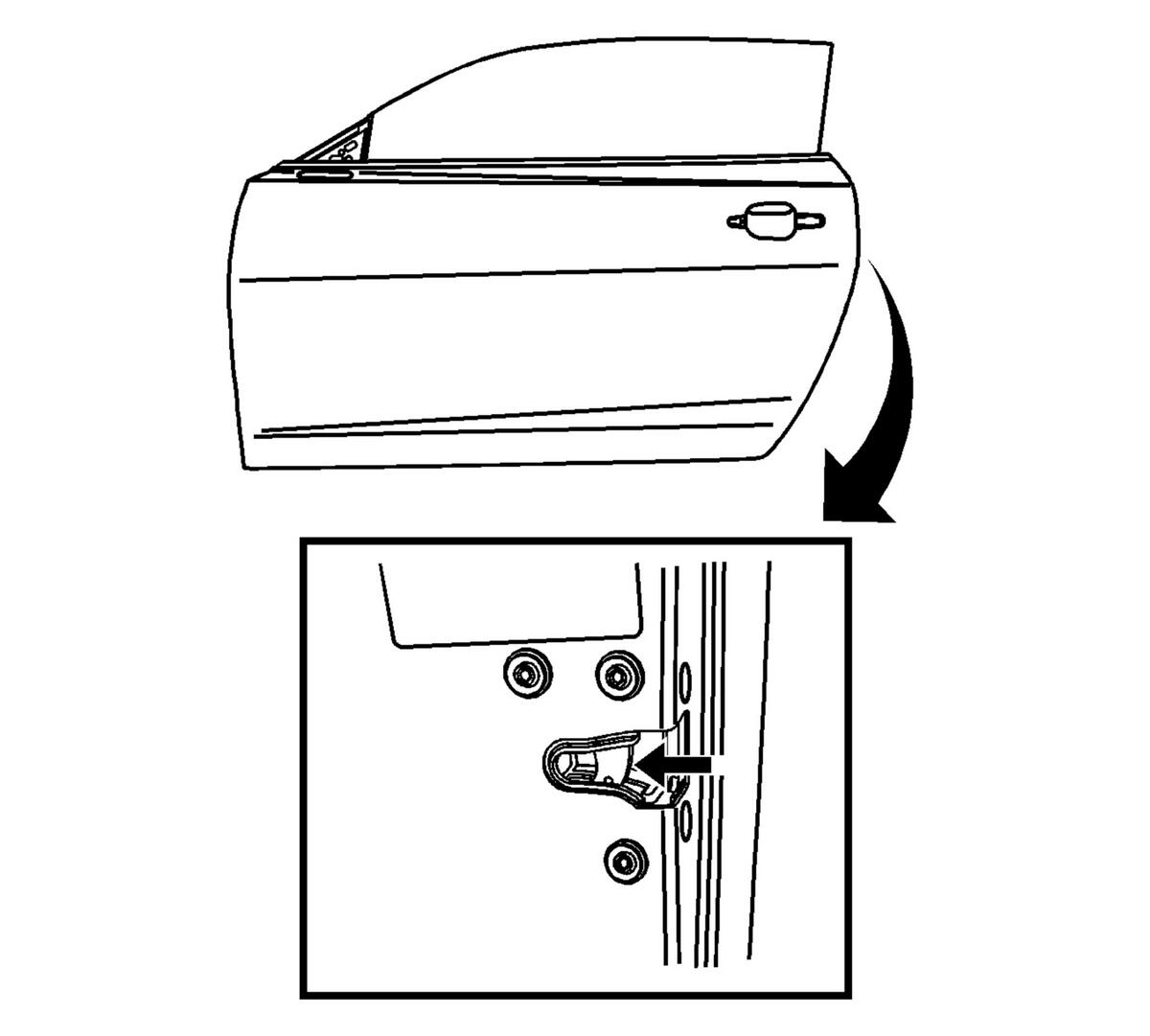

- Locate the door latch mechanism.
- Push the latch bolt until it reaches the second detent or full lock position.
- The window will automatically more up to the full close position.
- Leave the window in this position during all adjustments while the regulator clamps are loose.
- Align the marks from step 7.
- Tighten both window clamp bolts.
Tighten
Tighten the window clamp bolts to 10 N.m (89 lb in).
- After all adjustments are complete, and the regulator clamps are torqued, pull the outside door handle to release the latch bolt before closing the door.
- After all adjustments are complete and verified, do the following:
- After replacing the window it is necessary to reprogram the window. Refer to Window Motor Programming - Express Function .
- Inspect the window for proper operation in the open and closed position before installing the door trim panel.
- Install the water deflector.
- Install the window switch to the door trim panel. Refer to Front Side Door Window Switch Replacement .
- Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
CAUTION:
Refer to Fastener Caution .
