Rear Defogger

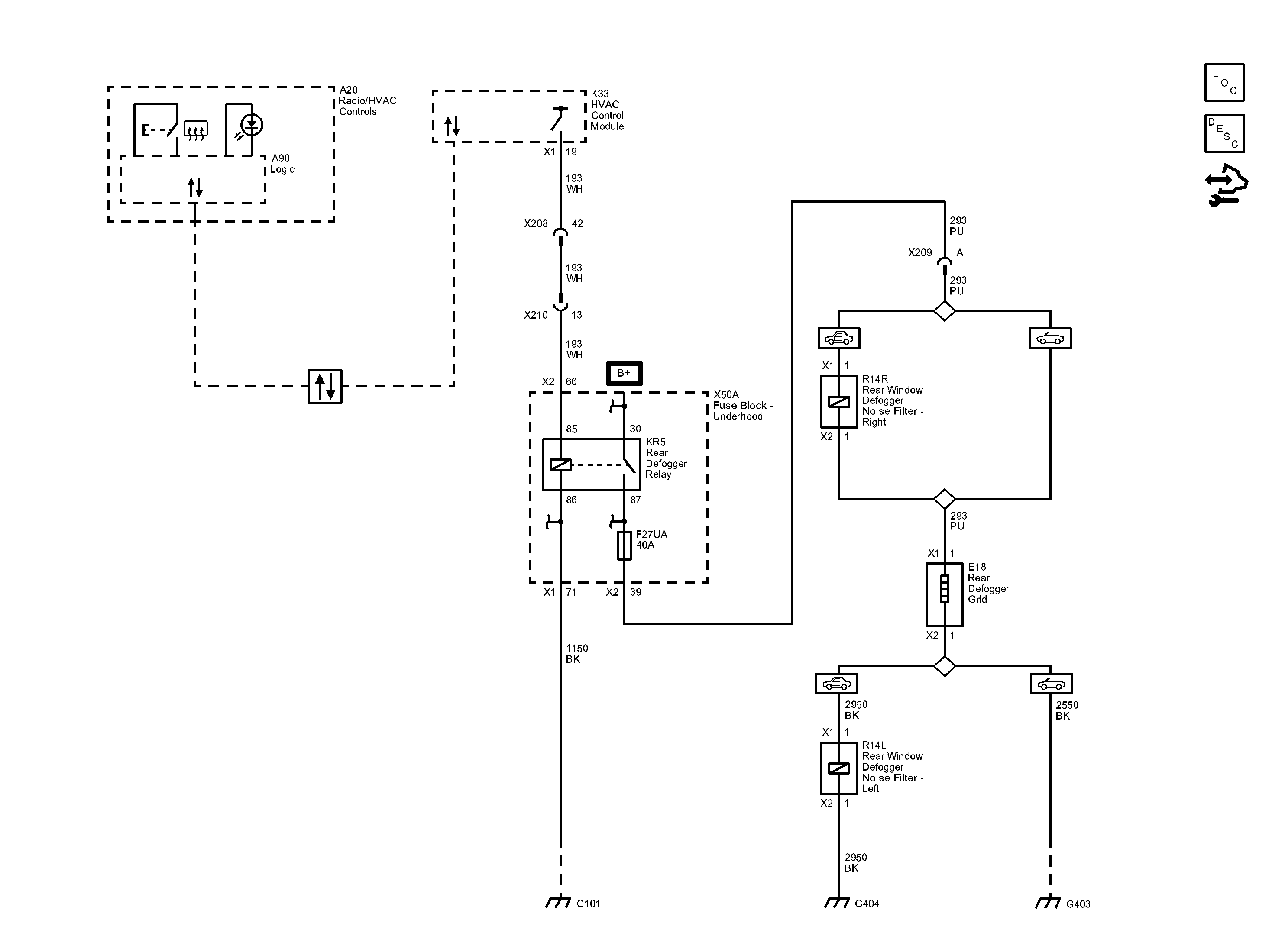

Fig 1: Rear Defogger Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
