Windows

Moveable Window Schematics

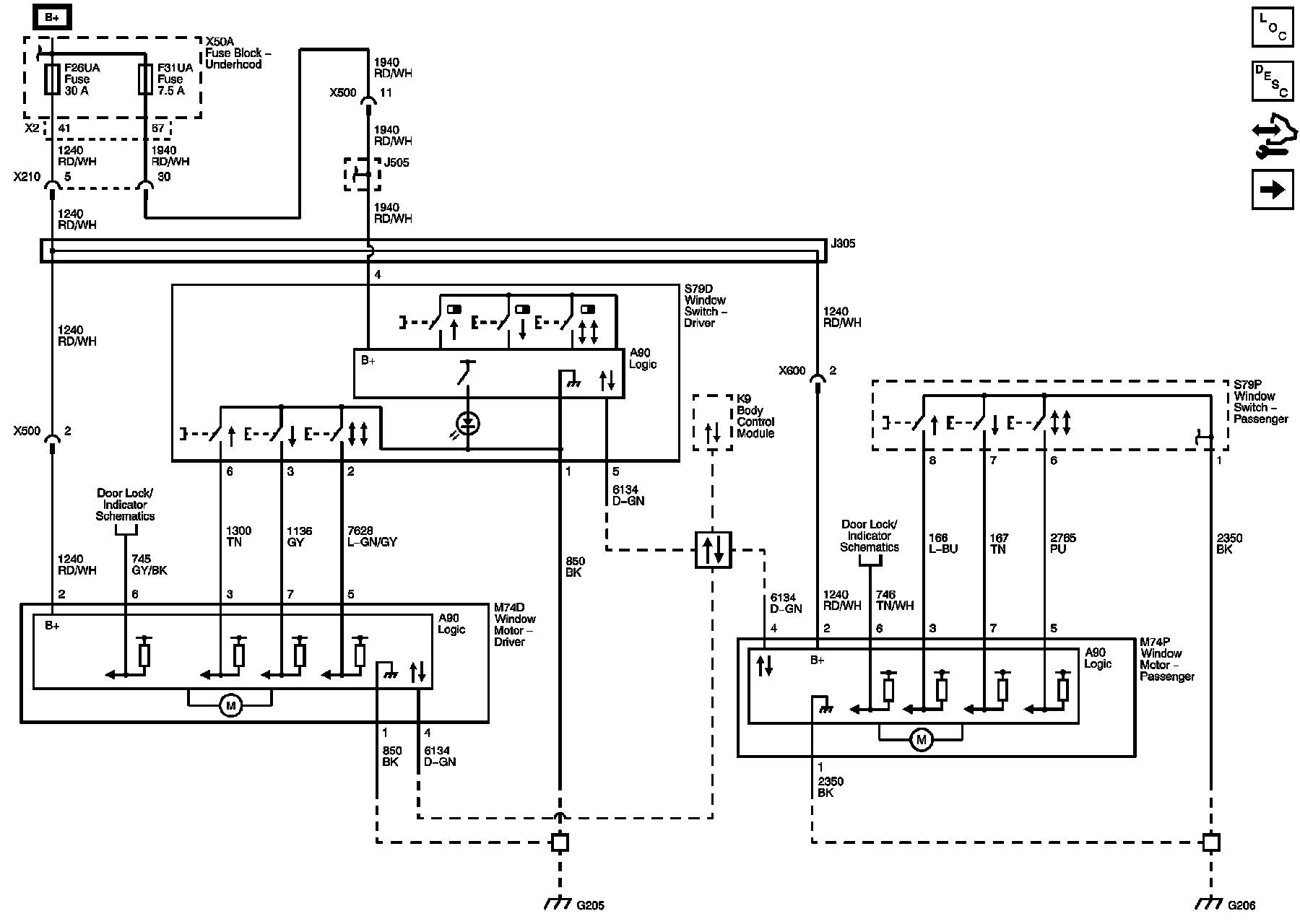

Coupe

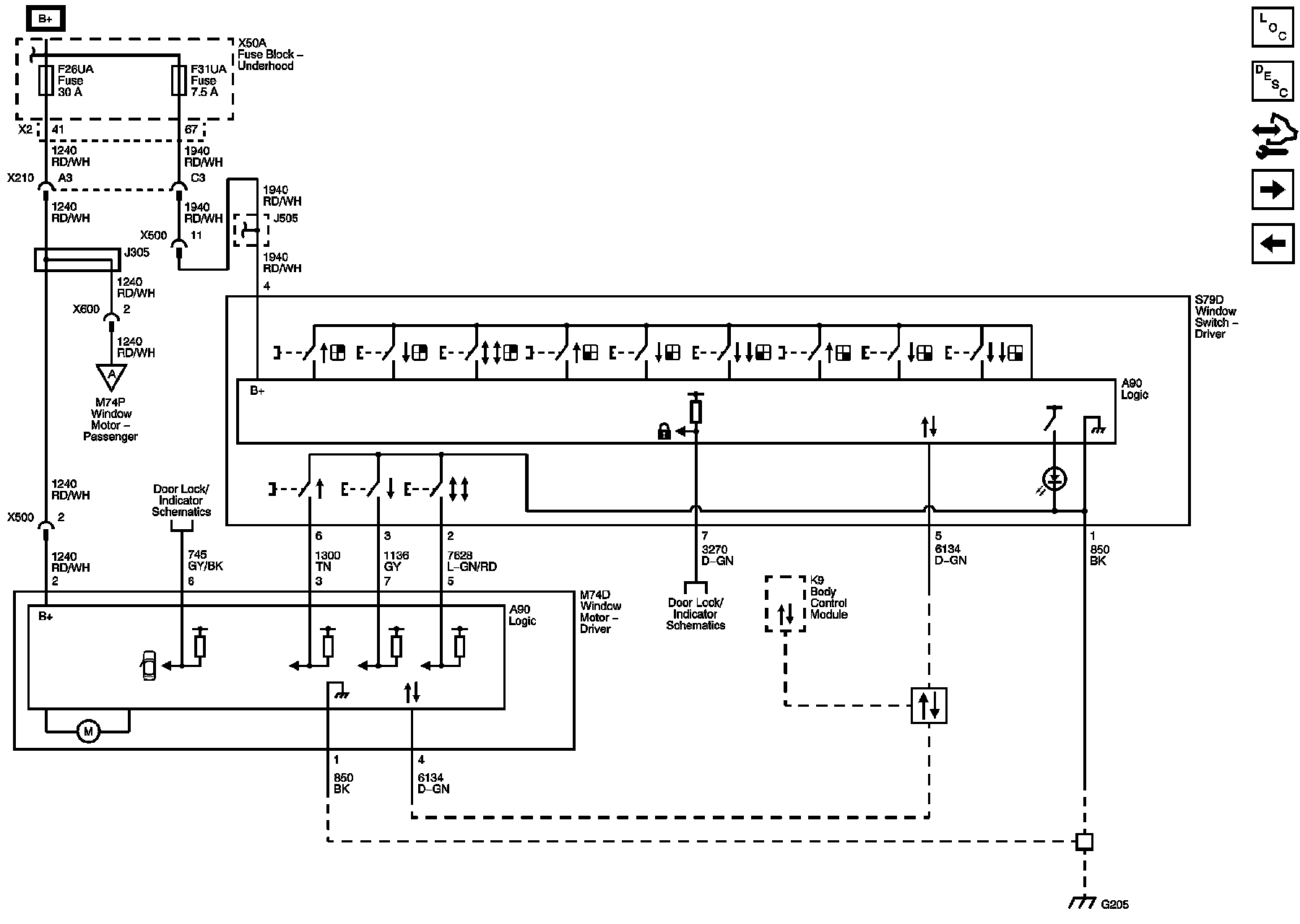

Driver Door (Convertible)





Master Electrical Component List
Power Windows Description and Operation
Control Module References
Passenger Door and Rear Windows (Convertible)
Coupe
B+ Bus (1 of 2)
F2U, F25U, F26U, F31U, F32U, F33U, and F34U Fuses
F2U, F25U, F26U, F31U, F32U, F33U, and F34U Fuses
Passenger Door and Rear Windows (Convertible)
Door Locks and Indicators
Door Locks and Indicators
Data Communication Schematics
G205

Passenger Door and Rear Windows (Convertible)





Master Electrical Component List
Power Windows Description and Operation
Control Module References
Driver Door (Convertible)
B+ Bus (1 of 2)
F2U, F25U, F26U, F31U, F32U, F33U, and F34U Fuses
Interior Lamps Dimming
Driver Door (Convertible)
Door Locks and Indicators
Data Communication Schematics
G206 and G301
G402, G403, and G404
