Structural Brace: Service and Repair

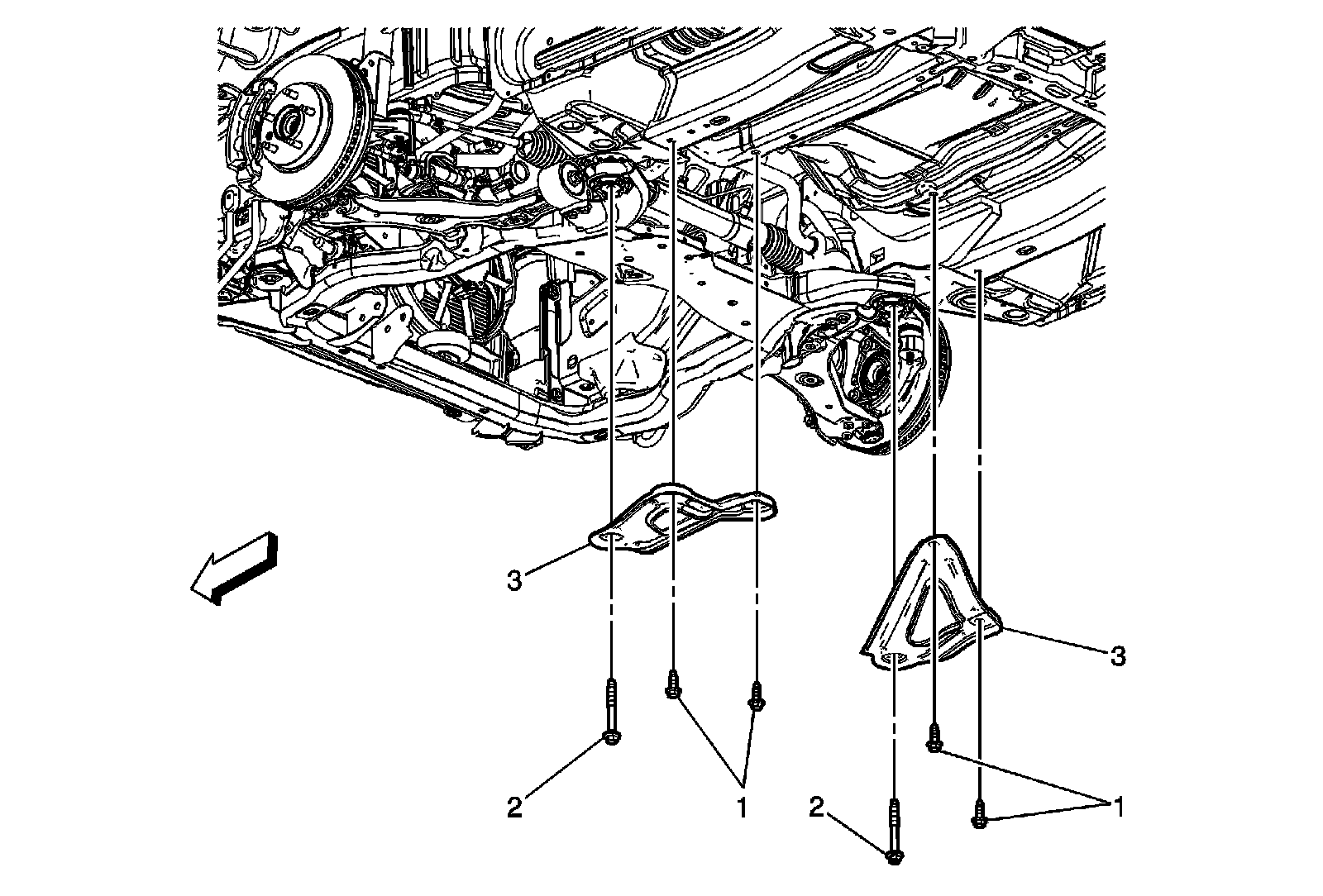

Drivetrain and Front Suspension Frame Reinforcement Replacement












2.Support the rear of the frame with a utility stand.

1Reinforcement Bolt (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 100 N �m (74 lb ft)

2Frame Bolt (Qty: 2)Tighten 155 N �m (114 lb ft)

3Reinforcement (Qty: 2)
