Front Seat Heater Control Module Replacement

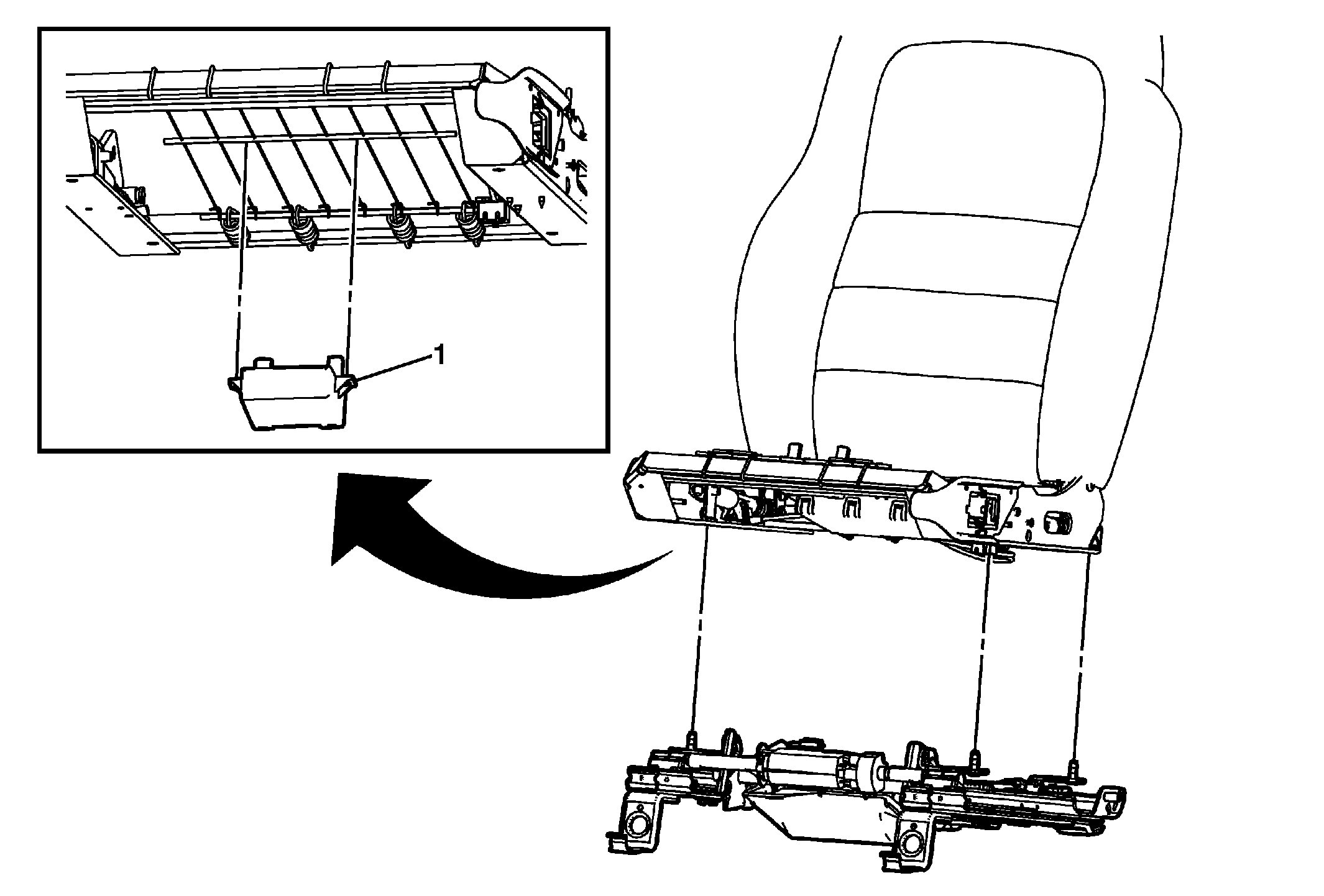

Fig 1: View Of Front Seat Heater Control Module
GM1937170Courtesy of GENERAL MOTORS COMPANY
Front Seat Heater Control Module Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the driver and passenger seat. Refer to Driver or Passenger Seat Removal and Installation
  2. Remove the front seat adjuster. Refer to Front Seat Adjuster Replacement .
1 Front Seat Heater Control Module

Procedure

  1. Disconnect any electrical connectors.
  2. Transfer components as necessary.
  3. Reprogram the module. Refer to Control Module References .
