Air Cleaner Element Replacement (LS9)

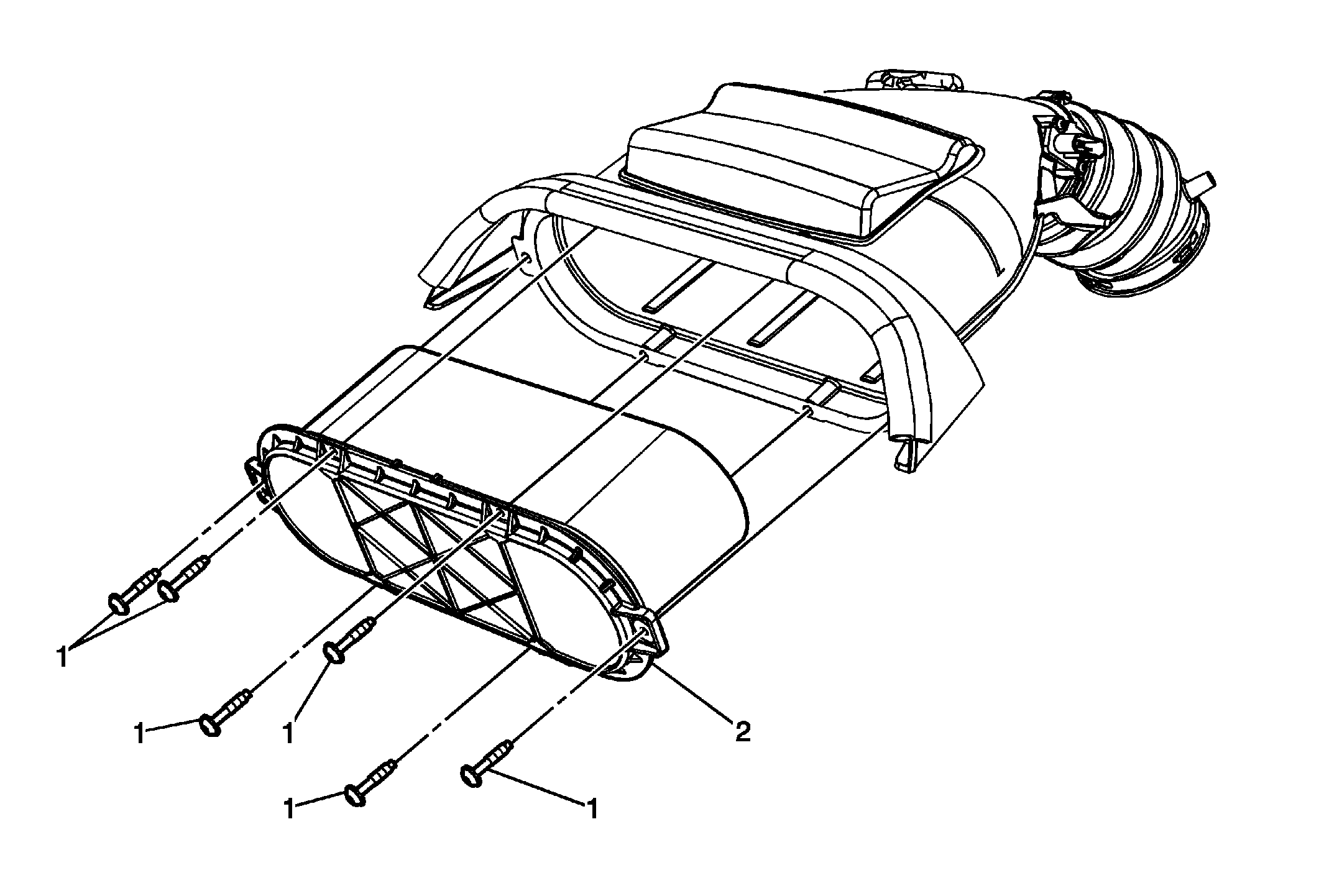

Fig 1: View Of Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (6.2L) , Air Cleaner Assembly Replacement (LS9) , Air Cleaner Assembly Replacement (7.0L) .
1	Fastener CAUTION: Refer to Fastener Caution . Tighten Fully driven, seated and not striped
2	Air Cleaner Element
