High Speed GMLAN - Manual Transmission

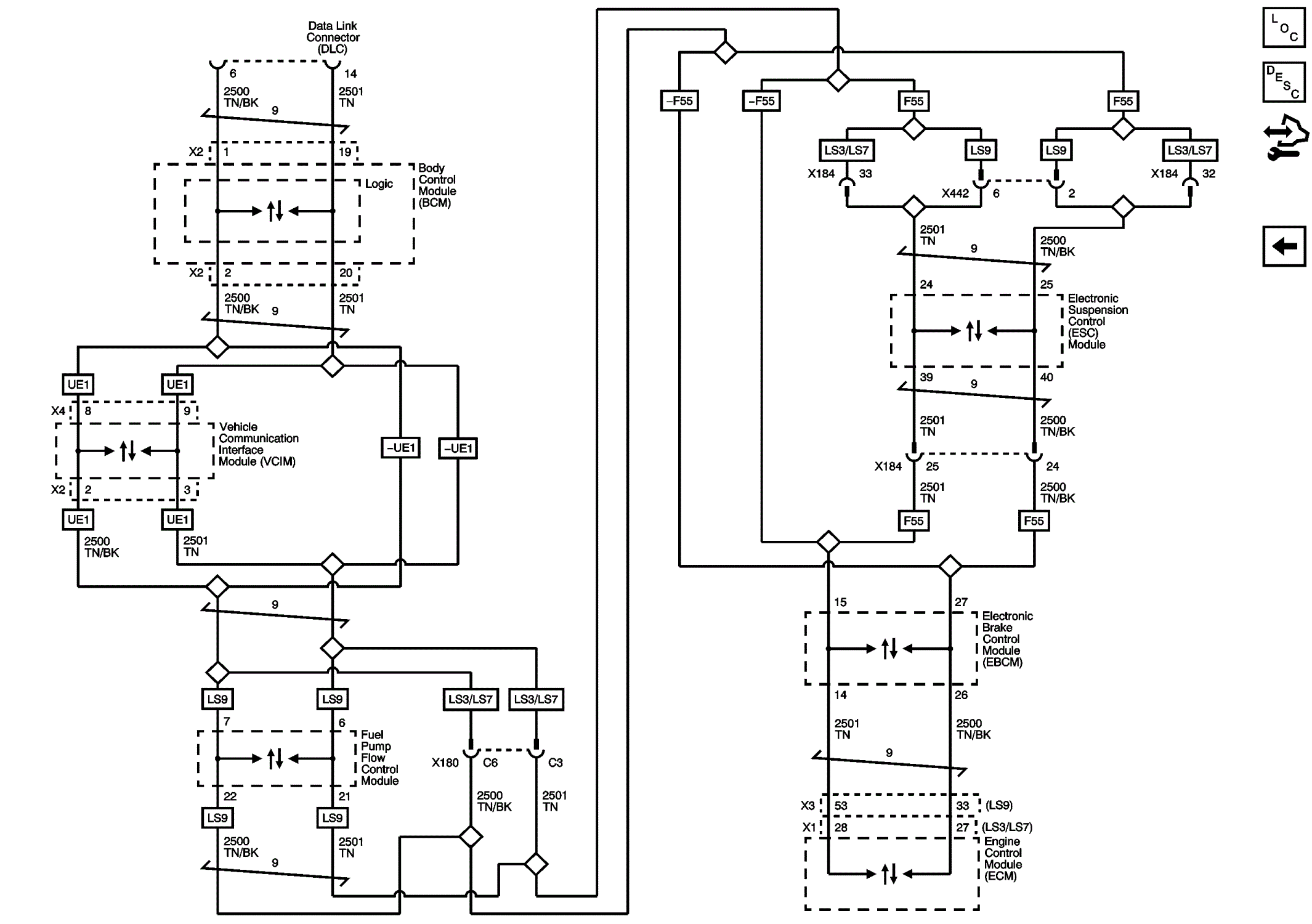

Fig 1: High Speed GMLAN Wiring Schematic - Manual Transmission
GM2756280Courtesy of GENERAL MOTORS COMPANY
