Electronic Suspension Control Module Replacement

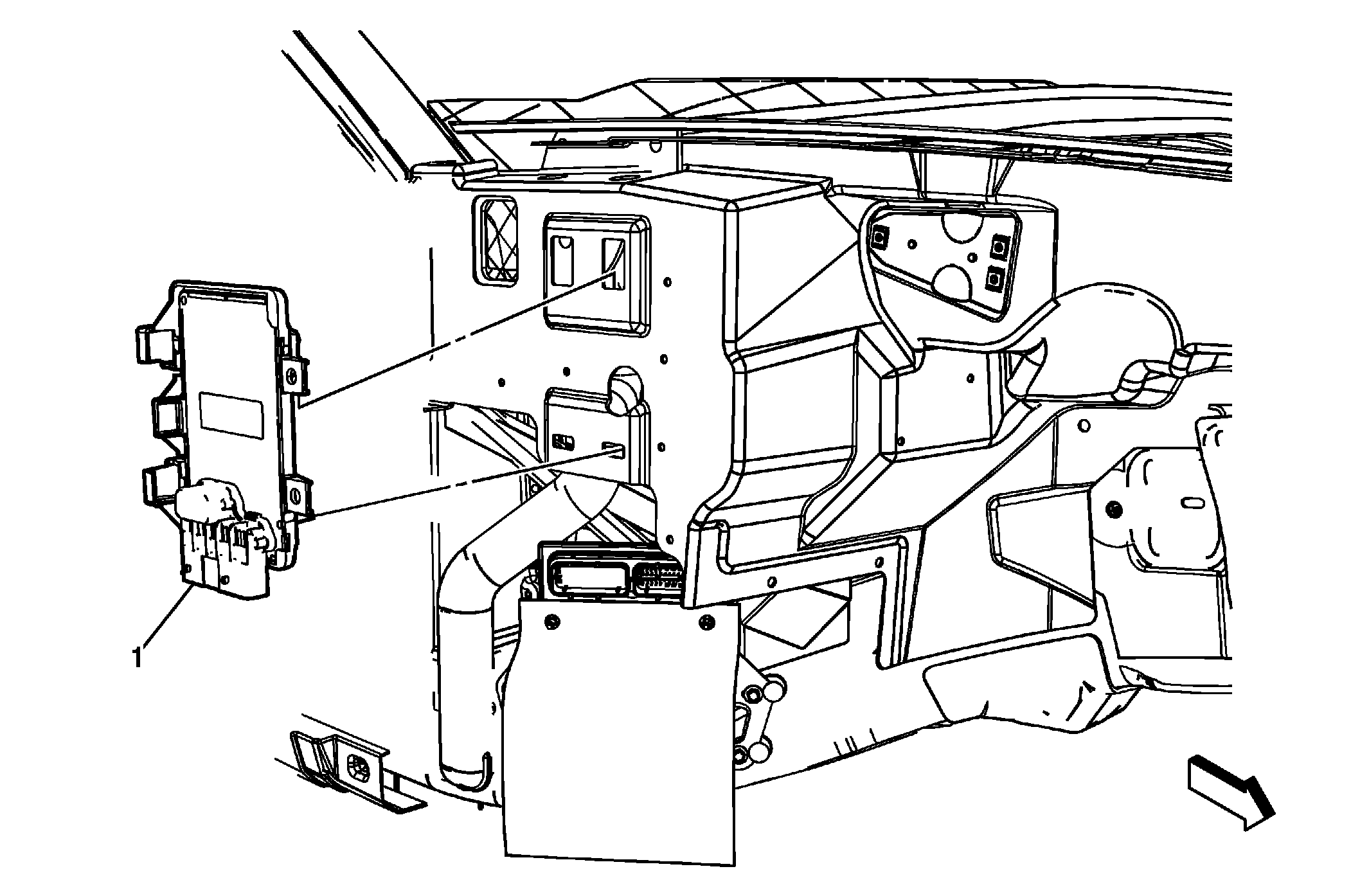

Fig 1: Electronic Suspension Control Module
GM1765495Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Control Module Replacement

Callout Component Name

Preliminary Procedures

  1. Raise the vehicle on a hoist. Refer to Lifting and Jacking the Vehicle .
  2. Remove the right front wheel rear liner. Refer to Front Wheelhouse Liner Replacement (Rear Liner) , Front Wheelhouse Liner Replacement (Front Liner) .
1 Electronic Suspension Control (ESC) Module
  1. Disconnect the electrical connector.
  2. Release the 2 locking tabs on the bottom of the bracket and raise the ESC upward to release the upper arms to remove.
  3. Reprogram the ESC module. Refer to Control Module References .
