Thread Repair Specifications




Thread Repair Specifications (6.2L LS3/7.0L)

Engine Block- Front/Rear Views

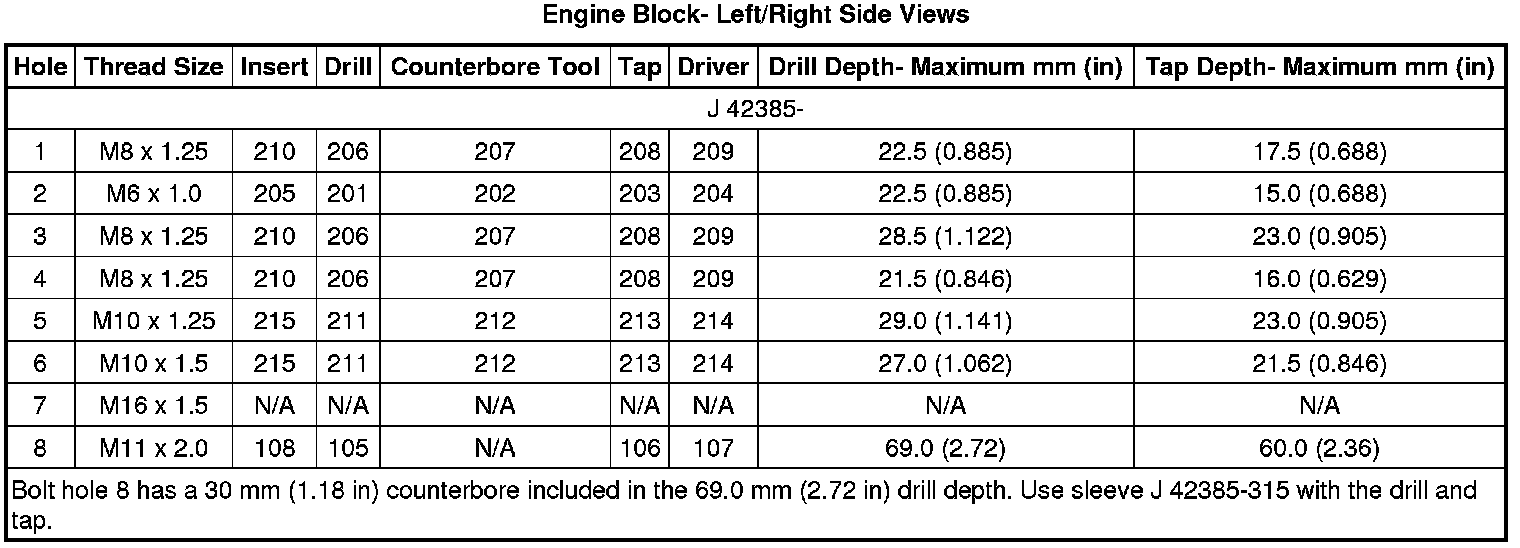

Engine Block- Left/Right Side Views

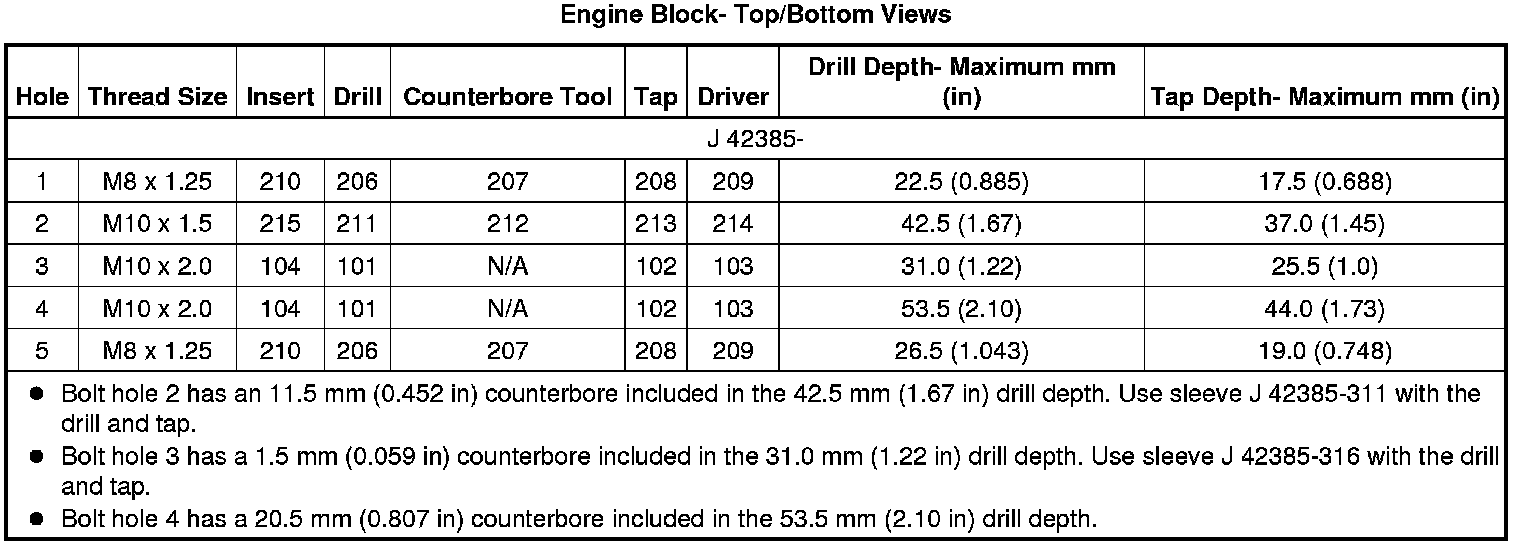

Engine Block- Top/Bottom Views










Cylinder Head- Top/End Views










Cylinder Head- Intake/Exhaust Side Views
