Electrical Diagrams




Remote Function Schematics

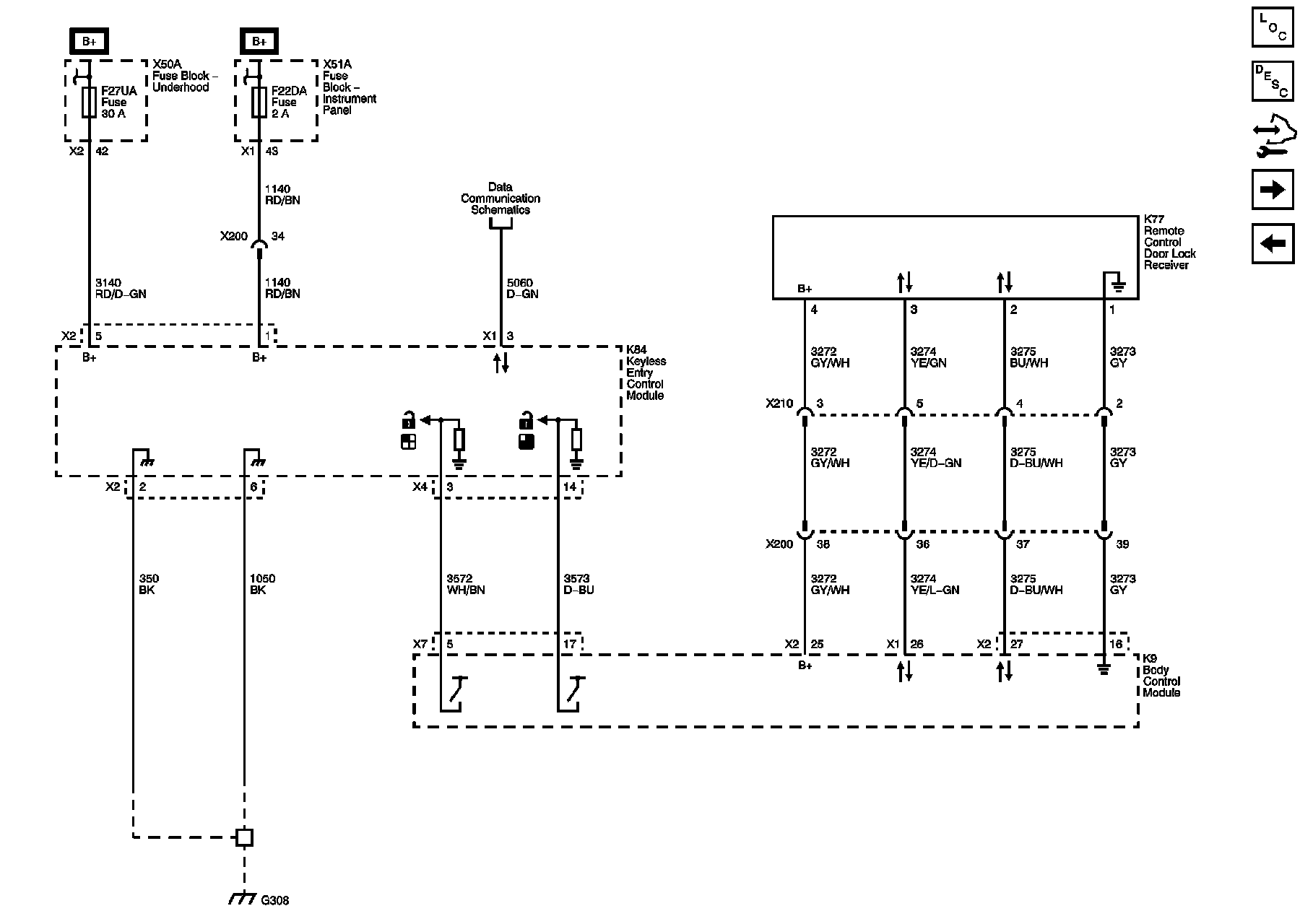

Keyless Entry (without ATH)






Keyless and Passive Entry (ATH)

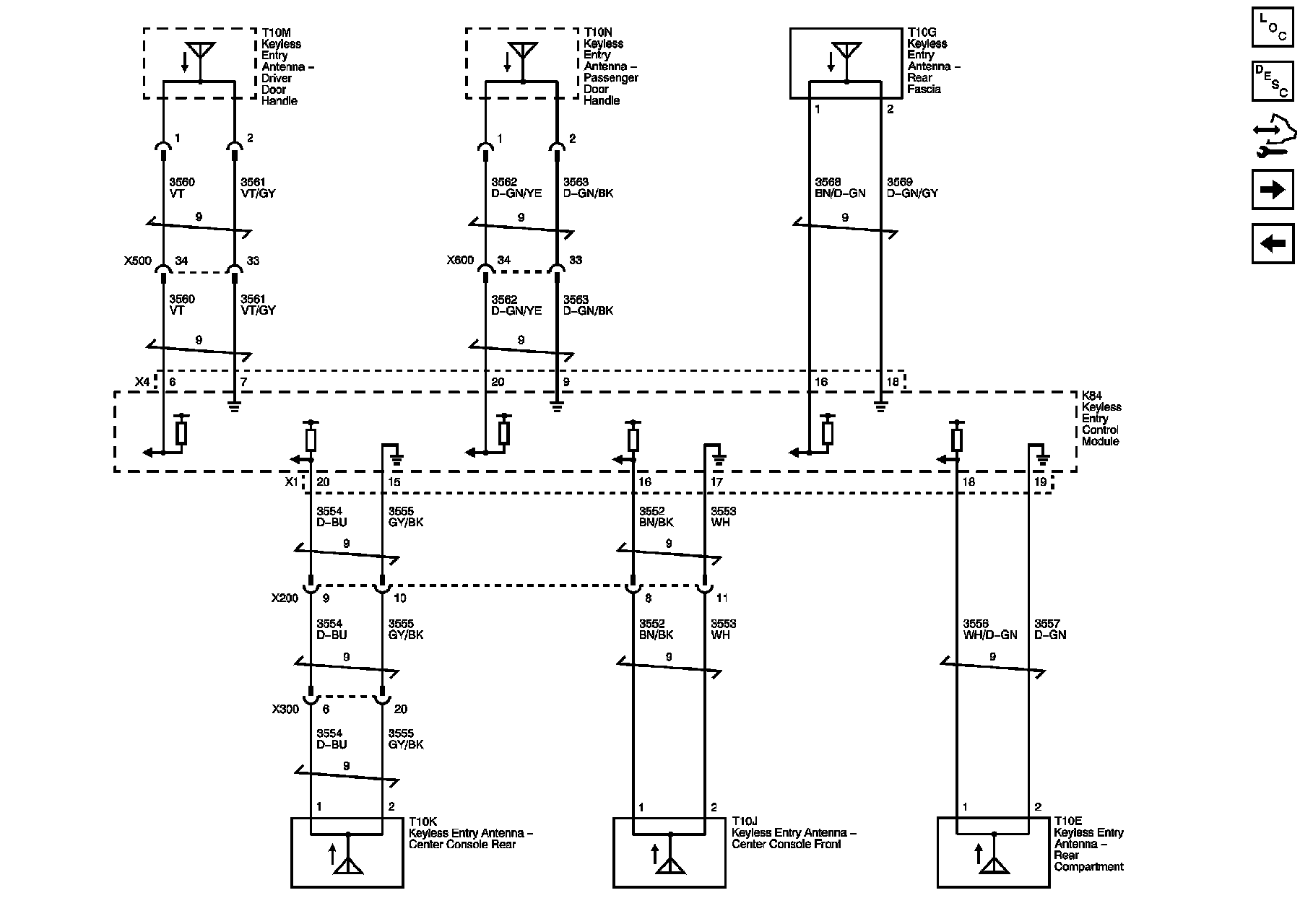

Passive Entry and Passive Start Antennas (ATH)





Door Handle Switches and References (ATH)
