Camshaft Position Sensor - Intake

Powertrain Component Views

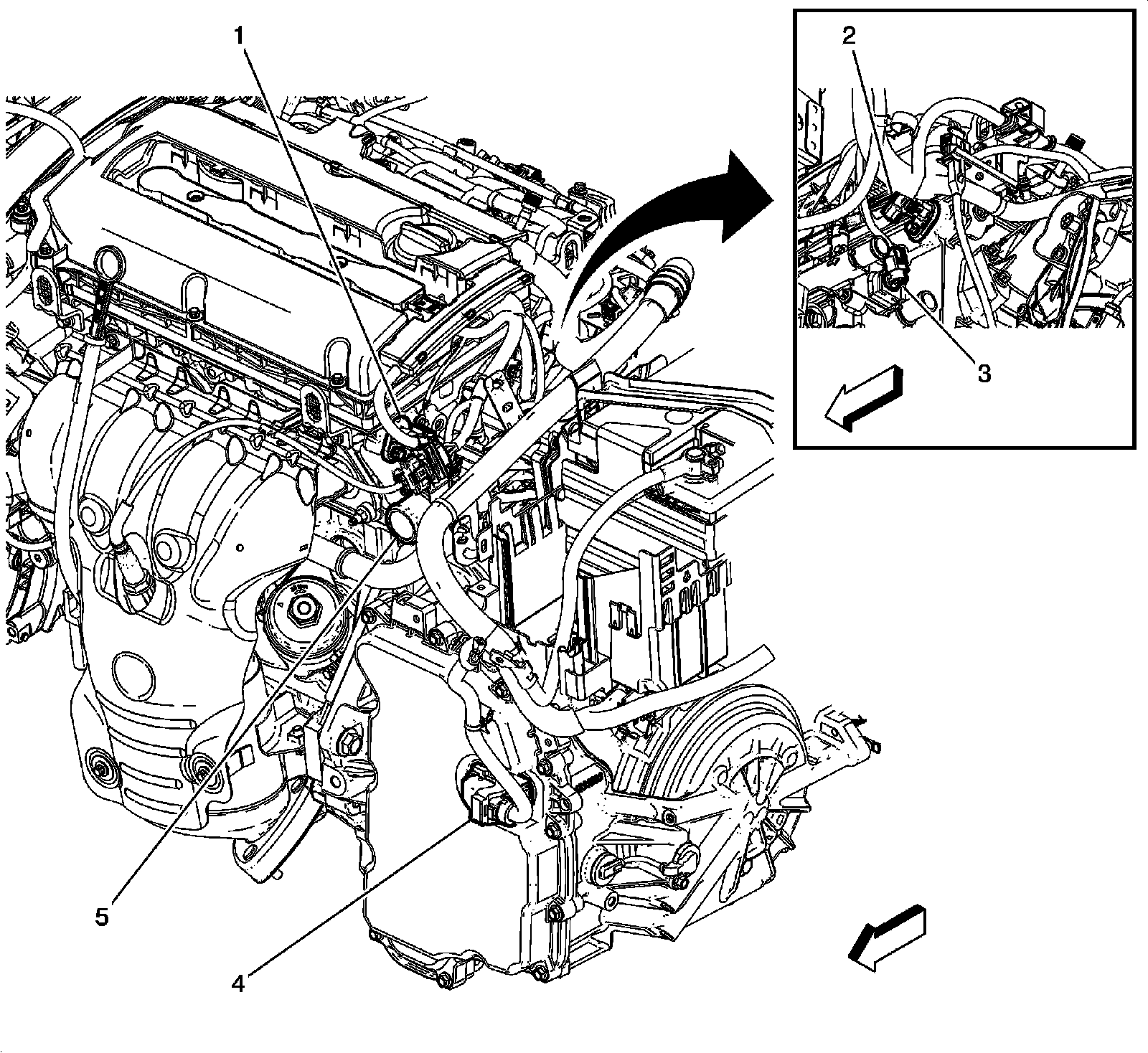

Left Front of the Engine Components (LUW)





1 - B23E Camshaft Position Sensor - Exhaust

2 - B23F Camshaft Position Sensor - Intake

3 - B34A Engine Coolant Temperature Sensor 1

4 - Q8 Control Solenoid Valve Assembly (MH8)

5 - E41 Engine Coolant Thermostat Heater
