Camshaft Gear/Sprocket

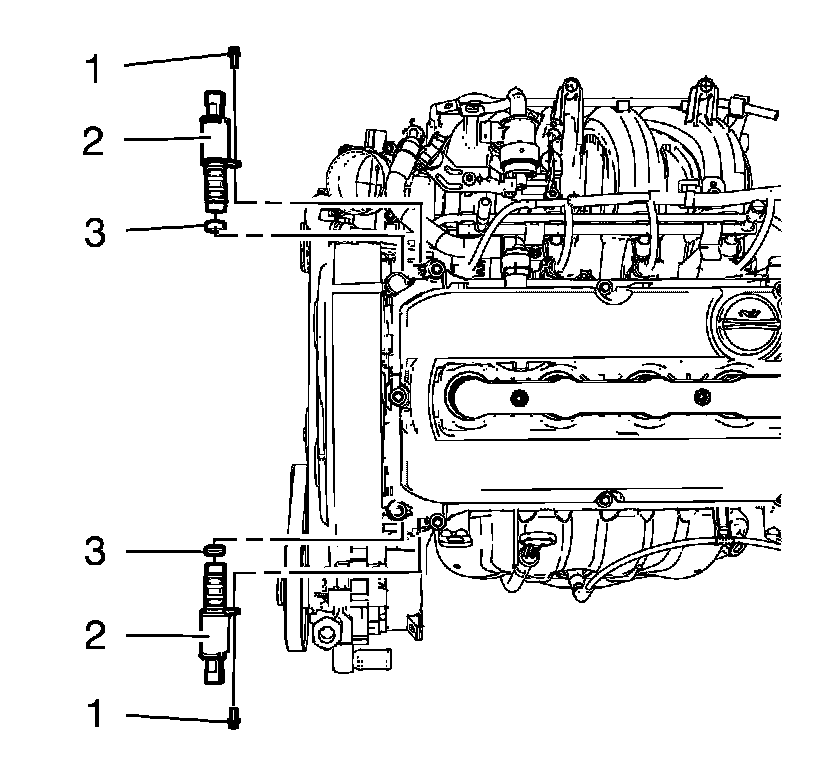

Lubricate the NEW camshaft position actuator solenoid valve seals with NEW engine oil.

Install NEW camshaft position actuator solenoid valve seals (3).
Install the camshaft position actuator solenoid valves (2).
Install the camshaft position actuator solenoid valve bolts (1) and tighten to 6 Nm (53 lb in).
