Radio and Speaker Components

Radio and Speaker Components

Component Name Callout
Audio Amplifier (UQ3) 1
Speaker- Left Rear 2
Digital Radio Receiver (U2K) 3
Speaker- Left Front 4
Speaker- Left Front Tweeter (UQ3) 5
Radio 6
Speaker- Right Front Tweeter (UQ3) 7
Speaker- Right Front 8
Speaker- Right Rear 9

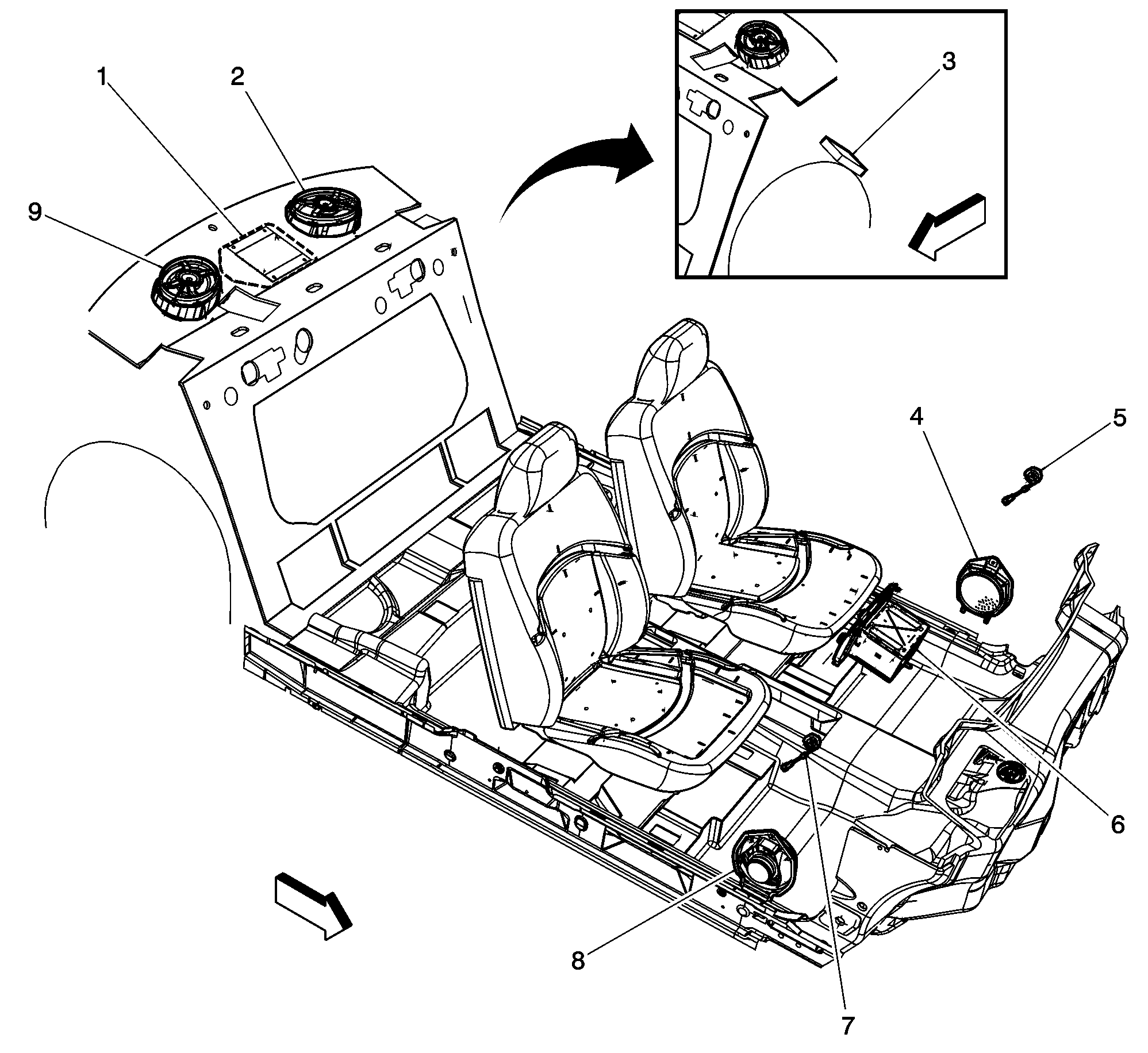

Fig 1: Radio and Speaker Components
GM3216567Courtesy of GENERAL MOTORS COMPANY
