Battery Tray Replacement

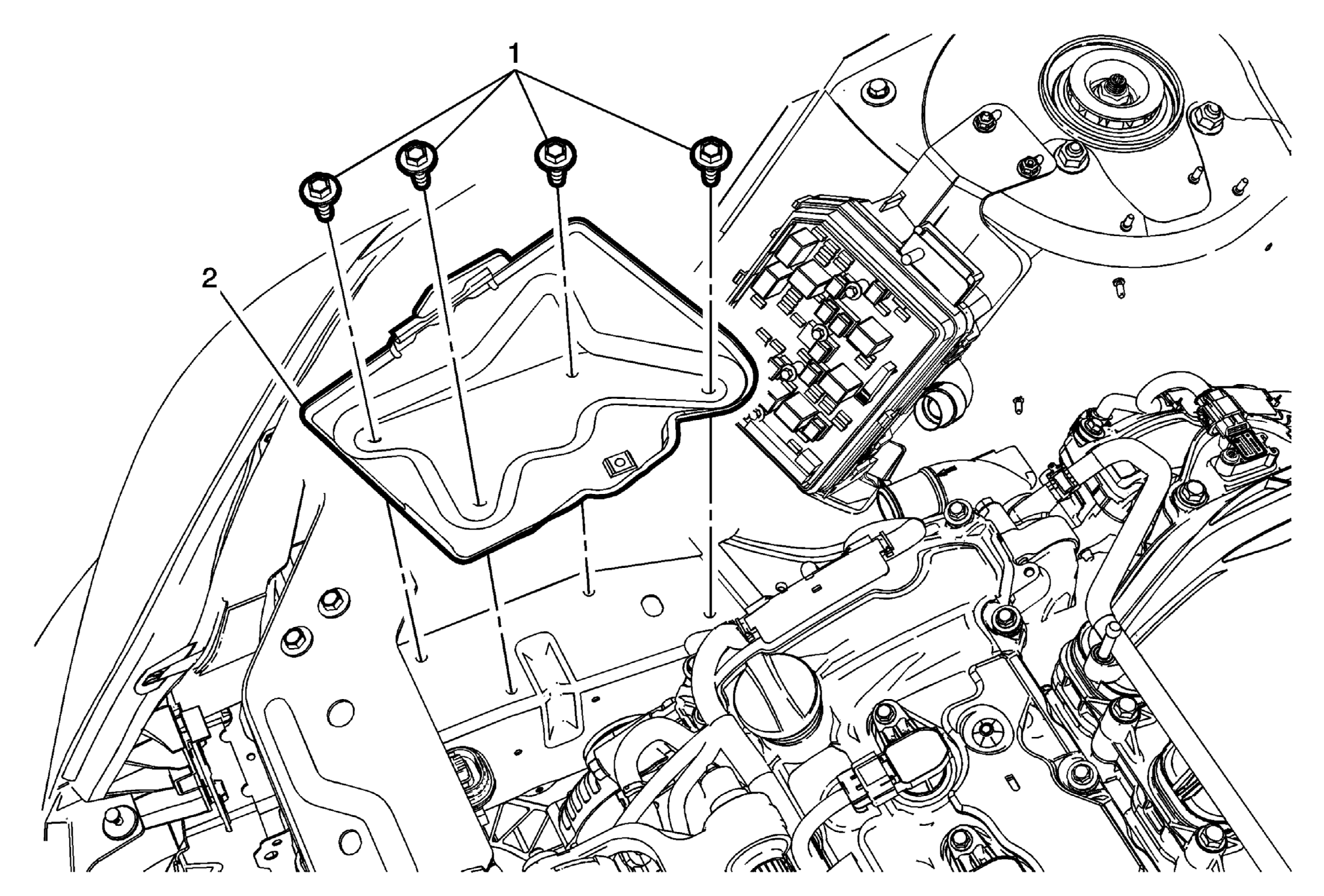

Fig 1: Battery Tray & Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the battery. Refer to Battery Replacement
1	Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in).
2	Battery Tray TIP: Unclip the harness retainers from the battery tray.
