Oxygen Sensors

Oxygen Sensors

Component Name Callout
Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 1
Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 2
Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 3
Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 4

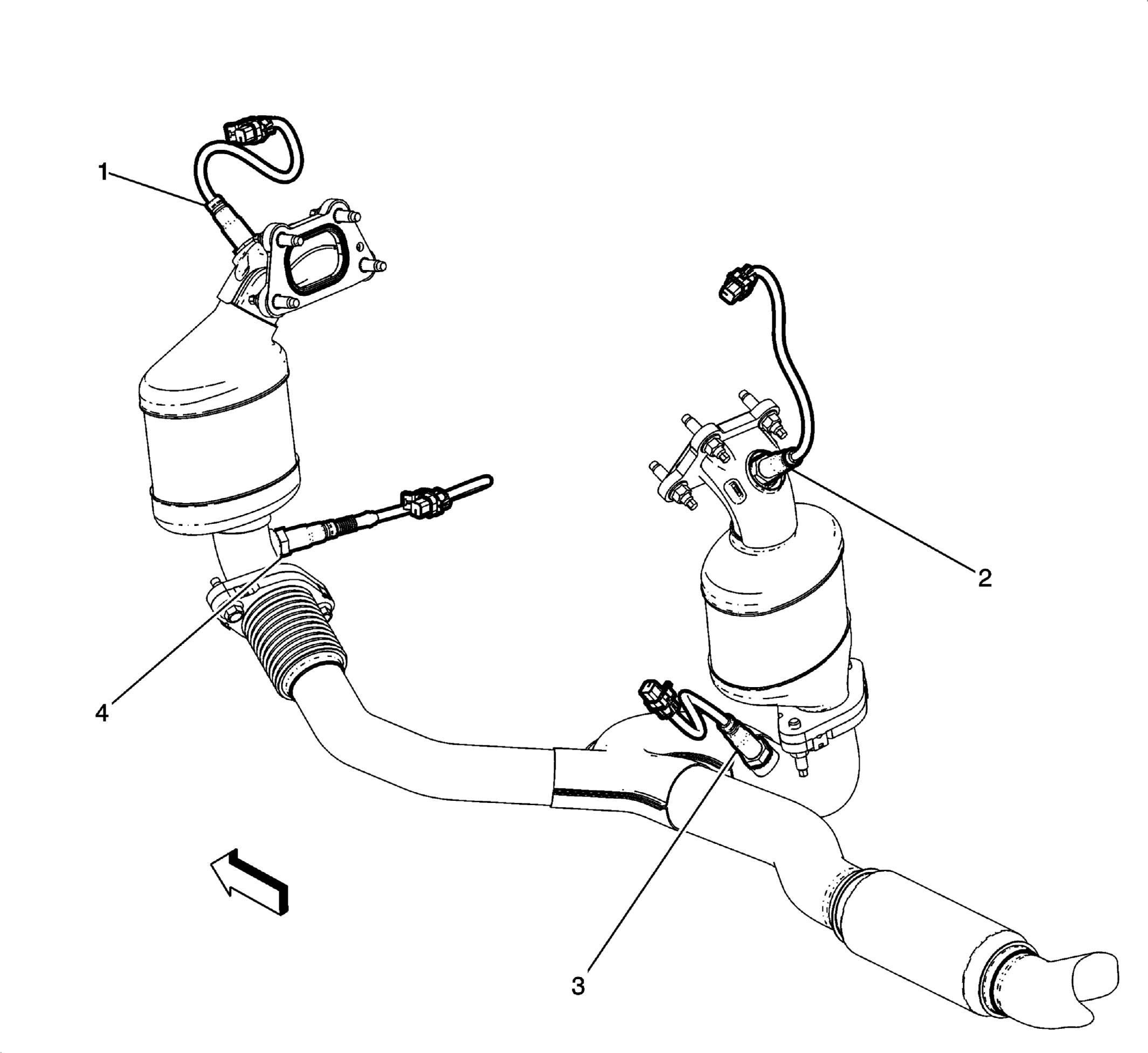

Fig 1: Oxygen Sensors (LFX)
GM2597137Courtesy of GENERAL MOTORS COMPANY
