Front Seat Belt Buckle Replacement

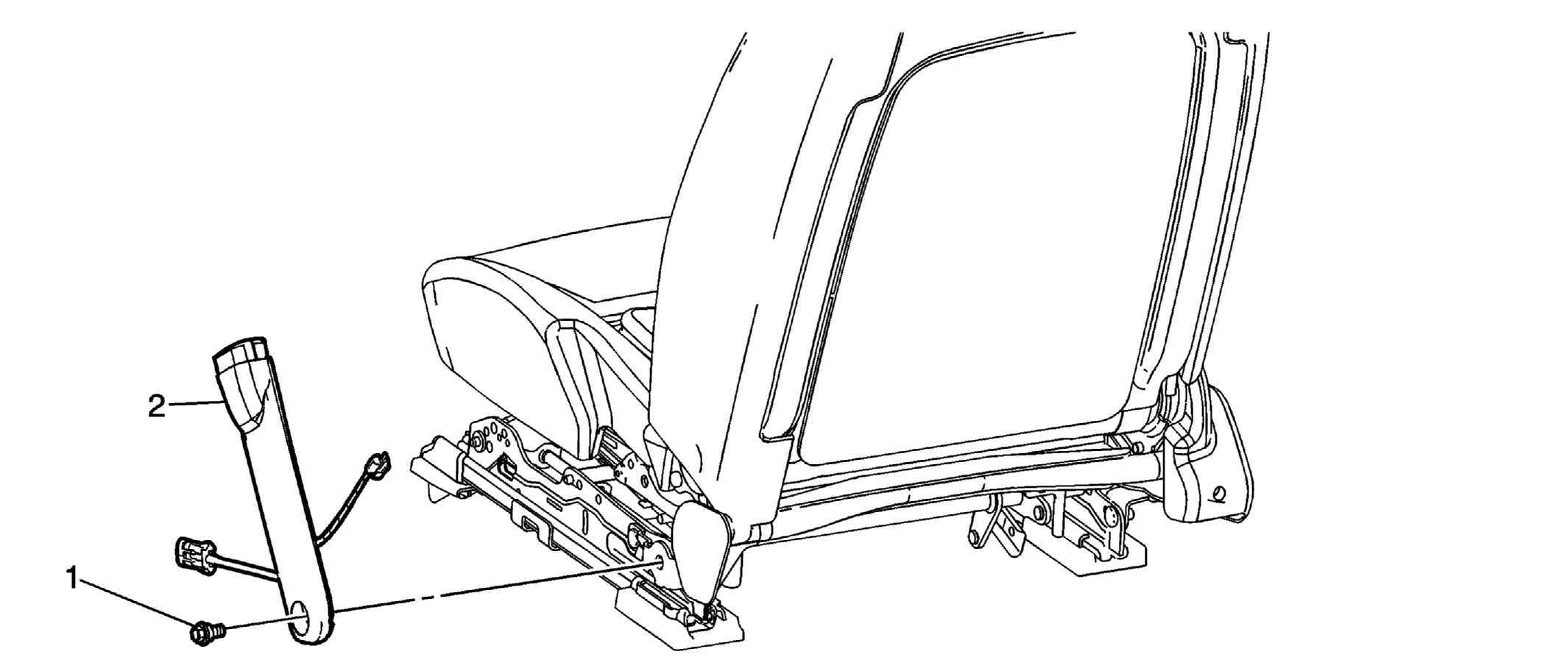

Fig 1: Front Seat Belt Buckle & Bolt
GM1601429Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Buckle Replacement

Callout Component Name
Preliminary Procedure
Remove the front seat. Refer to Front Seat Removal and Installation - Bucket (Impala) .
1 Seat Belt Buckle Bolt
CAUTION:

Refer to Fastener Caution .


TIP:  Disconnect the electrical connector.
Tighten
42 N.m (31 lb ft)
2 Seat Buckle Assembly Belt
