Component Locations

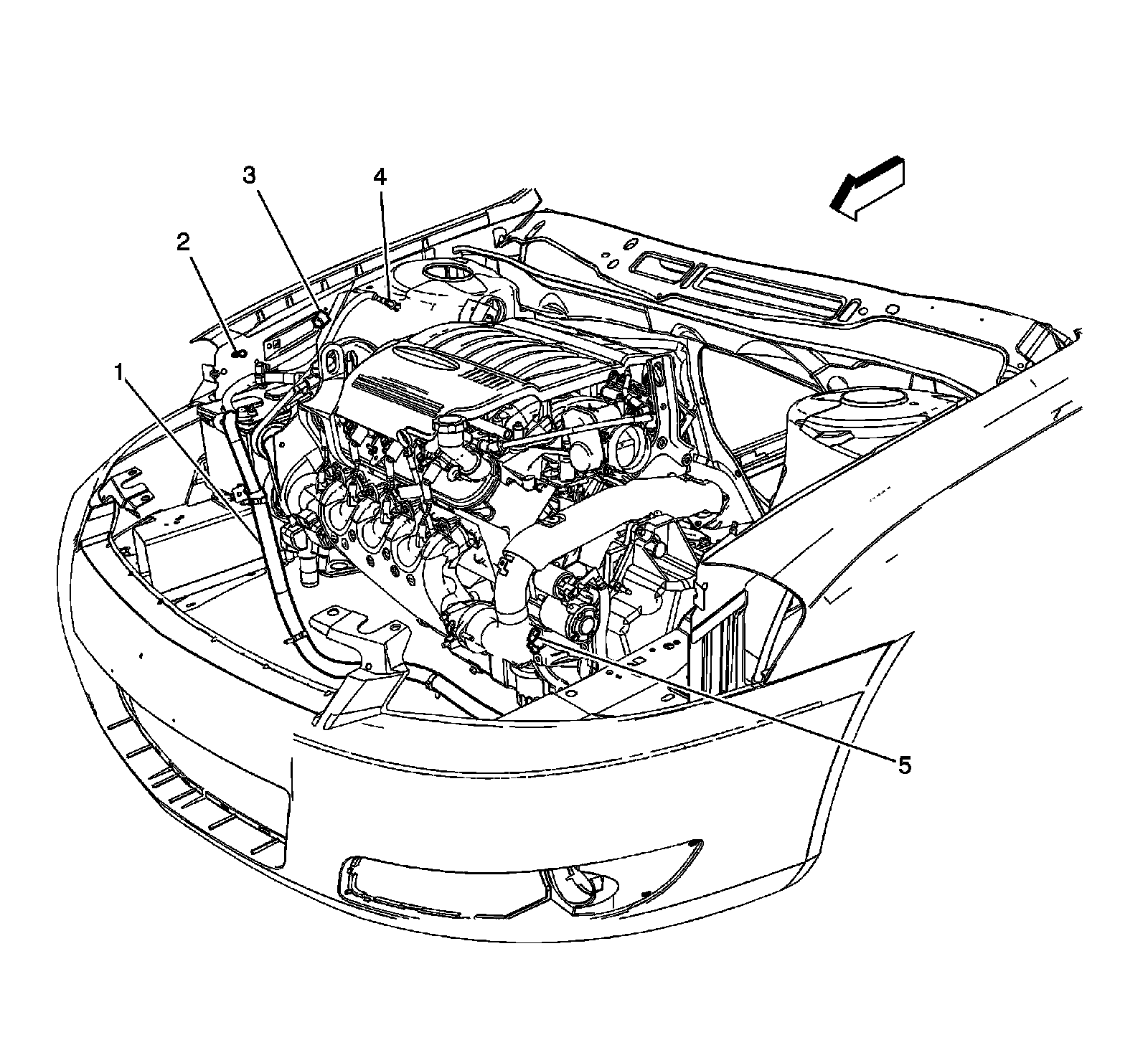

Ground Views

G102





1 - Battery Cables

2 - G102

3 - X105

4 - Positive Voltage Stud

5 - G111
