Multifunction Switch 1 - Instrument Panel
Component Connector End Views

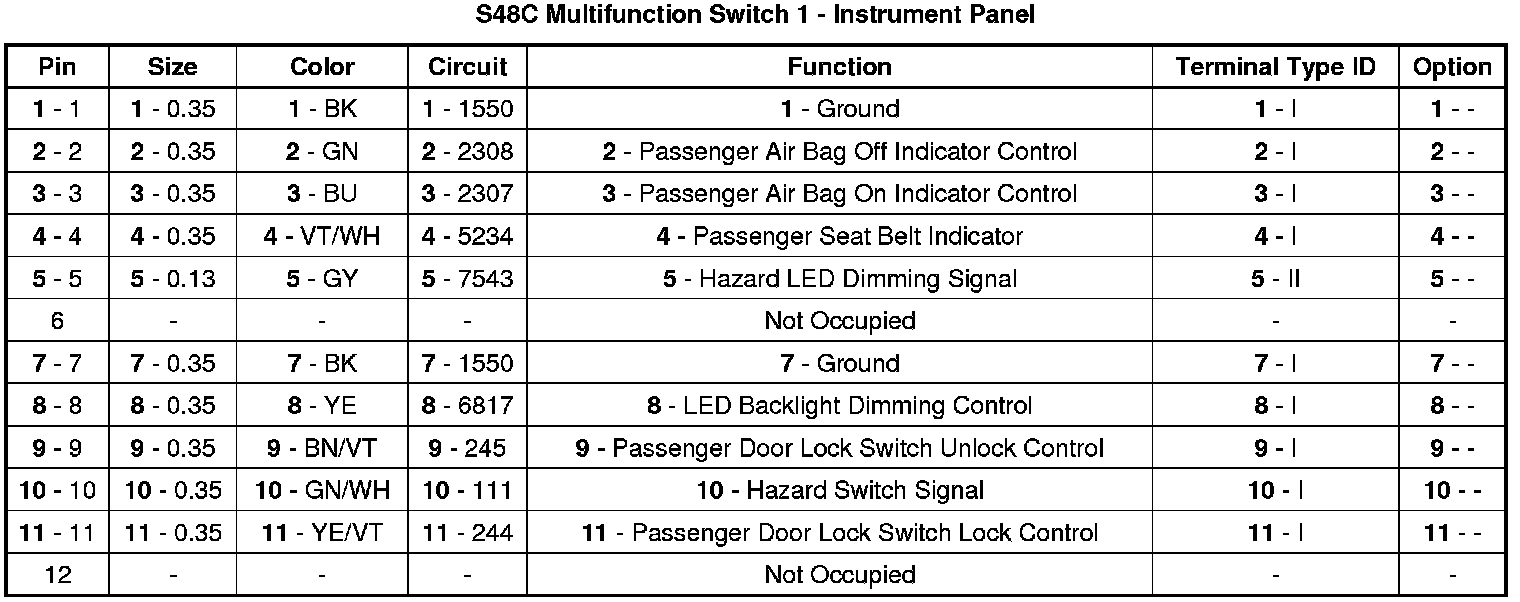

S48C Multifunction Switch 1 - Instrument Panel
