Timing Component Alignment Marks: Locations

The engine is timed top-dead center exhaust stroke.

Ensure the intake camshaft notch is in the 10 o'clock position (2) and the exhaust camshaft notch is in the 7 o'clock position (1). The number 1 piston should be at top dead center (TDC), crankshaft key at 12 o'clock.

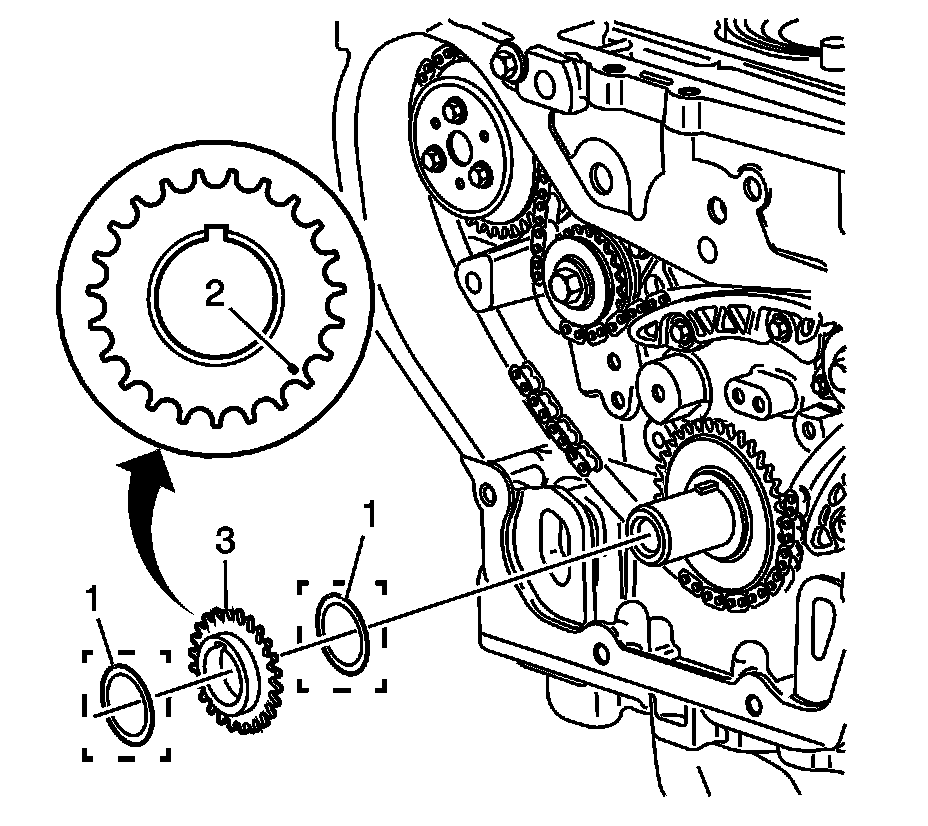

Install a friction washer (1), if equipped.

Install the timing chain drive sprocket (3) to the crankshaft with the timing mark (2) in the 5 o'clock position and the front of the sprocket facing out.

The outer spacer/washer (1) is in between the crank/balancer pulley and the lower timing gear and may remain in place when the pulley is removed. The spacer/washer (1) has a dot/mark on its surface that may be mistaken for the lower timing mark, and blocks the proper timing mark on the gear from view. The outer spacer/washer (1) must be removed when timing the engine in order to view the correct timing mark on the lower crank gear.

Install a second friction washer (1), if equipped.





There are three colored links on the timing chain. Two links are of matching color, and one link is of a unique color. Use the following procedure to line up the links with the actuators. Orient the chain so that the colored links are visible.

Assemble the intake camshaft actuator into the timing chain with the timing mark lined up with the uniquely colored link (1).





Route the timing chain around the crankshaft sprocket and line up the first matching colored link (1) with the timing mark on the crankshaft sprocket, in approximately the 5 o'clock position.

Refer to Camshaft Timing Chain, Sprocket, and Tensioner Installation. Camshaft Timing Chain, Sprocket, and Tensioner Installation (LAF, LEA, or LUK)
