Power, Ground and Low Speed GMLAN

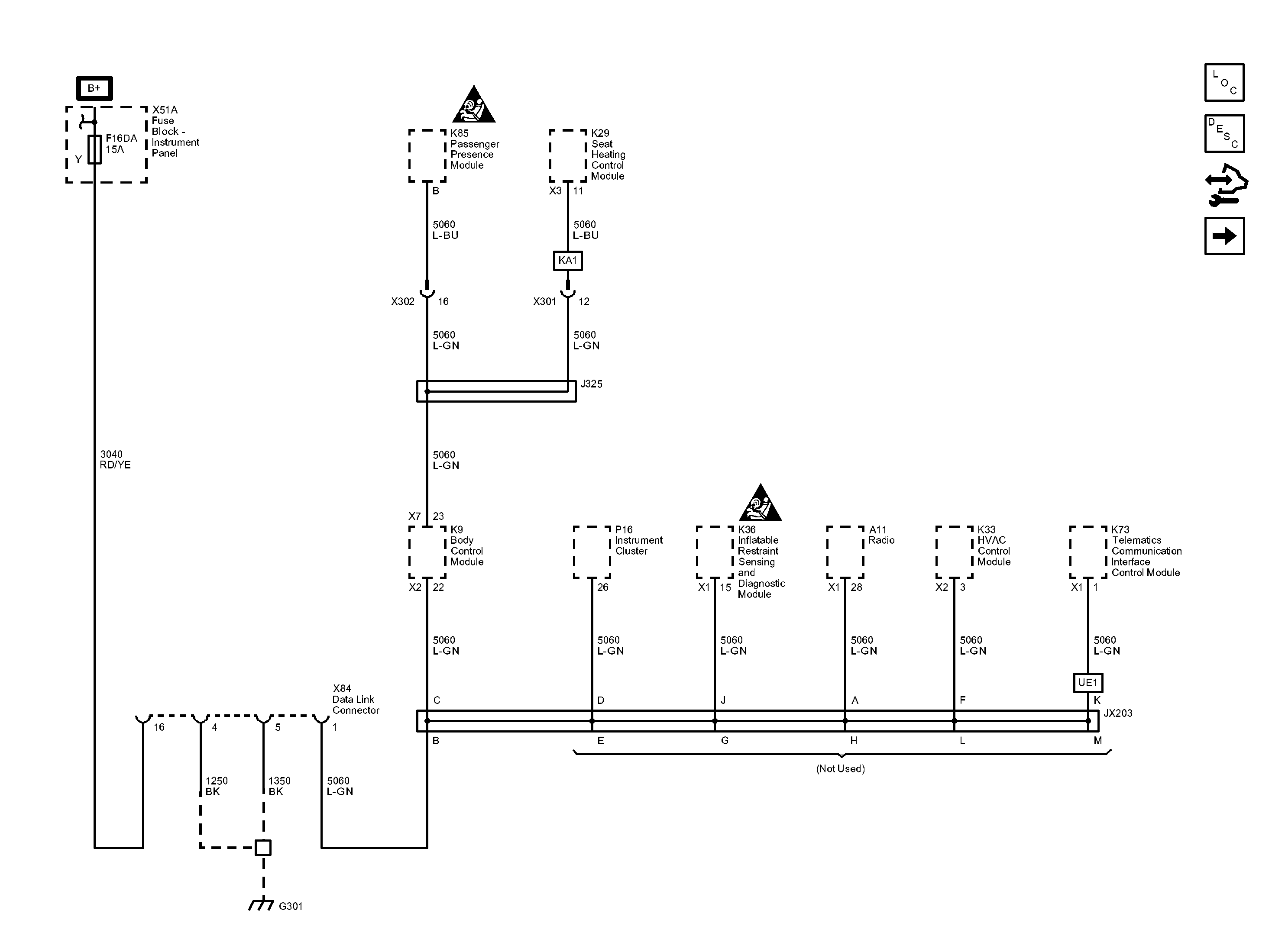

Fig 1: Power, Ground and Low Speed GMLAN Wiring Schematic
GM2779794Courtesy of GENERAL MOTORS COMPANY
