Front Side Door Window Replacement

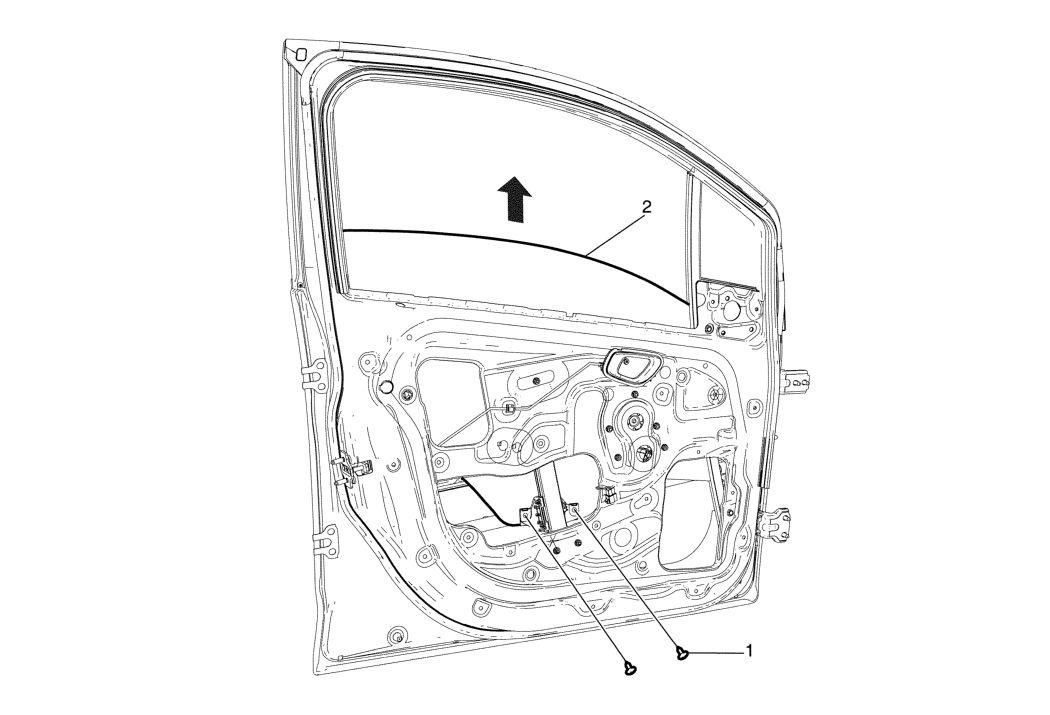

Fig 1: Front Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Position the window approximately half way down in the door. Remove the water deflector. Remove the outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .
1	Front Side Door Window Regulator Sash Screw (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Side Door Window Procedure Loosen the window regulator sash screws, pull upward to release the window from the sash. Rotate the front door window as necessary to remove it from the door.

Callout

Component Name

Preliminary Procedure

Position the window approximately half way down in the door.
Remove the water deflector.
Remove the outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .

Front Side Door Window Regulator Sash Screw (Qty 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Front Side Door Window

Procedure

Loosen the window regulator sash screws, pull upward to release the window from the sash.
Rotate the front door window as necessary to remove it from the door.
