Radiator Support Replacement

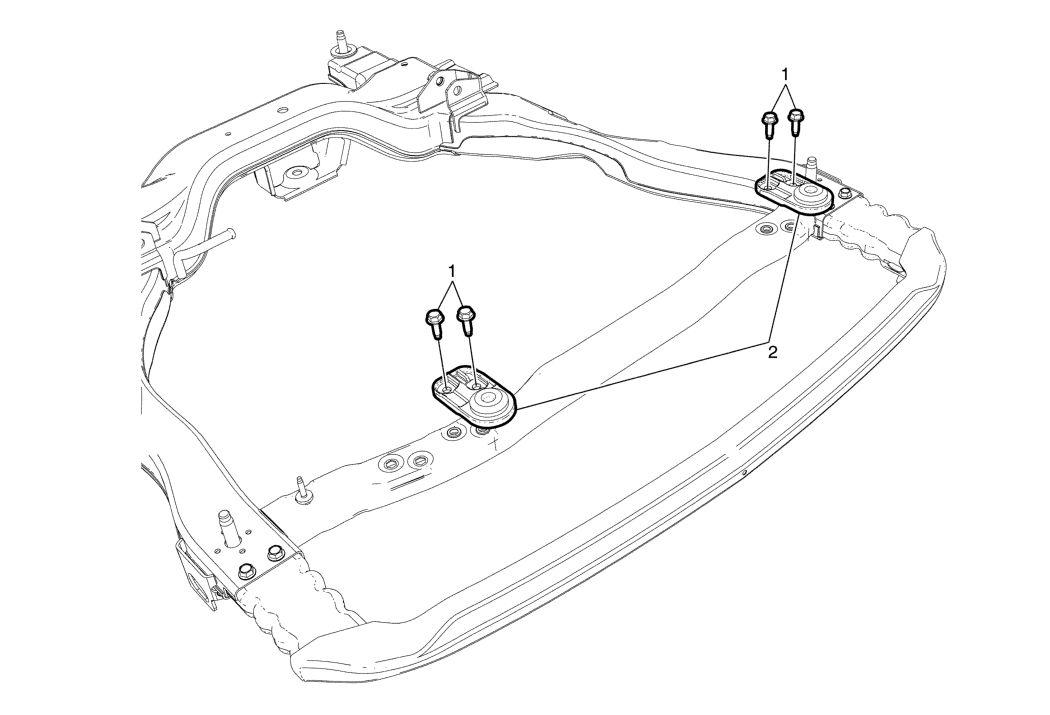

Fig 1: Radiator Support
GM2308916Courtesy of GENERAL MOTORS COMPANY
Radiator Support Replacement

Callout Component Name
Preliminary Procedure
Disconnect the condenser from the radiator. Refer to Radiator Replacement .
1 Radiator Support Mounting Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 (16 lb ft)
2 Radiator Support
Procedure
Rotate the radiator support and disconnect it from the radiator.
