Front Compartment Splash Shield Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

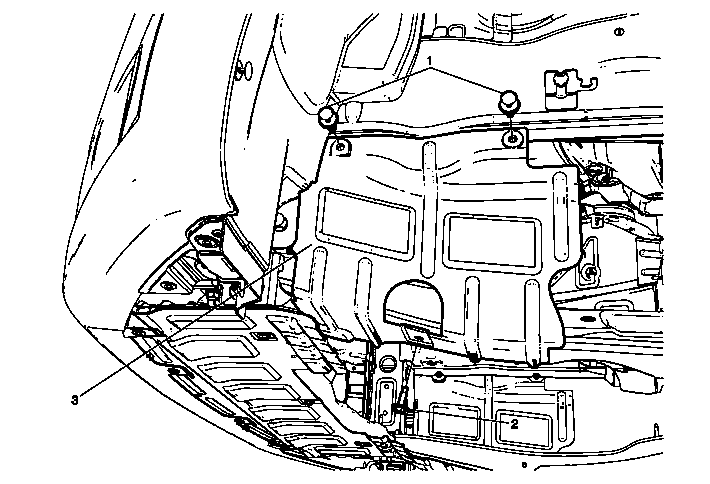

Fig 1: Front Compartment Splash Shield
GM2327301Courtesy of GENERAL MOTORS COMPANY
Front Compartment Splash Shield Replacement

Callout Component Name
1 Front Compartment Splash Shield Retainer (Qty 2)
2 Front Compartment Splash Shield Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
3 Front Compartment Splash Shield
