Mobile Telephone Microphone Replacement
WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Mobile Telephone Microphone Replacement

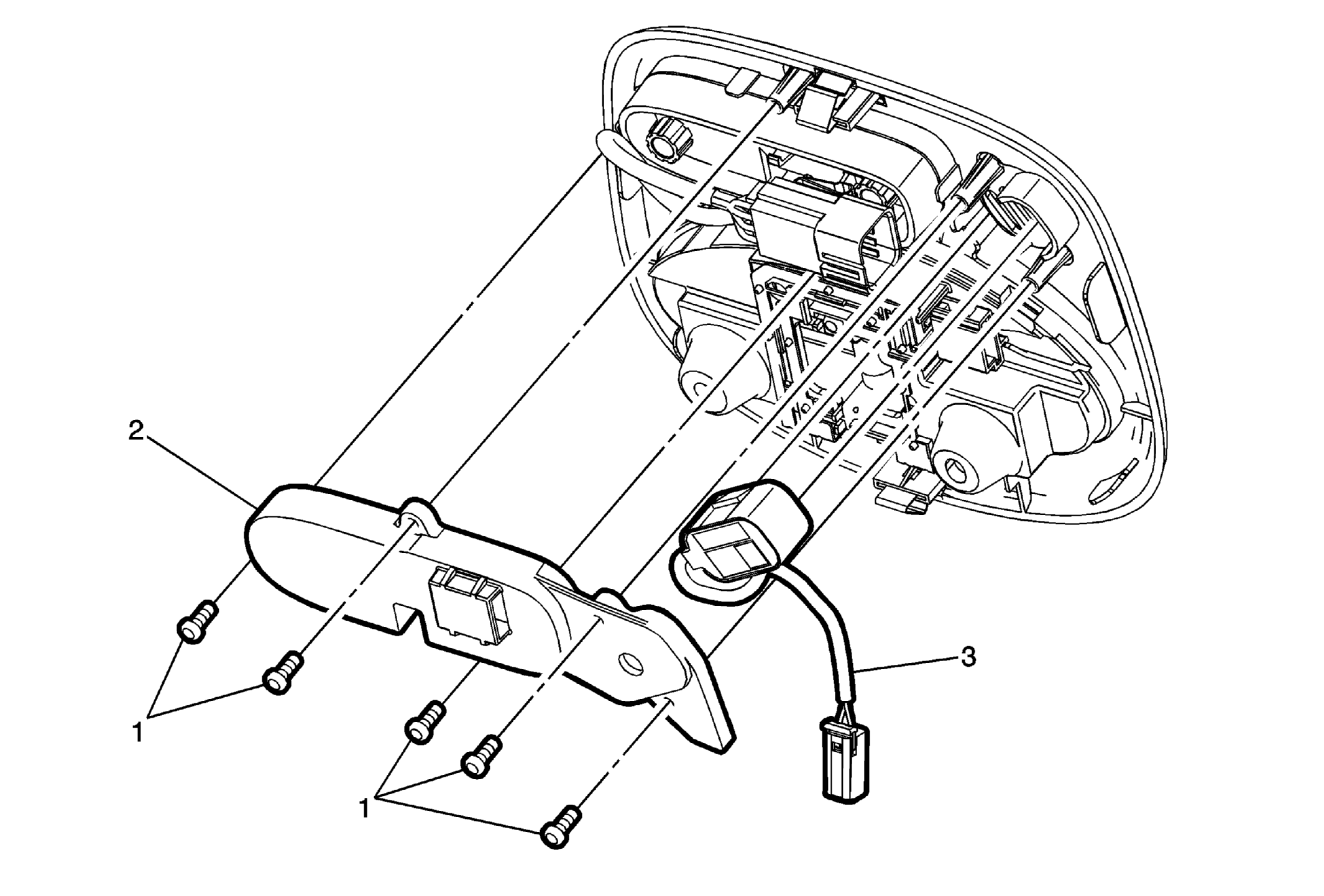

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the center courtesy lamp. Refer to Center Courtesy Lamp Replacement . |
|
| 1 | Dome Lamp Housing Fastener (Qty: 5)
CAUTION:
Refer to Fastener Caution . |
| 2 | Dome Lamp Housing |
| 3 | Mobile Telephone Microphone |
