Installation Procedure

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

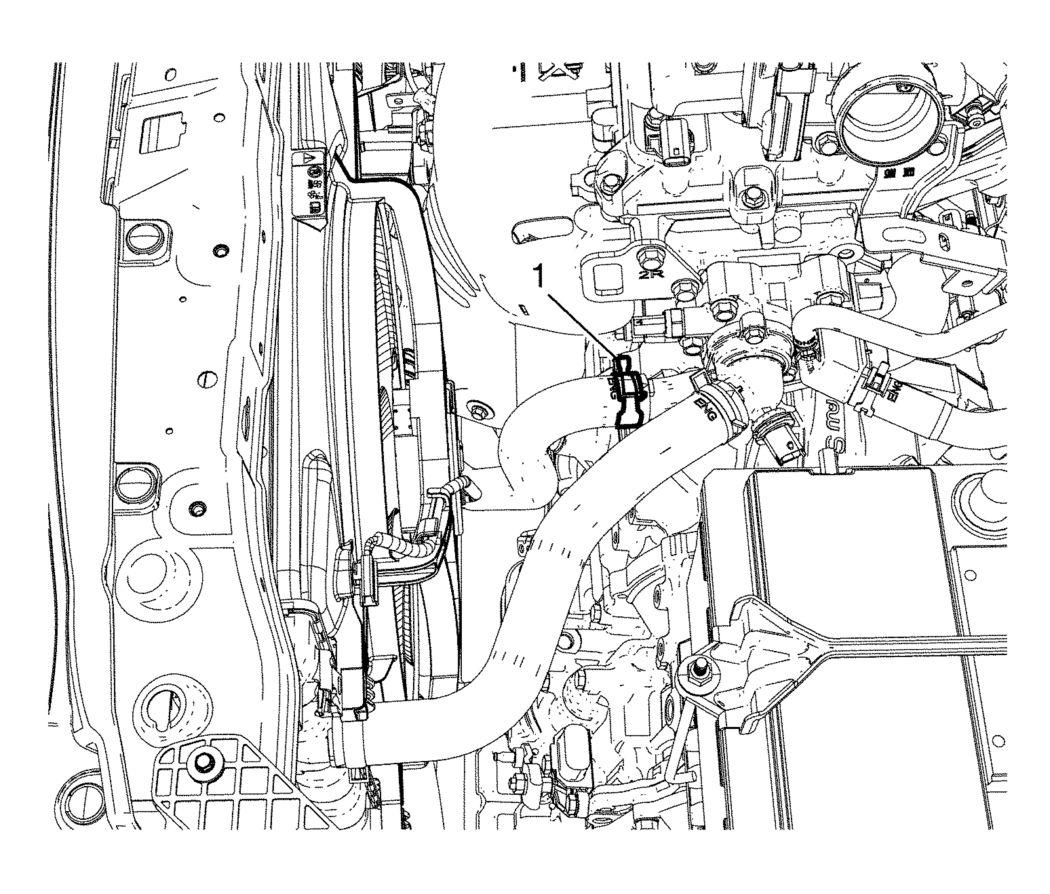

    Fig 1: Radiator Outlet Hose Clamp
    GM2753078Courtesy of GENERAL MOTORS COMPANY
  1. Install the radiator outlet hose to the water pump outlet pipe.
  2. Install the radiator outlet hose clamp (1).
  3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  4. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .

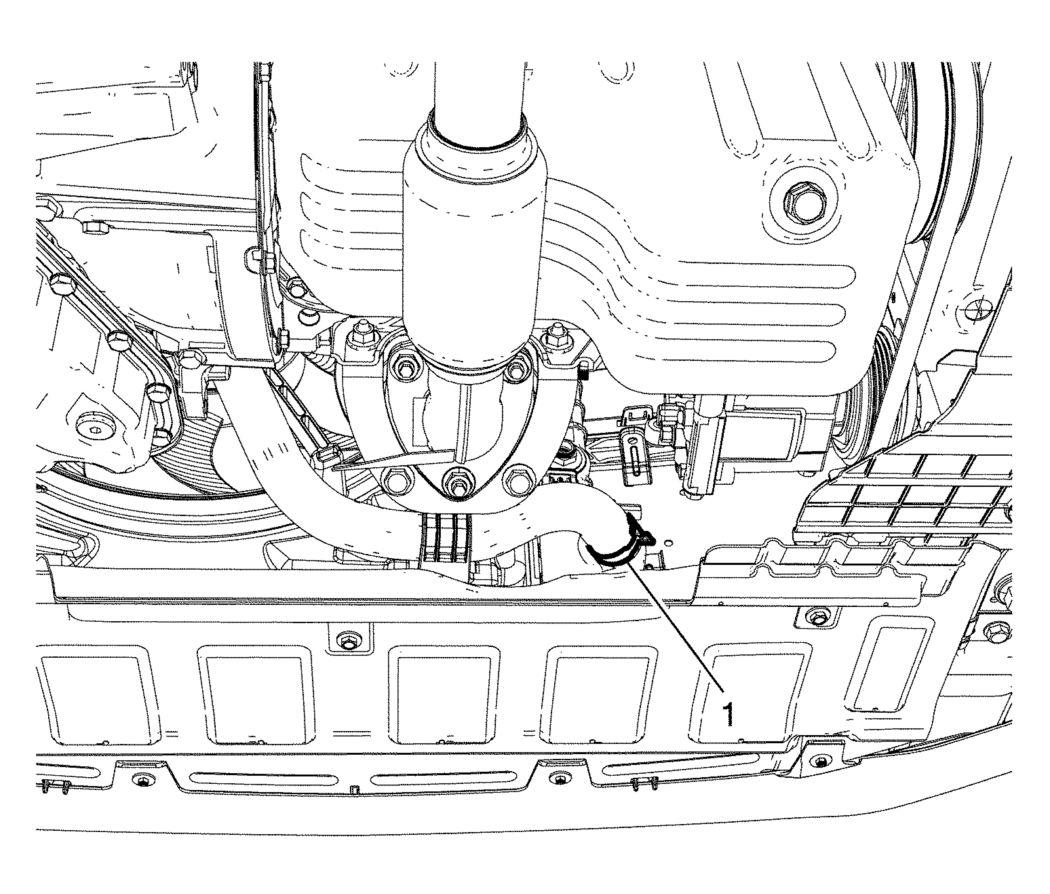

    5. Fig 2: Radiator Outlet Hose Clamp
    GM2753077Courtesy of GENERAL MOTORS COMPANY
  5. Install the radiator outlet hose to the radiator.
  6. Install the radiator outlet hose clamp (1).
  7. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
  8. Fill the cooling system. Refer to Cooling System Draining and Filling .
