Installation Procedure
WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
- Install the brake caliper mounting bracket to the steering knuckle.

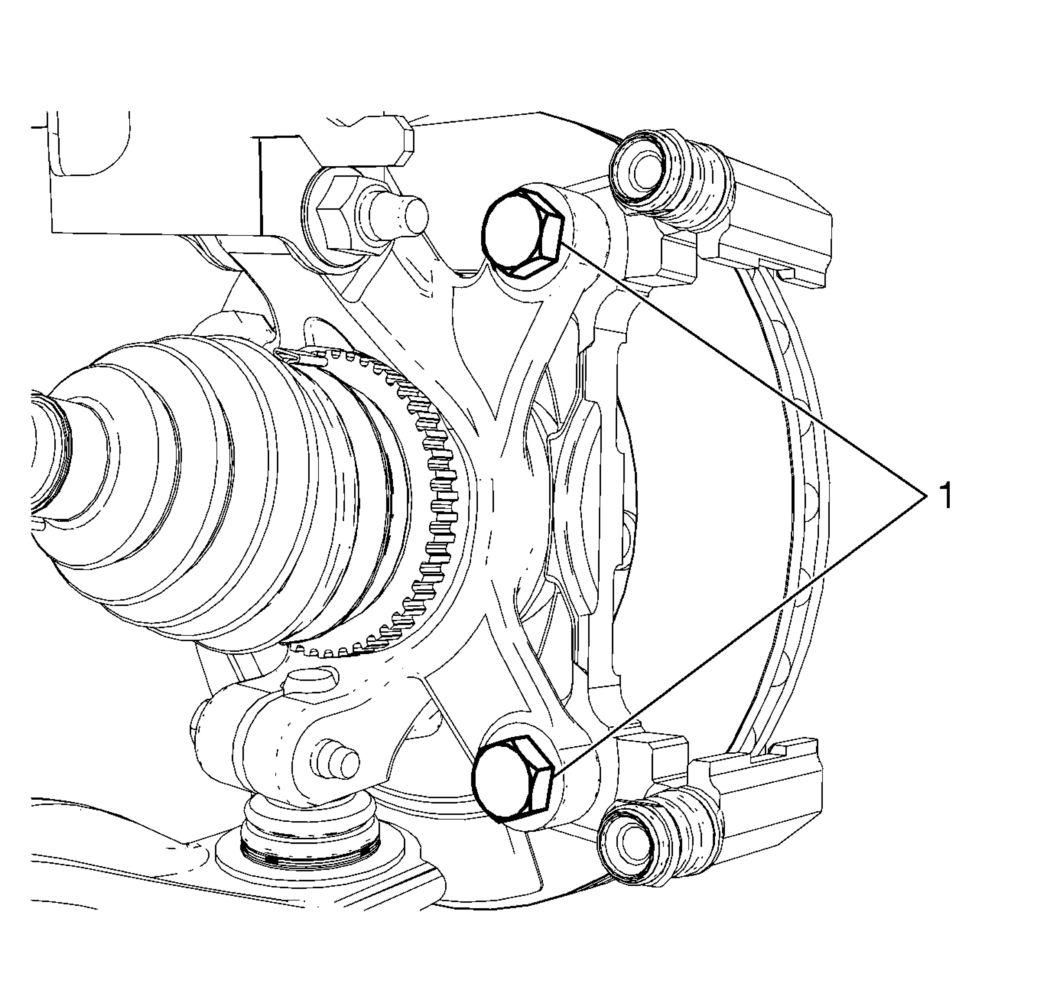

- Install the 2 NEW brake caliper mounting bracket bolts (1) and tighten to 95 N.m (70 lb ft).

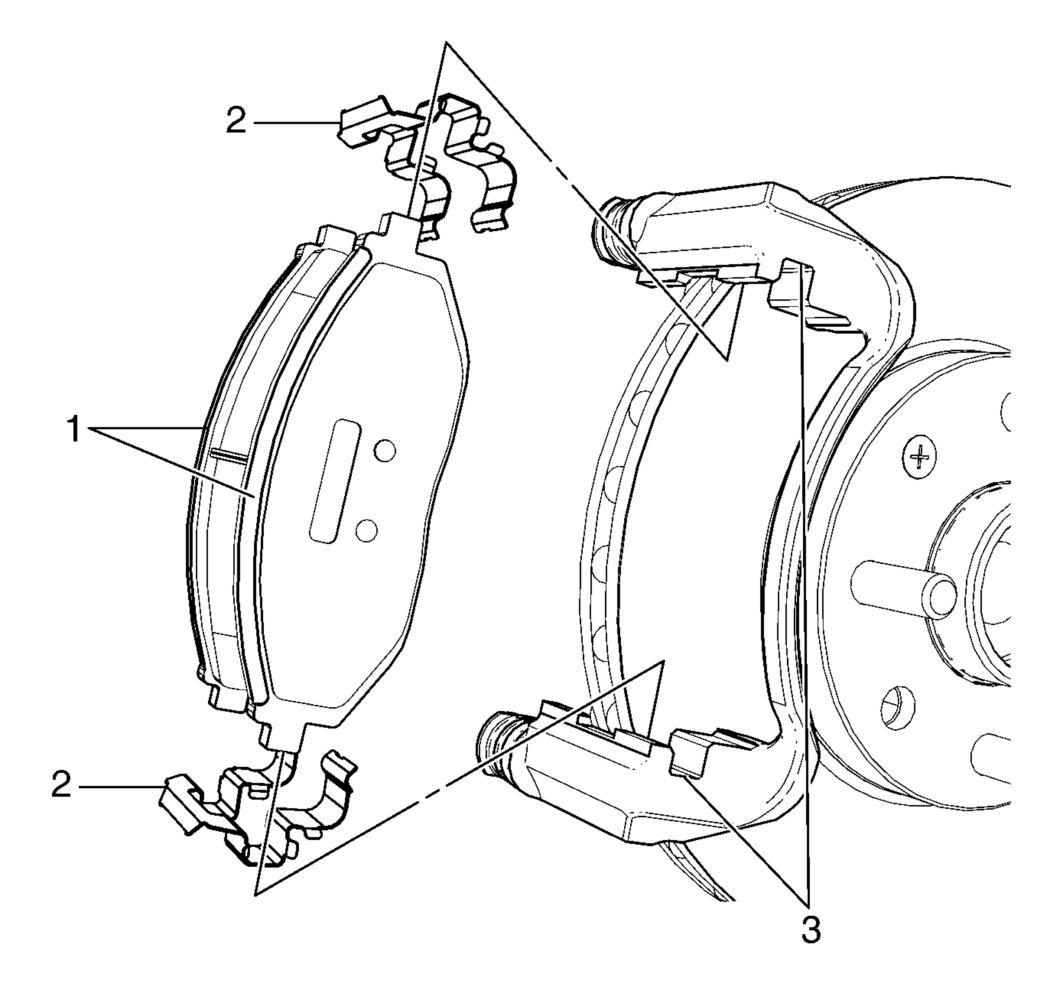

- Apply a very thin coating of high temperature silicone brake lubricant to the pad hardware mating surfaces of the caliper bracket (3) only.
- Clean the brake pad mating surfaces of the brake pad retainers (2).
- Install the brake pad retainers (2) to the brake caliper bracket.
- Install the brake pads (1) to the brake caliper bracket.
- Remove the support and reposition the brake caliper over the brake pads and to the mounting bracket. Refer to Front Brake Caliper Replacement .
CAUTION:
Refer to Fastener Caution .
NOTE:
The wear sensor equipped disc brake pad must be mounted inboard of the rotor with the leading edge of the sensor facing the brake rotor during forward wheel rotation, or at the top of the pad when installed in vehicle position.
