Turn Signal Switch Bracket Replacement

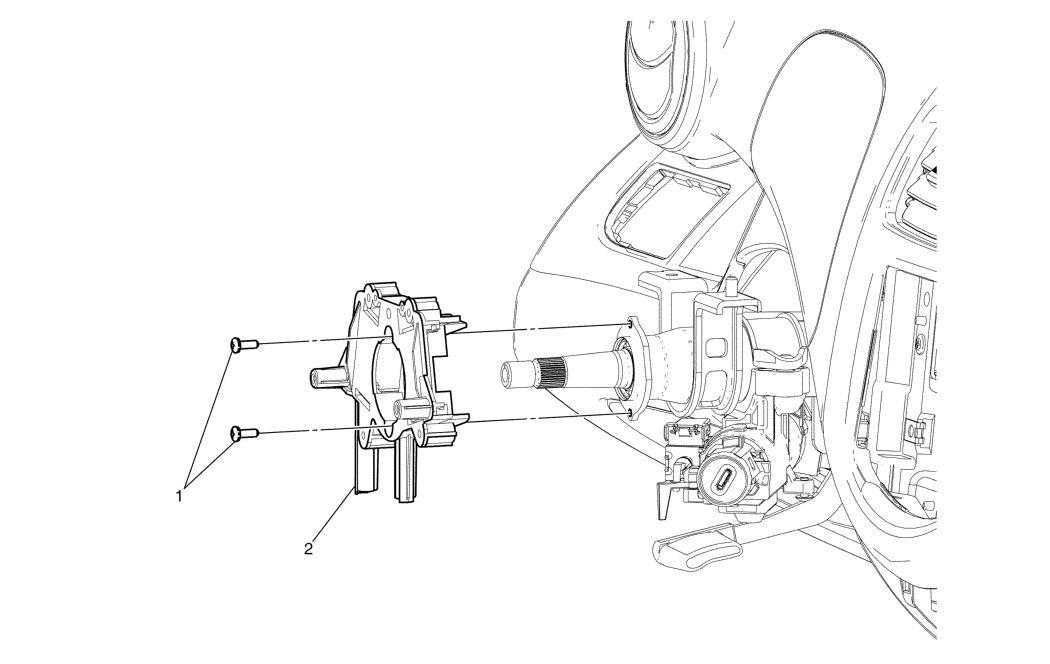

Fig 1: Turn Signal Switch Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement . Remove the turn signal switch. Refer to Turn Signal Switch Replacement . Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement .
1	Turn Signal Switch Bracket Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3.4 (30 lb in)
2	Turn Signal Switch Bracket

Callout

Component Name

Preliminary Procedures

Remove the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement .
Remove the turn signal switch. Refer to Turn Signal Switch Replacement .
Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement .

Turn Signal Switch Bracket Screw (Qty: 2)

CAUTION:

Tighten
3.4 (30 lb in)

Turn Signal Switch Bracket
