Front Lower Control Arm Bushing Replacement

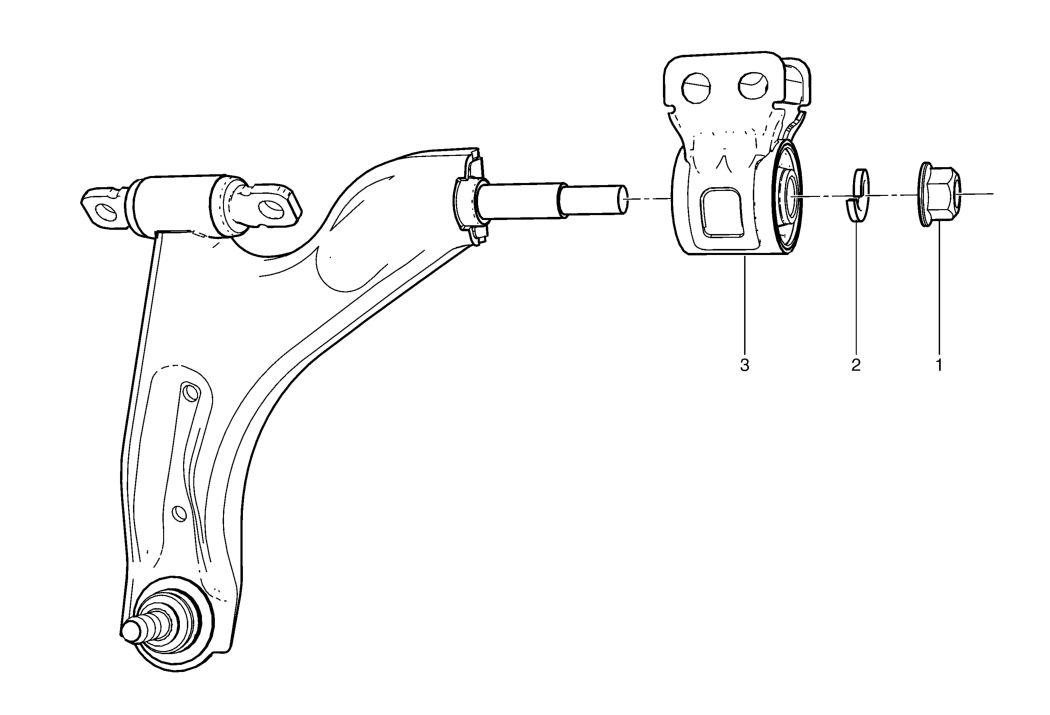

Fig 1: Front Lower Control Arm Bushing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation . Remove the lower control arm. Refer to Lower Control Arm Replacement .
1	Lower Control Arm Rear Bushing Nut CAUTION: Refer to Fastener Caution . TIP: Note the position of the bushing during removal. Tighten 110 N.m + 53° (81 lb ft + 53°)
2	Washer
3	Lower Control Arm Rear Bushing Procedure Hold the rear bushing when tightening the rear bushing bolt.
