Evaporative Emission Canister Replacement

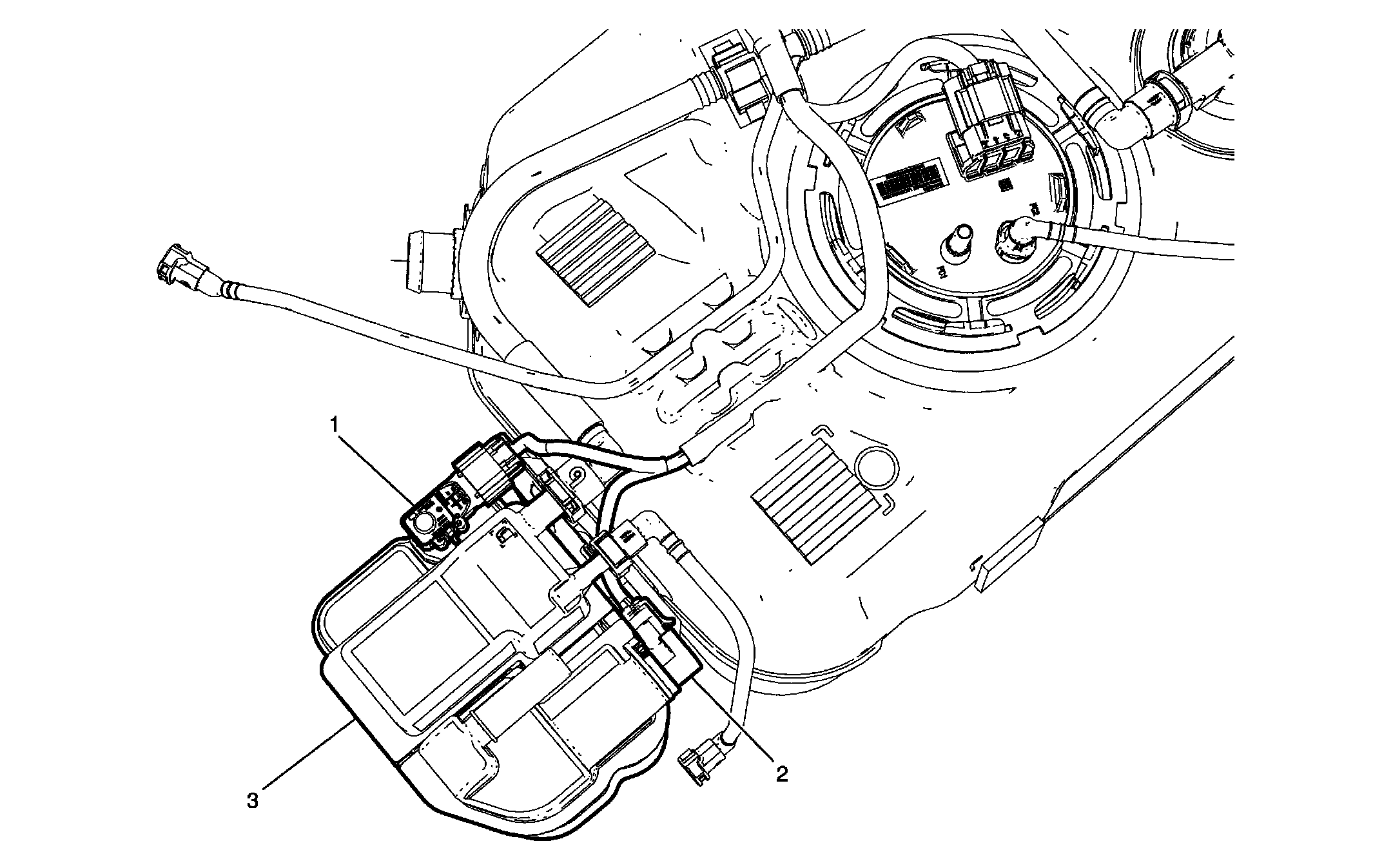

Courtesy of GENERAL MOTORS COMPANY Evaporative Emission Canister Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the fuel tank. Refer to Fuel Tank Replacement .
- Disconnect the vent pipe connector and evaporative purge connector.
|
| 1 |
Fuel Tank Pressure Sensor Procedure
- Disconnect the fuel tank pressure sensor electrical connector.
- Remove the fuel tank pressure sensor.
|
| 2 |
Evaporative Emission Canister Solenoid Valve Procedure
- Disconnect the evaporative emission canister solenoid valve electrical connector.
- Remove the evaporative emission canister solenoid valve.
|
| 3 |
Evaporative Emission Canister
Procedure
Remove the evaporative emission canister pushing up from the evaporative emission canister bracket. |
