Instrument Panel Electrical Center or Junction Block Replacement
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

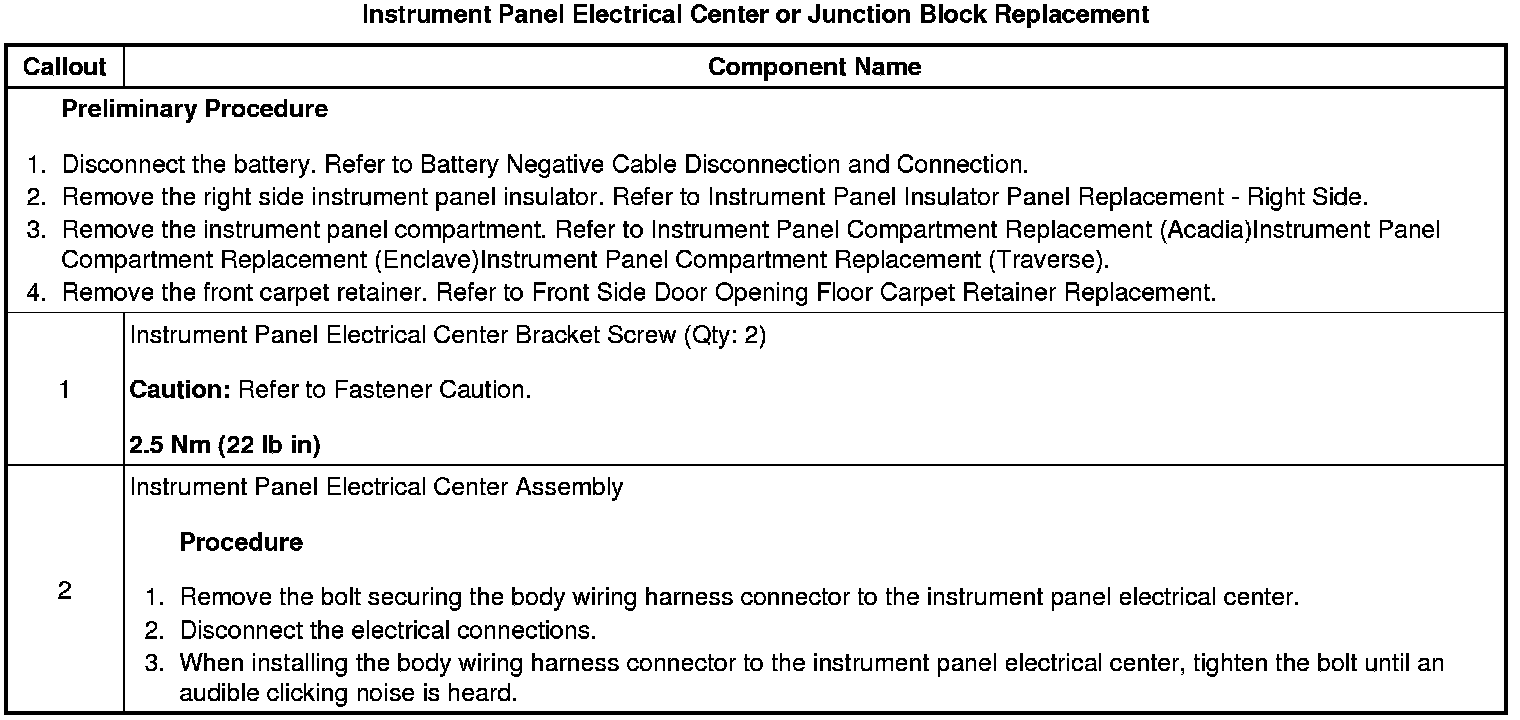

Instrument Panel Electrical Center or Junction Block Replacement
Instrument Panel Electrical Center or Junction Block Replacement
