Transfer Case Disassemble




Transfer Case Disassemble

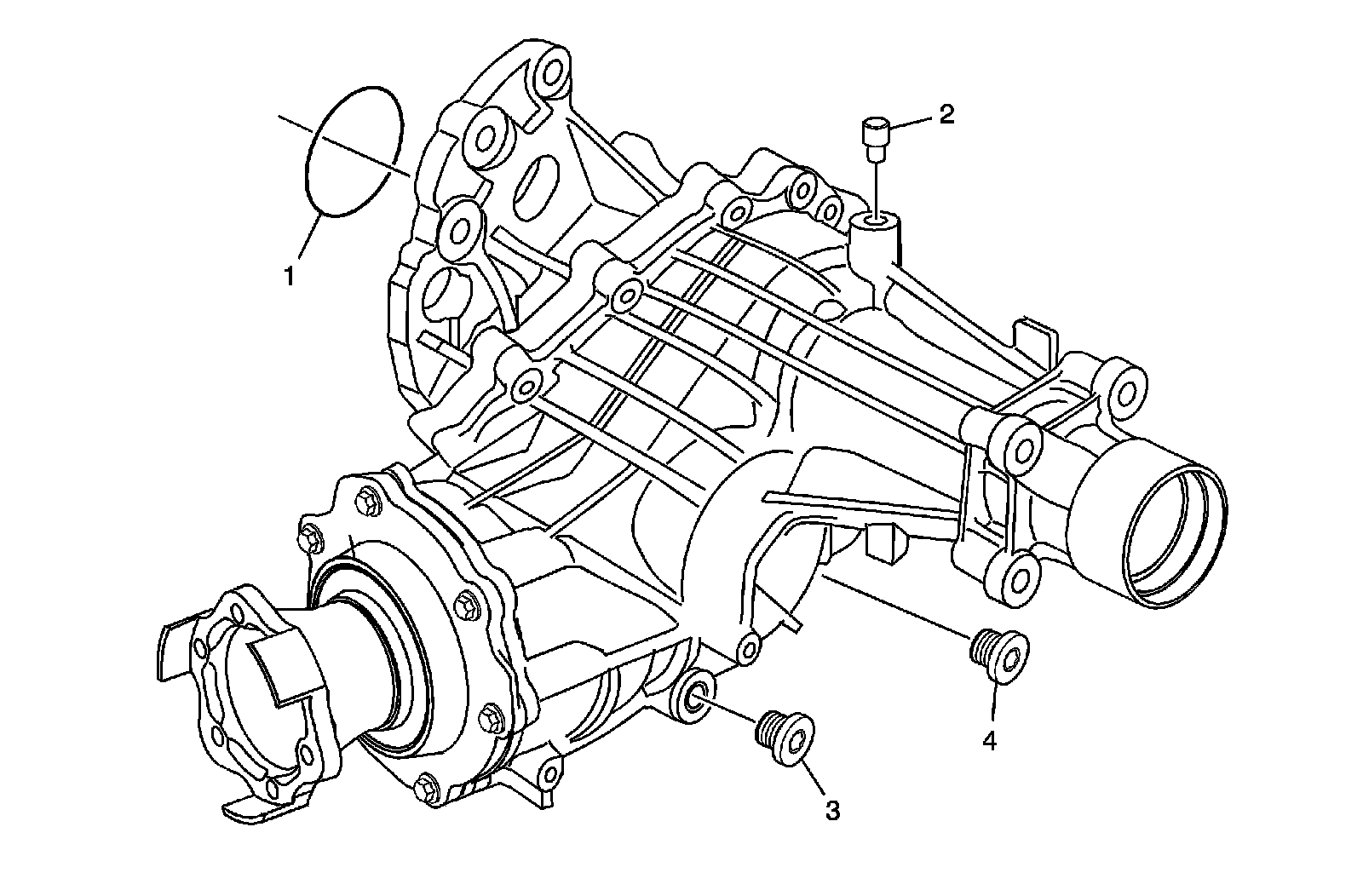

Housing O-ring, Vent Assembly, Drain and Fill Plug Removal

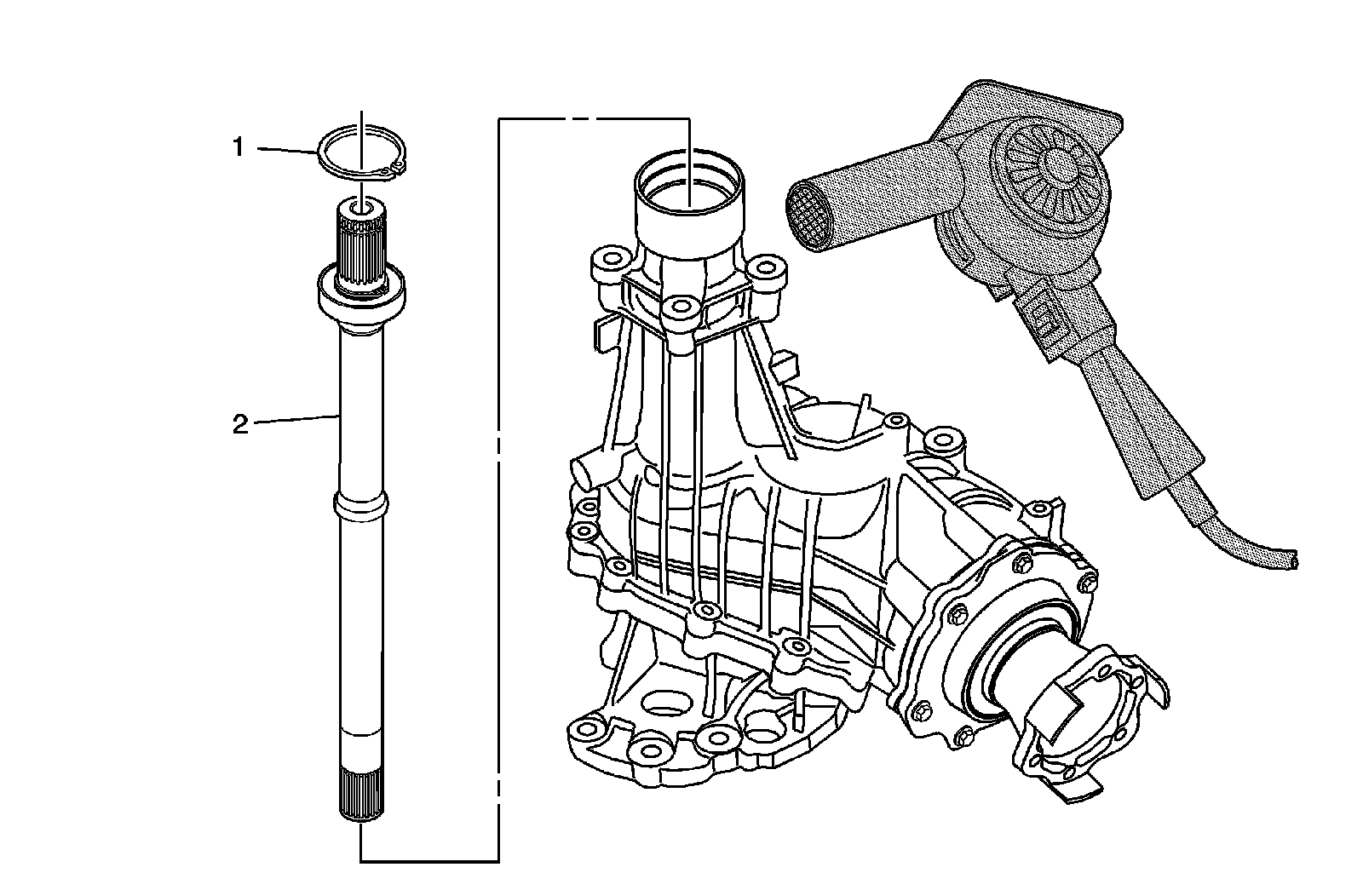

Intermediate Drive Shaft Removal

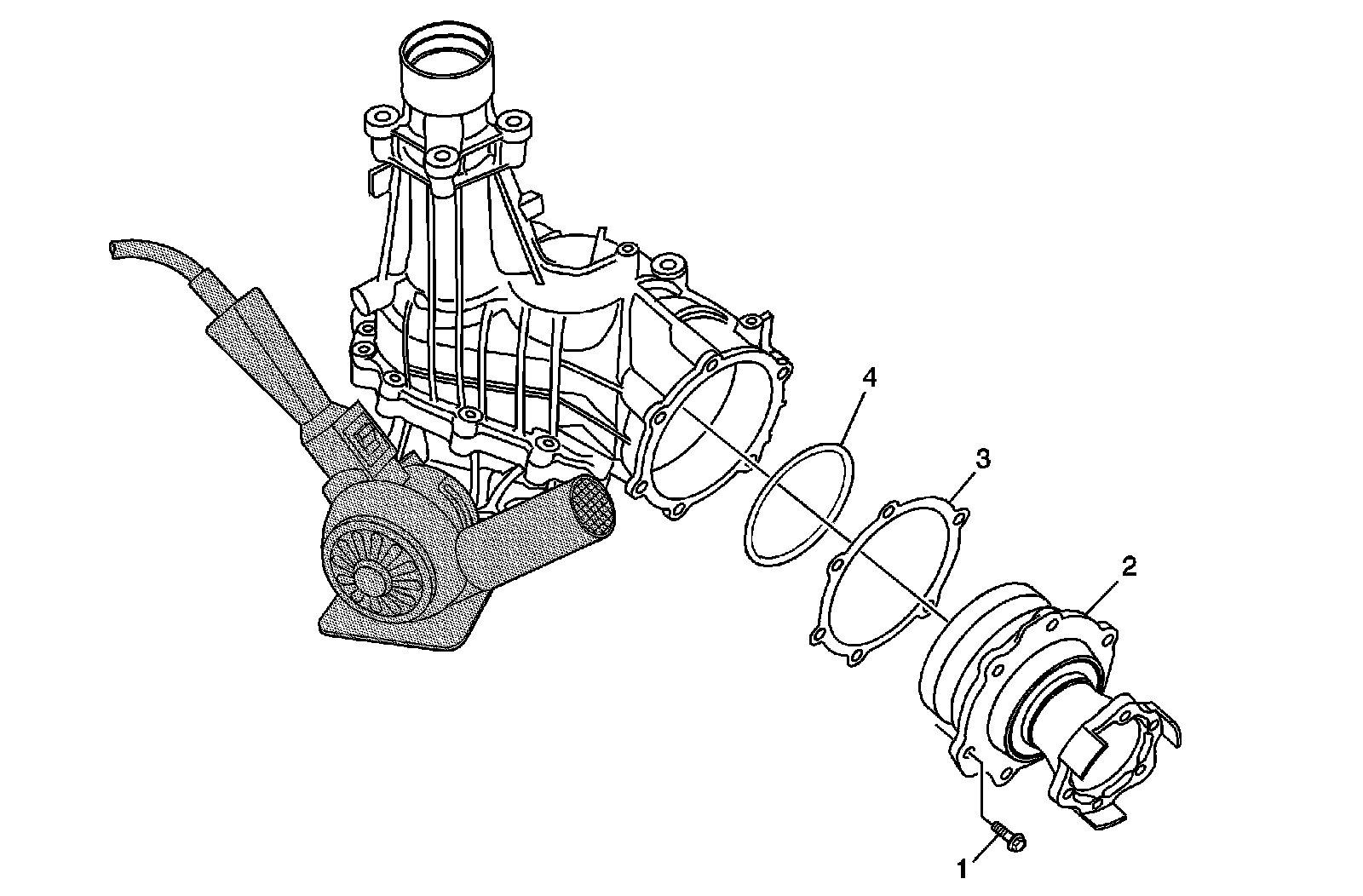

Rear Output Shaft Housing Removal

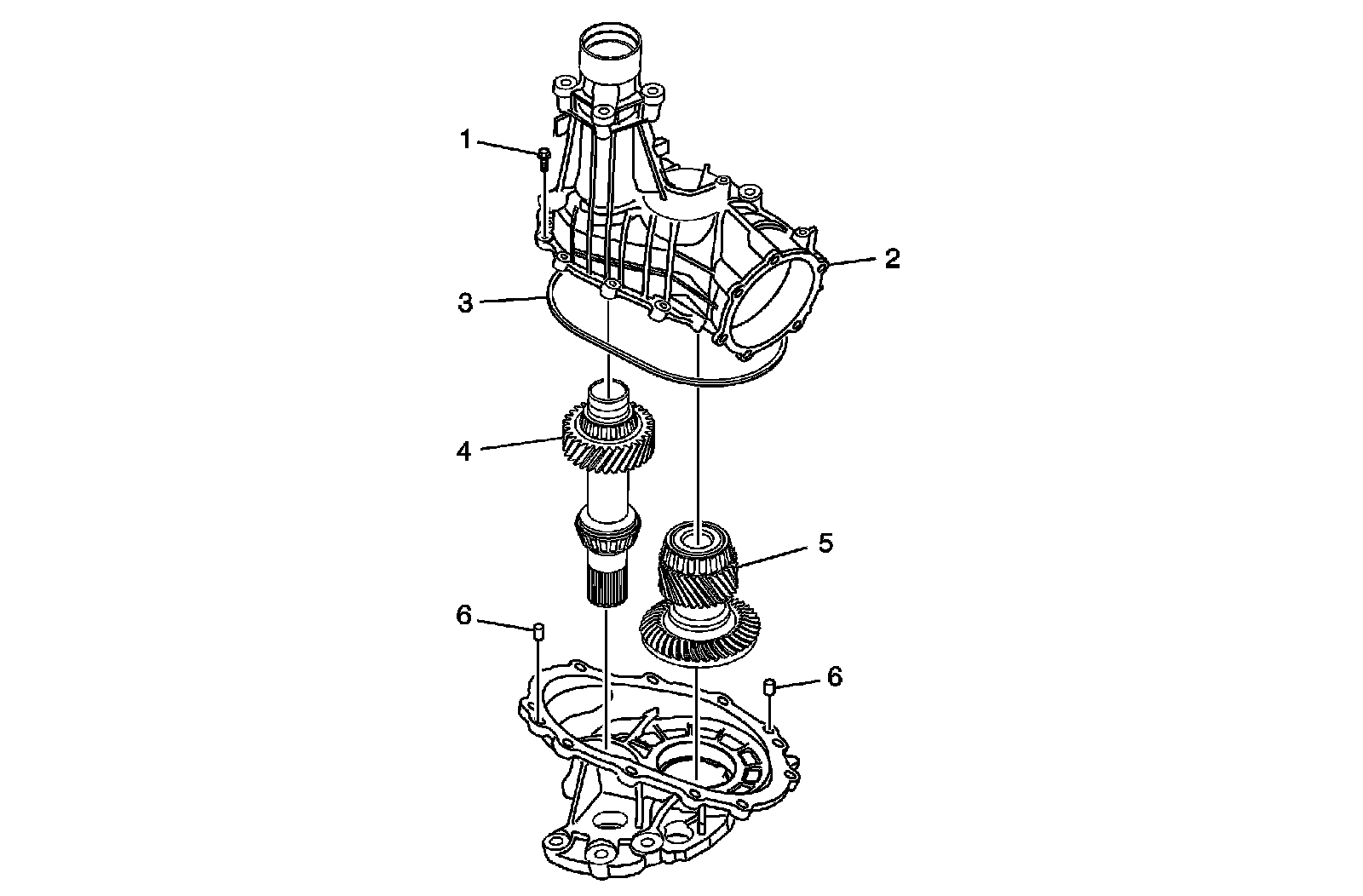

Right Transfer Case, Input and Output Drive Shaft Removal

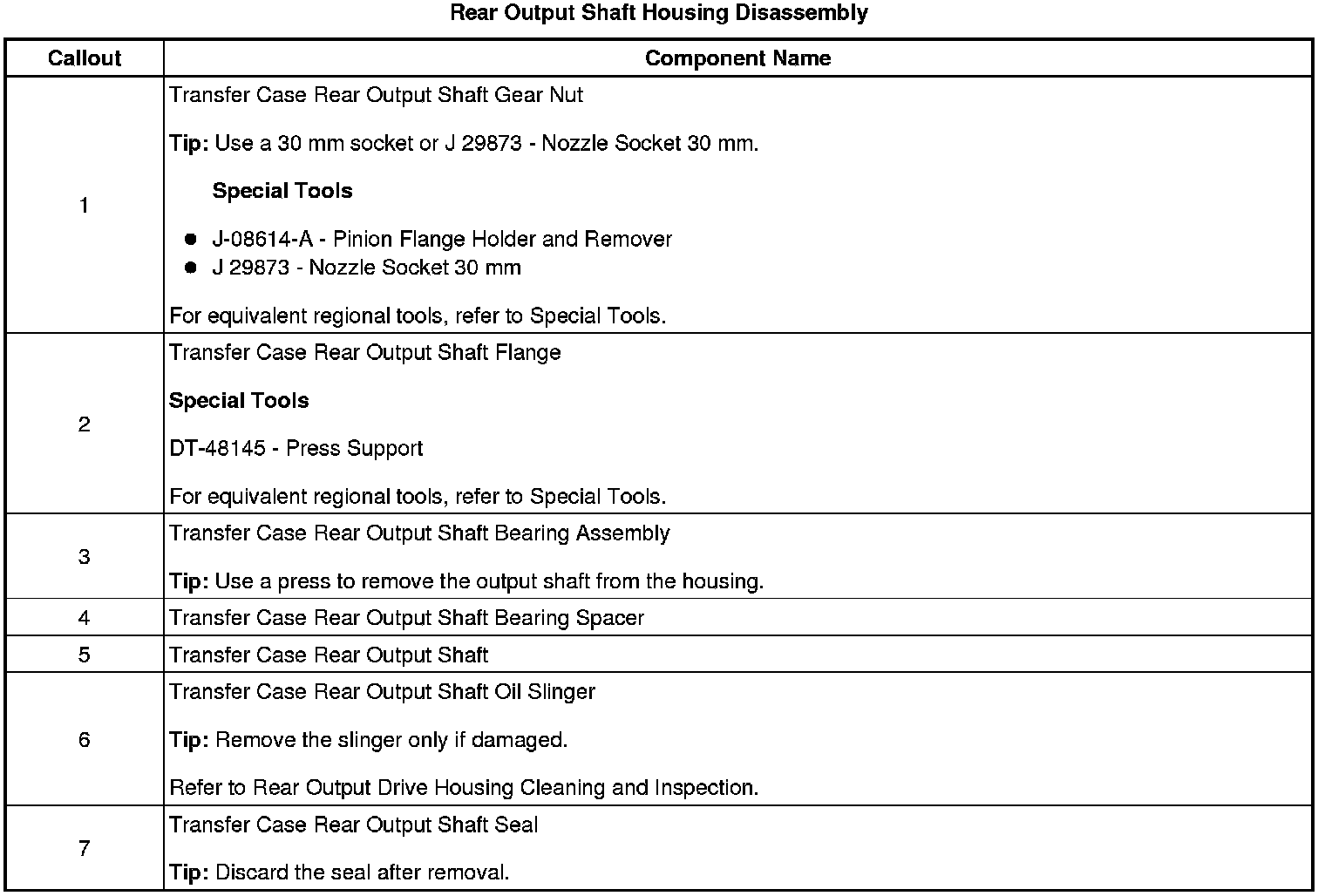

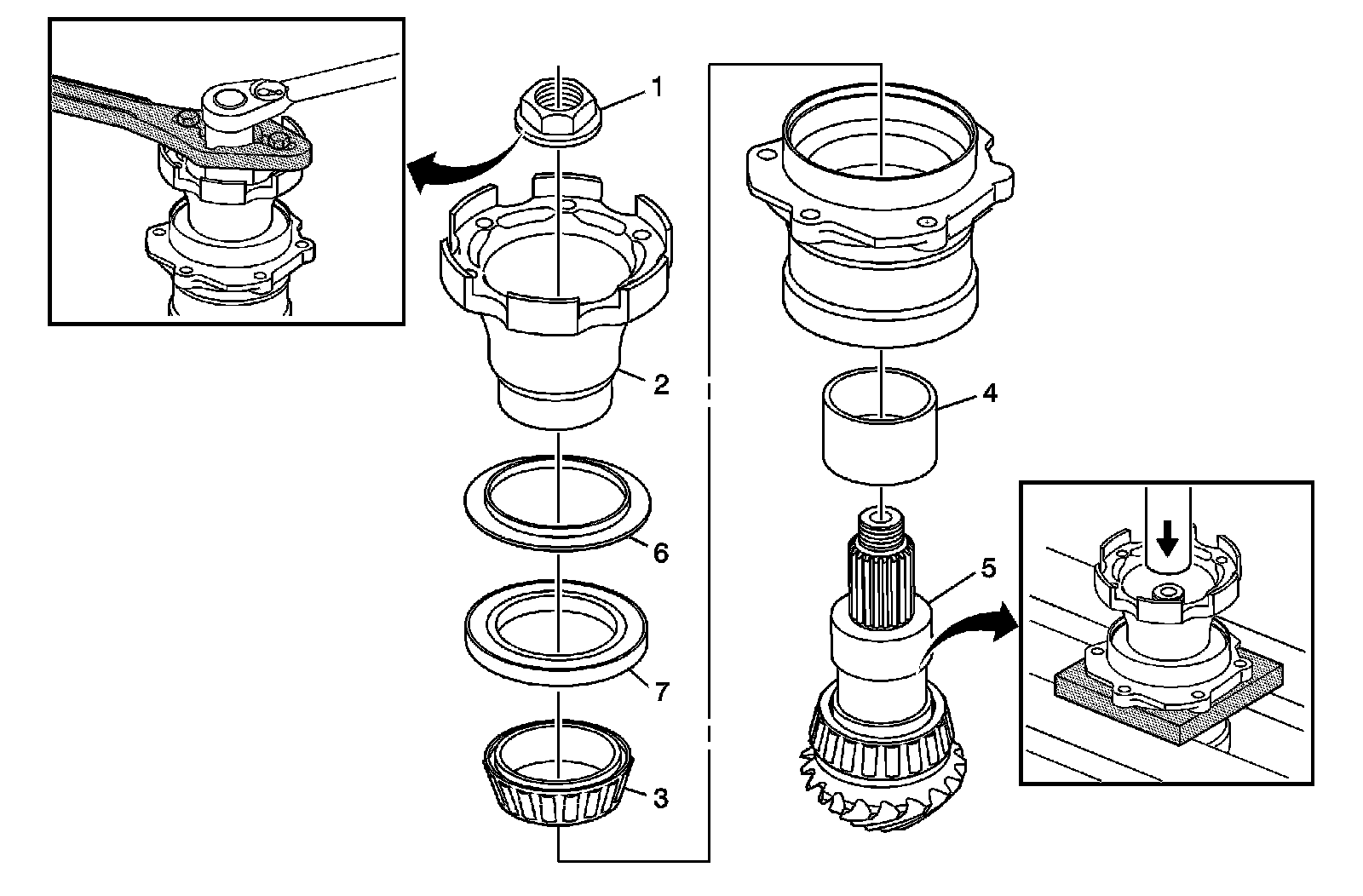

Rear Output Shaft Housing Disassembly

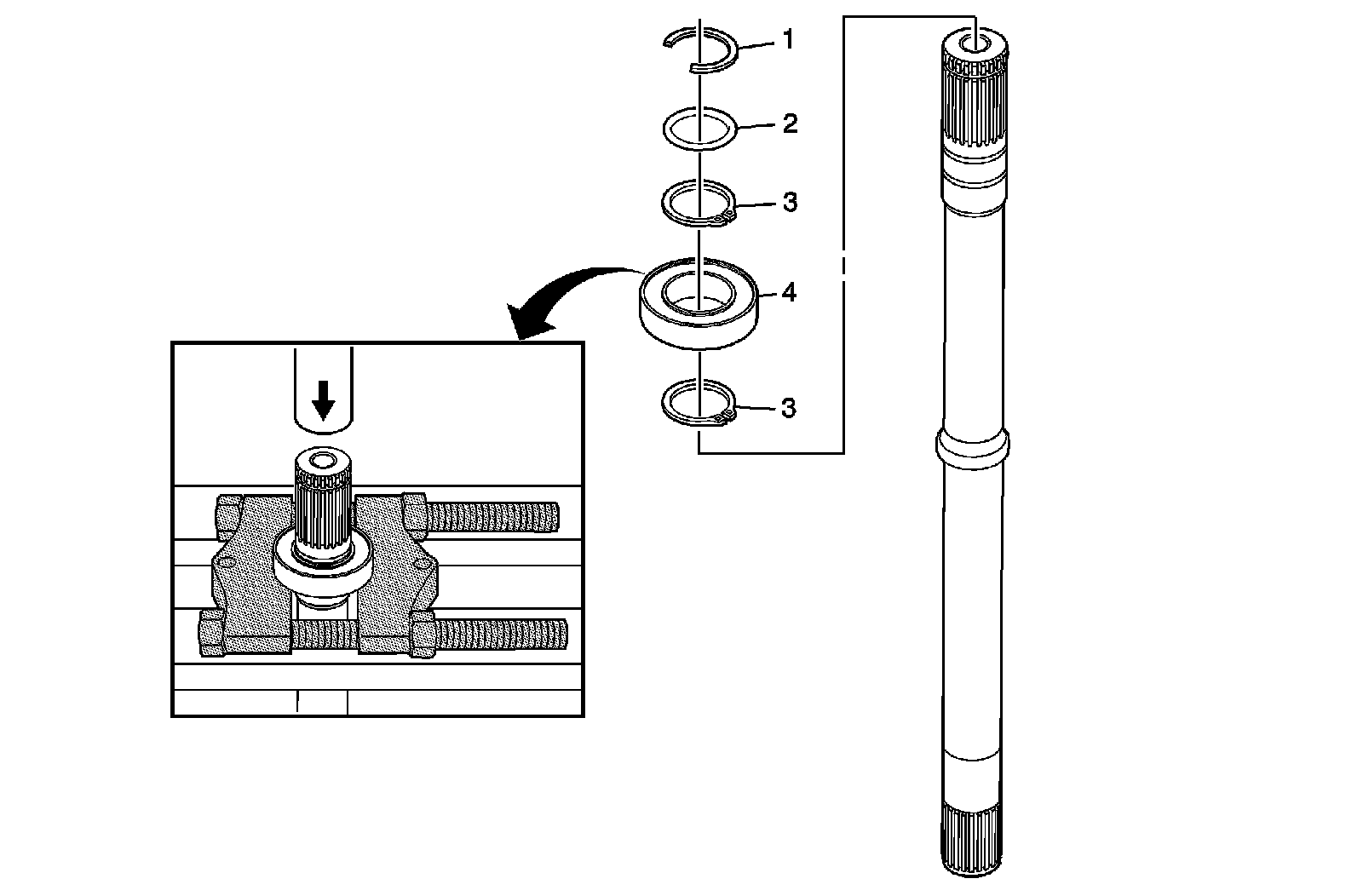

Intermediate Drive Shaft Disassembly
