Power, Ground, Serial Data and Traction Control

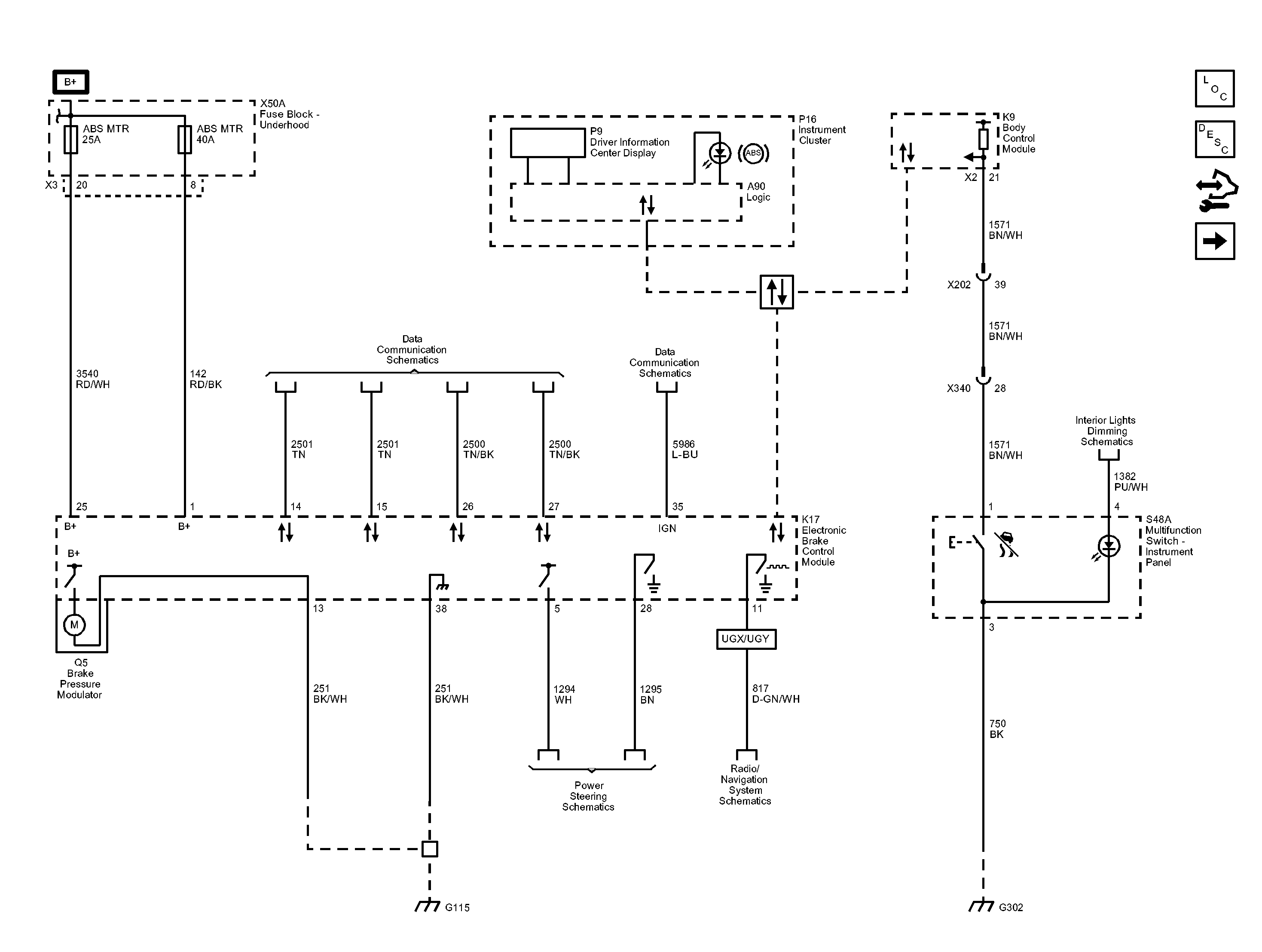

Fig 1: Power, Ground, Serial Data And Traction Control Wiring Schematic
GM2867200Courtesy of GENERAL MOTORS COMPANY
