Windshield Washer Nozzle Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the hood insulator. Refer to Hood Insulator Replacement
.
- Disconnect the windshield washer hose from the washer nozzles.
|

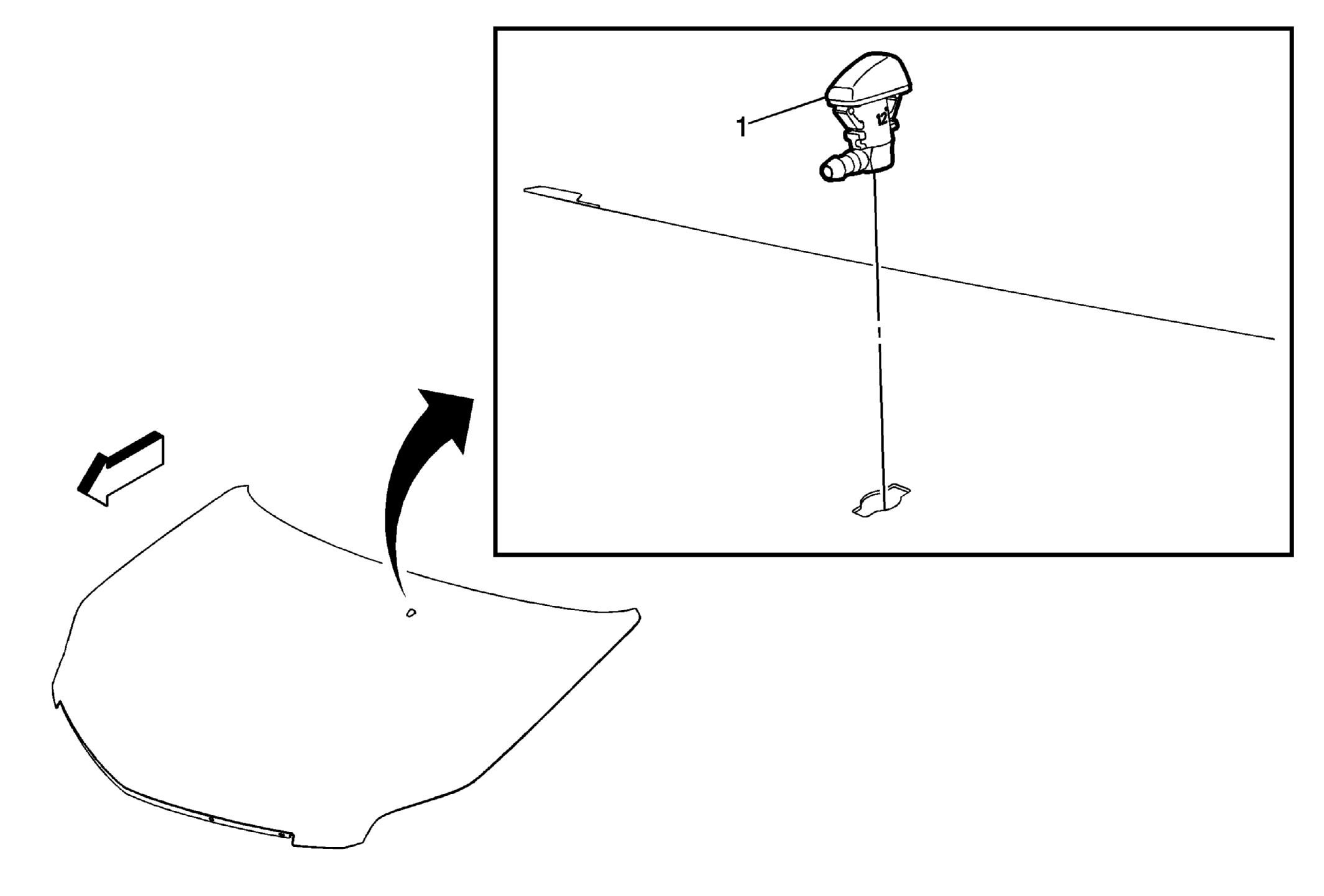

| 1 |
Windshield Washer Nozzle (Qty: 2) Procedure
- Pinch the rear retainer on the washer nozzle first followed by the front retainer.
- Push the nozzles outward from the hood in order to remove.
|
