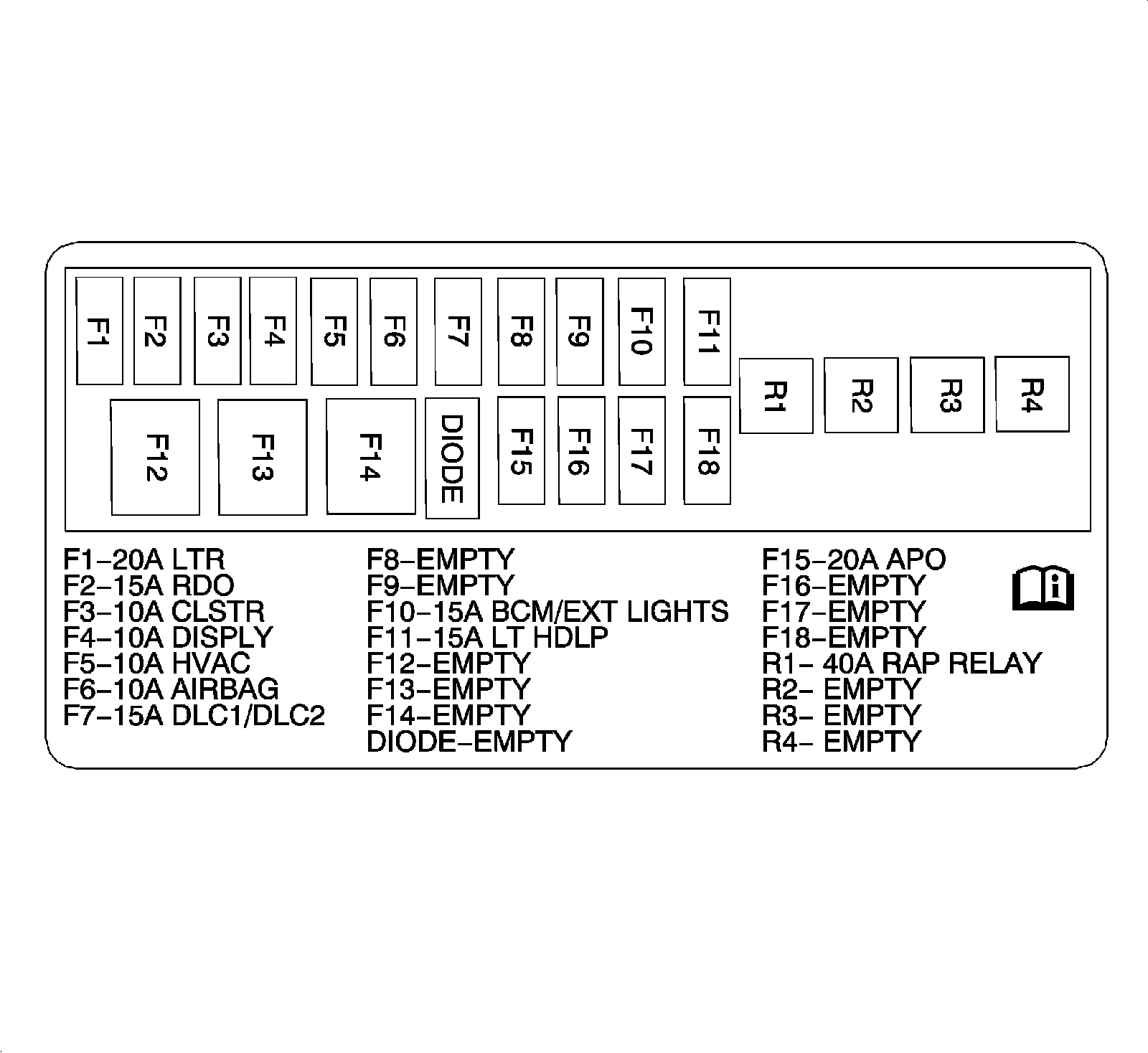

X51L Fuse Block - Instrument Panel Left Label
Electrical Center Identification Views

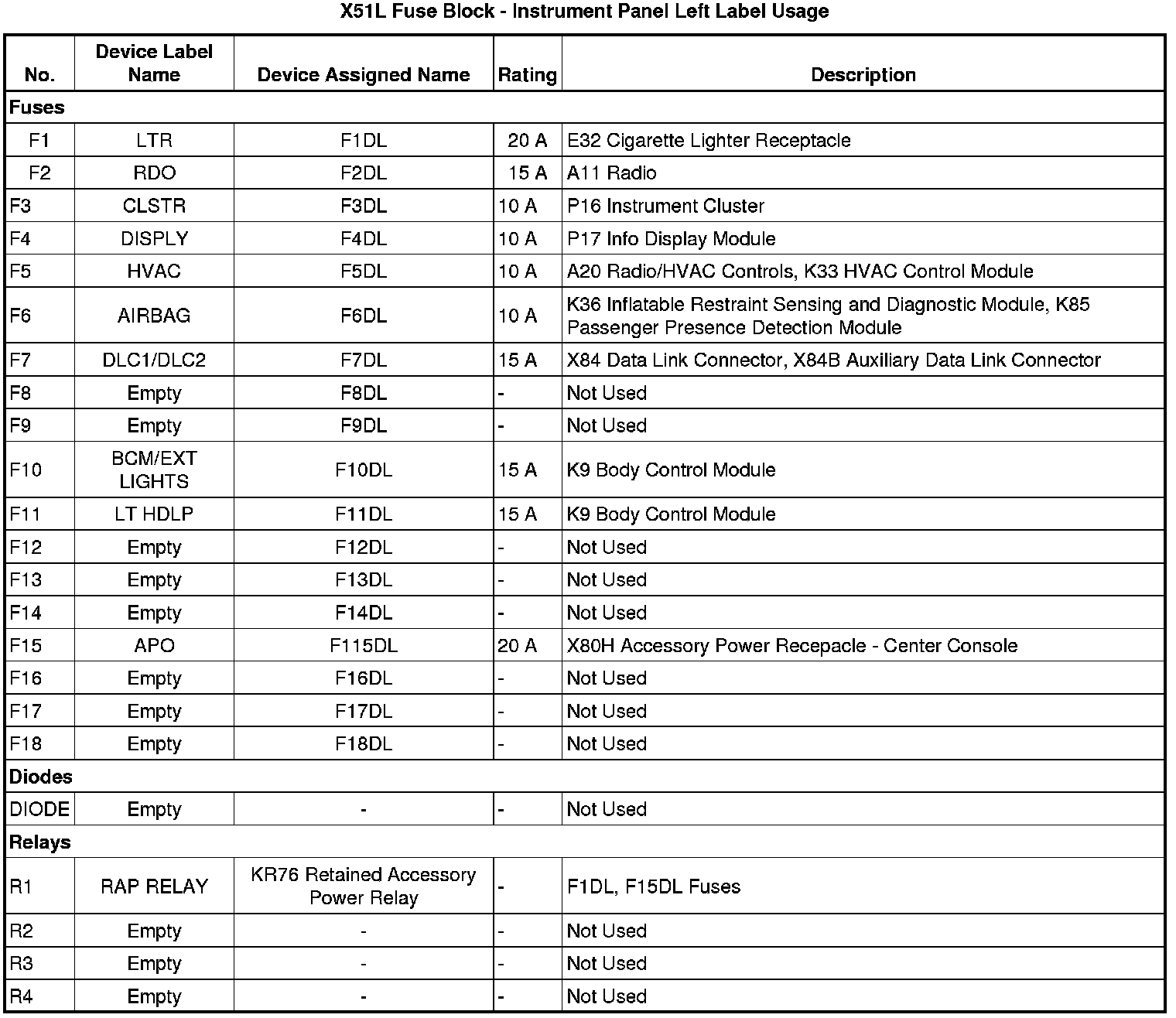

X51L Fuse Block - Instrument Panel Left Label
