Amplifier Inputs (UQA) Wiring Schematics

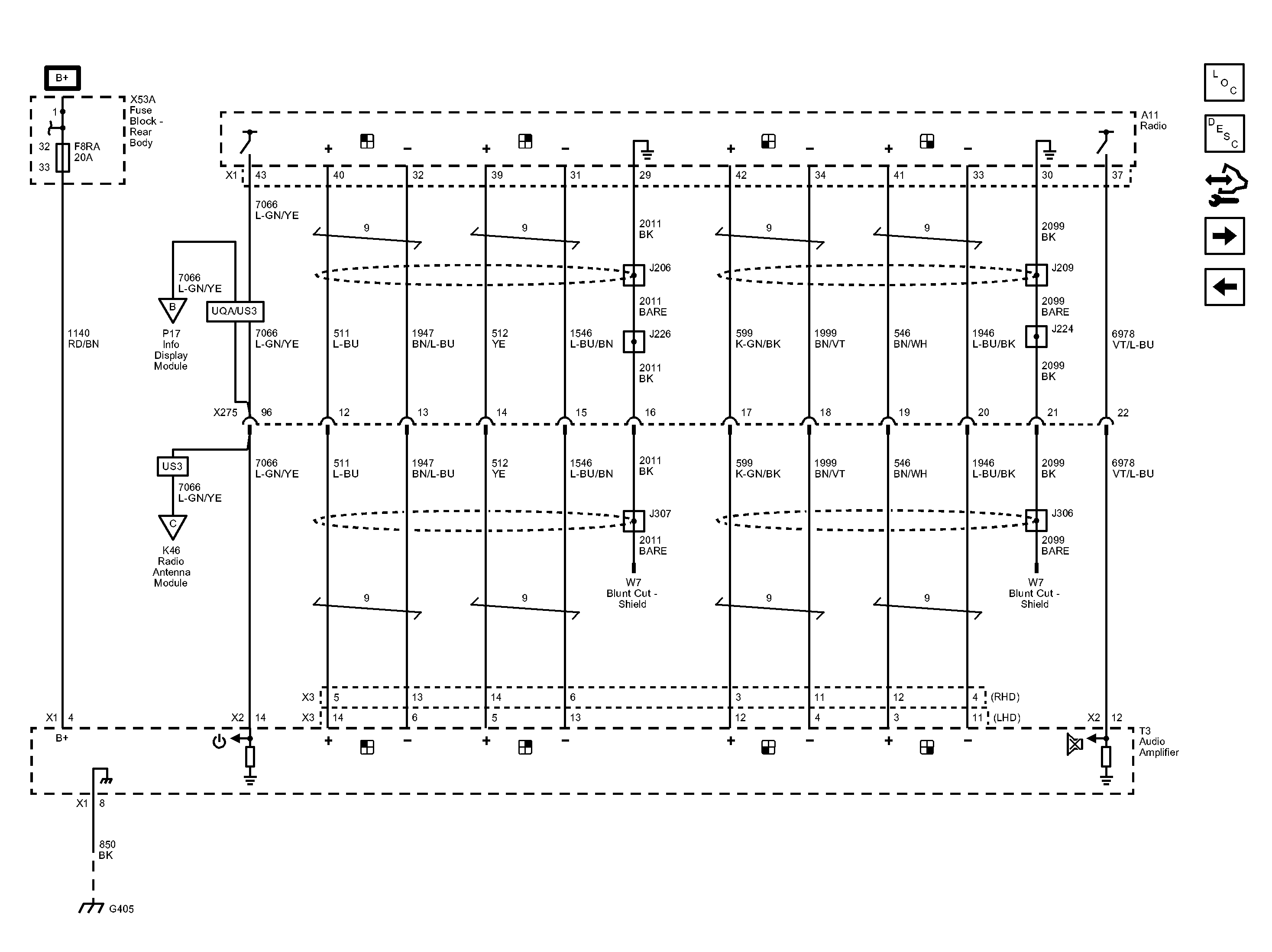

Fig 1: Amplifier Inputs (UQA) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
